Page 2

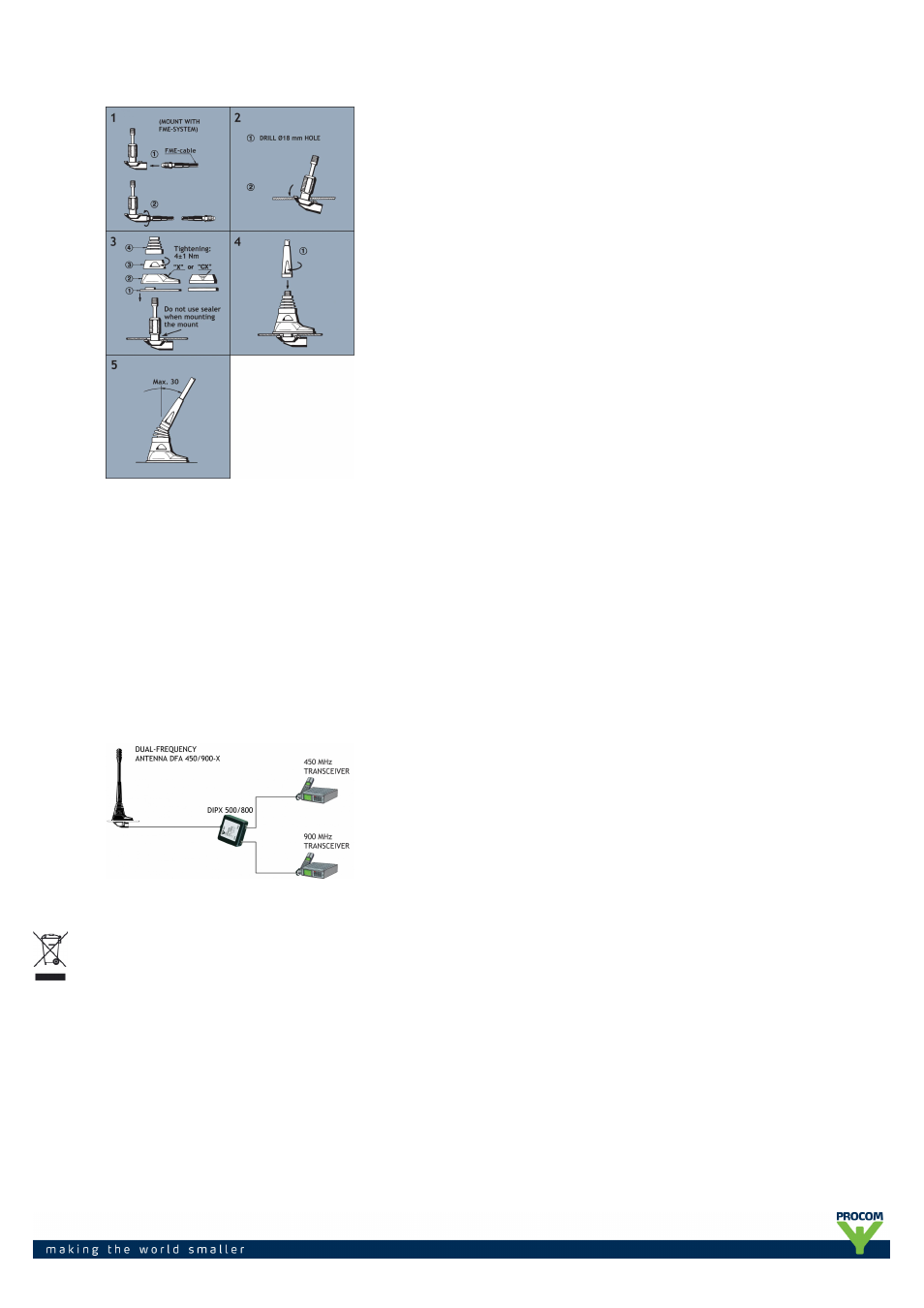

2. INSTALLATION STEPS
Do not use sealer on rubber gasket or orher places.
Several advantages are gained by using only one antenna. Only one single
hole has to be drilled into the car body, only one cabl installation has to be
run, the car appearance is not destroyed by carrying several whips and also,
it may be a particular demand that it should not be too obvious to see that
the car is equipped with transceiving equipment.
In case of operating two transceivers on one antenna at the same time, a
diplexer, type DIPX 500/800, is necessary to complete the system. (See the
coupling diagram below). The tasks of the diplexer are to protect the two
receiver inputs from being destroyed by the transmitter in the contrary
band, and to ensure a low-loss path between the transceiver and the
antenna, which is not loaded by the other branch. For further details please
see the separate data sheet on the DIPX 500/800. The diplexer fully covers
both bands and, consequently, tuning to specific frequencies is not required.
COUPLING DIAGRAM
