SB 30-88-MU1
Foldable 1 m Steel-Band Antenna with Matching Unit for
the 30 - 88 MHz Range
DESCRIPTION
Rugged, flexible and foldable steel-band whip antenna.
Provided with ”goose neck” section to arbitrary positioning of
the whip.
Specially designed for portable two-way radio equipment.
Highest quality materials ensure many years of trouble-free service.
Totally designed for tolerating tough environments.
Matching unit ensures that the antenna can cover the whole
30 - 88 MHz range.
Matching unit provided with TNC connector.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
SB 30-88-MU1 140000343
SPECIFICATIONS
ELECTRICAL
MODEL SB 30-88-MU1
ANTENNA TYPE ¼ λ shortened broad-band antenna
for portable equipment
FREQUENCY 30 - 88 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
BANDWIDTH ≥ 58 MHz @ SWR ≤ 3.0
SWR ≤ 3.0
MAX. POWER 5 W
MECHANICAL
MATERIALS Whip:
Stainless steel band covered by
weather- and shockproof plastics
Matching unit:
Housing: Polypropylene
TNC connector: Cu-nite plated brass
COLOUR Black
TOTAL HEIGHT Approx. ø22 x 1000 mm
WEIGHT Approx. 200 g
CONNECTOR TNC (male)

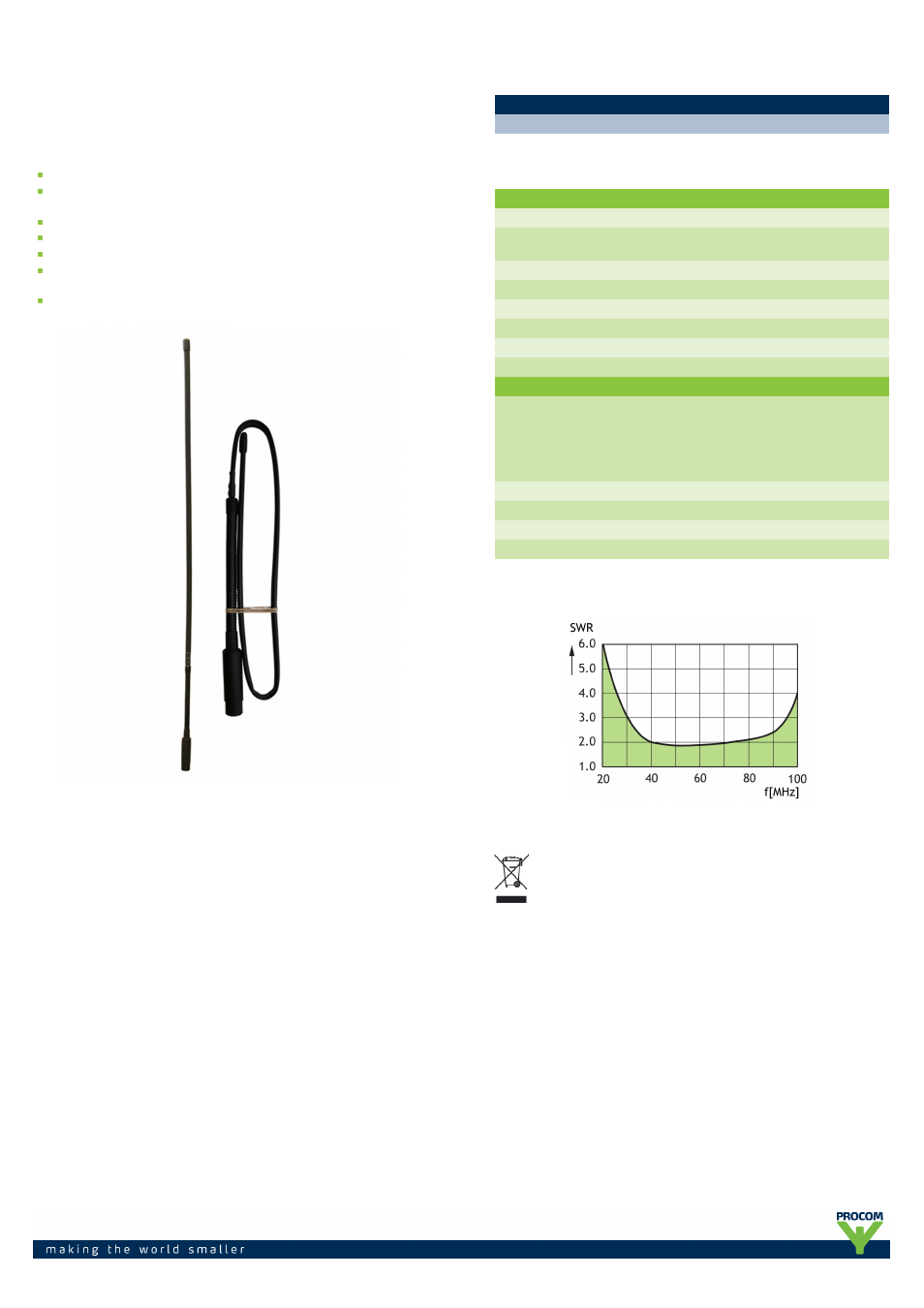

TYPICAL SWR CURVE
PROCOM A/S reserve the right to amend specifications
