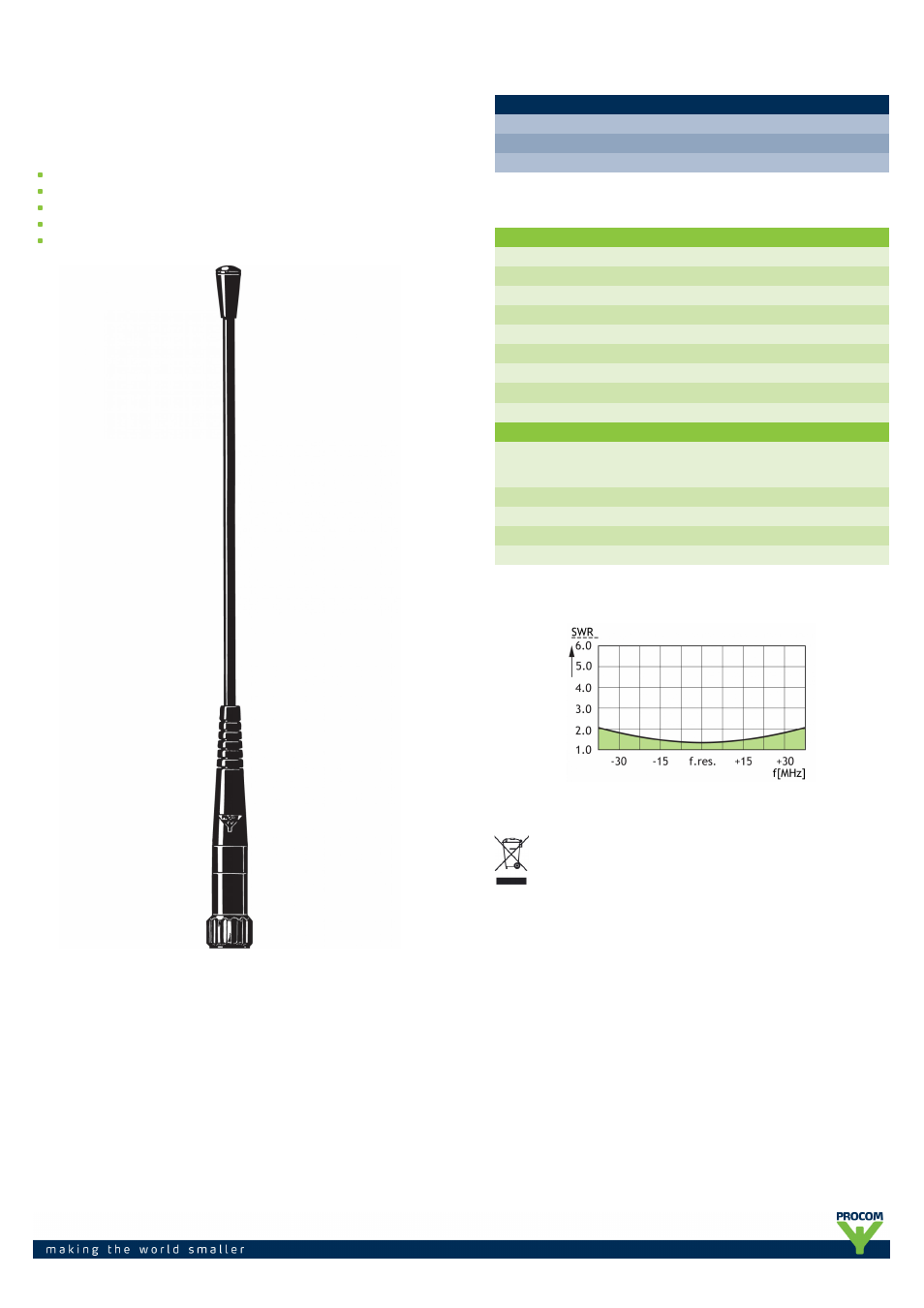

FSP 70 1/4/...-IC-F61
“StraightFlex” Antenna for ICOM Portable Equipment in the
70 cm Band
DESCRIPTION
Highly flexible, polyethylene covered StraightFlex steel wire.
Full-size ¼ λ whip.
Highest quality materials in an elegant design.
Delivered factory tuned and tested to ensure minimum SWR.
Especially designed for ICOM IC-F61 (450 MHz band).
ORDERING DESIGNATIONS
TYPE PRODUCT NO. FREQUENCY
FSP 70 1/4/s-IC-F61 140000174 380 – 430 MHz
FSP 70 1/4/l-IC-F61 140000372 400 – 450 MHz
FSP 70 1/4/h-IC-F61 140000172 420 – 470 MHz
SPECIFICATIONS
LECTRICAL
MODEL FSP 70 1/4/...-IC-F61
ANTENNA TYPE ¼ λ antenna for portable equipment
FREQUENCY 70 cm band covered by three models
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN 0 dB (equal to a ¼ λ portable antenna)
BANDWIDTH ≥ 50 MHz @ SWR ≤ 2.0
SWR < 2 when mounted directly on portable equipment
MAX. POWER 100 W
MECHANICAL
MATERIALS Polyethylene covered flexible steel wire
Weather- and shockproof plastics
Black-chromed brass
COLOUR Black
TOTAL HEIGHT Approx. 200 mm (dep. on type)
WEIGHT Approx. 15 g
CONNECTOR SMA (male) special for IC-F61
TYPICAL SWR CURVE
PROCOM A/S reserve the right to amend specifications
without prior notice.
06/12/11
