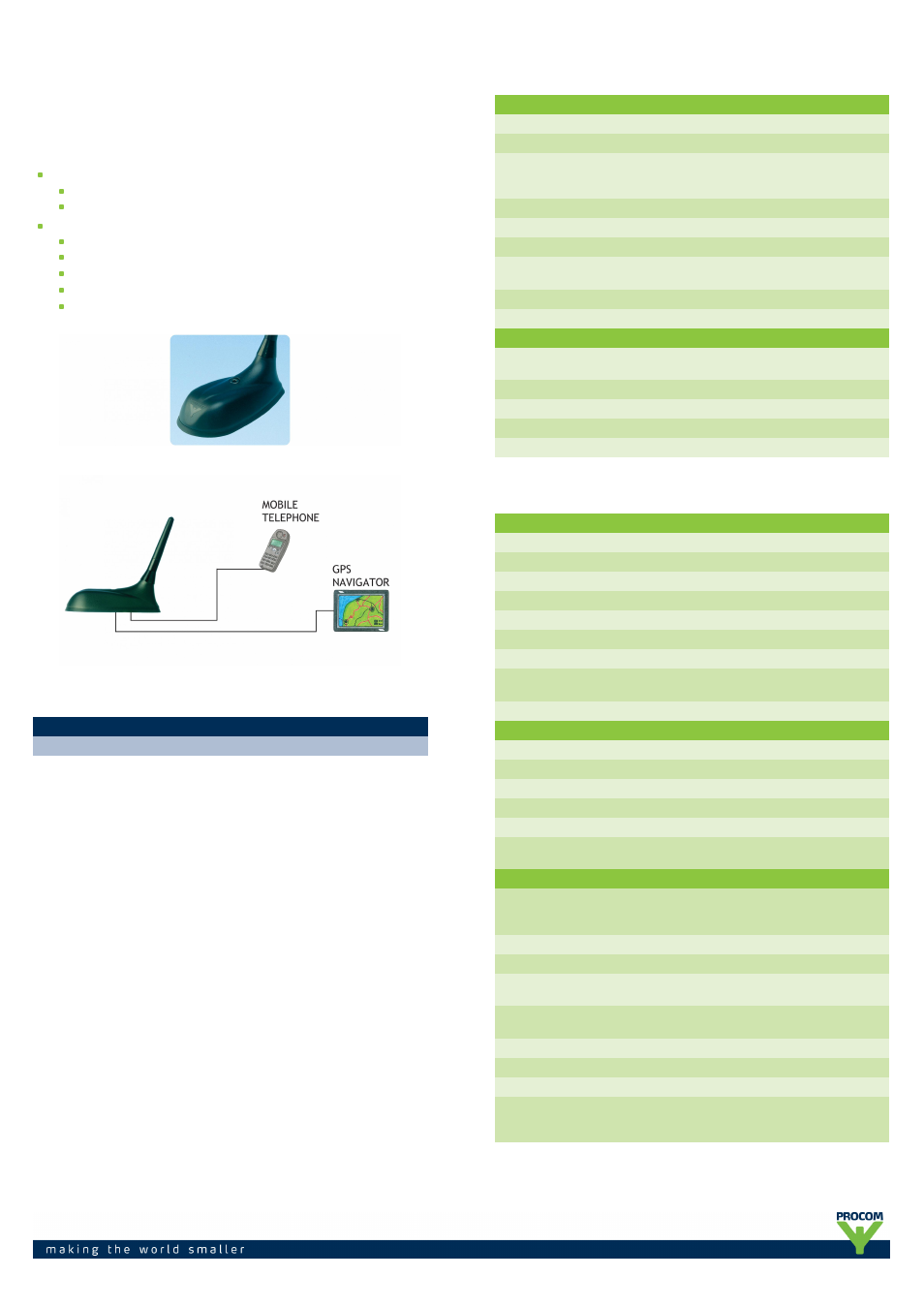

GPS-C 900/1800/UMTS
GPS Antenna with a ¼ λ Mobile Antenna for the 900 MHz,
1800 MHz and UMTS Bands
DESCRIPTION
External antenna whip mounted on the GPS-Combi mount.
Triple-frequency antenna covering EGSM-900, DCS-1800 and UMTS.
Easily removable whip for car wash.
GPS-antenna for fixed installations.
Full hemispherical coverage.
Built-in high-gain, low-noise amplifier.
Right-Hand Circular Polarization (RHCP).
5 V supply voltage (3 V respectively 12 V available on request).
DC supply via RF-connector.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
GPS-C 900/1800/UMTS 132000046
SPECIFICATIONS FOR WHIP
ELECTRICAL
MODEL GPS-C 900/1800/UMTS
ANTENNA TYPE Triple-frequency antenna
FREQUENCY 880–960 MHz (EGSM)
1710–1880 MHz (DCS)
1900–2200 MHz (UMTS)
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN Approx. 0 dB (acc. to EIA RS-329-1) on all bands
BANDWIDTH 900 MHz: ≥ 80 MHz @ SWR ≤ 1.6
1800 MHz: ≥ 170 MHz @ SWR ≤ 2.25
SWR ≤ 1.5 @ f. res.
MAX. POWER 25 W
MECHANICAL
MATERIALS Black-chromed brass
Black POM
COLOUR Black
HEIGHT Approx. 67 mm
WEIGHT Approx. 16 g
MOUNTING On the GPS-Combi mount
SPECIFICATIONS FOR GPS-COMBI MOUNT
ELECTRICAL GENERAL SPECIFICATIONS
MODEL GPS-COMBI MOUNT
ANTENNA TYPE Active patch antenna
FREQUENCY 1575 MHz (DCS)
IMPEDANCE Nom. 50 Ω
POLARIZATION Circular right-hand
COVERAGE Hemispherical
GAIN 28 dBic in axial direction (typ.)
CROSS-
POLARISATION ATT.
> 10 dB (typ.)
SELECTIVITY > 45 dB down at ± 45 MHz
BUILT-IN AMPLIFIER
GAIN > 30 dB (typ.)
NOISE FIGURE < 1 dB (typ.)
P 1dB Approx. +7 dBm
SWR (output) ≤ 2.0
SUPPLY VOLTAGE 5 ± 0.5 VDC (3 V resp. 12 V on request)
CURRENT
CONSUMPTION
Approx. 25 mA
MECHANICAL (ONLY FOR THE GPS-PART)
MATERIALS Cu-nite brass
Stainless steel
Reinforced thermoplastic
ANTENNA COLOUR Black
TEMP. RANGE -35° C →+75° C
CONNECTOR FME (male for GPS) +
FME (female for mobile antenna)
RECOMMENDED
INSTALL. TORQUE
4 ± 0.5 Nm
DIMENSIONS (H x L) Approx. 30 x 89 mm
ROOF THICKNESS Max. 2.5 mm
WEIGHT Approx. 114 g
MOUNTING ø18.0 mm dia. hole for roof thickness up to 2.0 mm
ø18.5 mm dia hole for roof thickness 2.0 - 2.5 mm
Tools for mounting included
