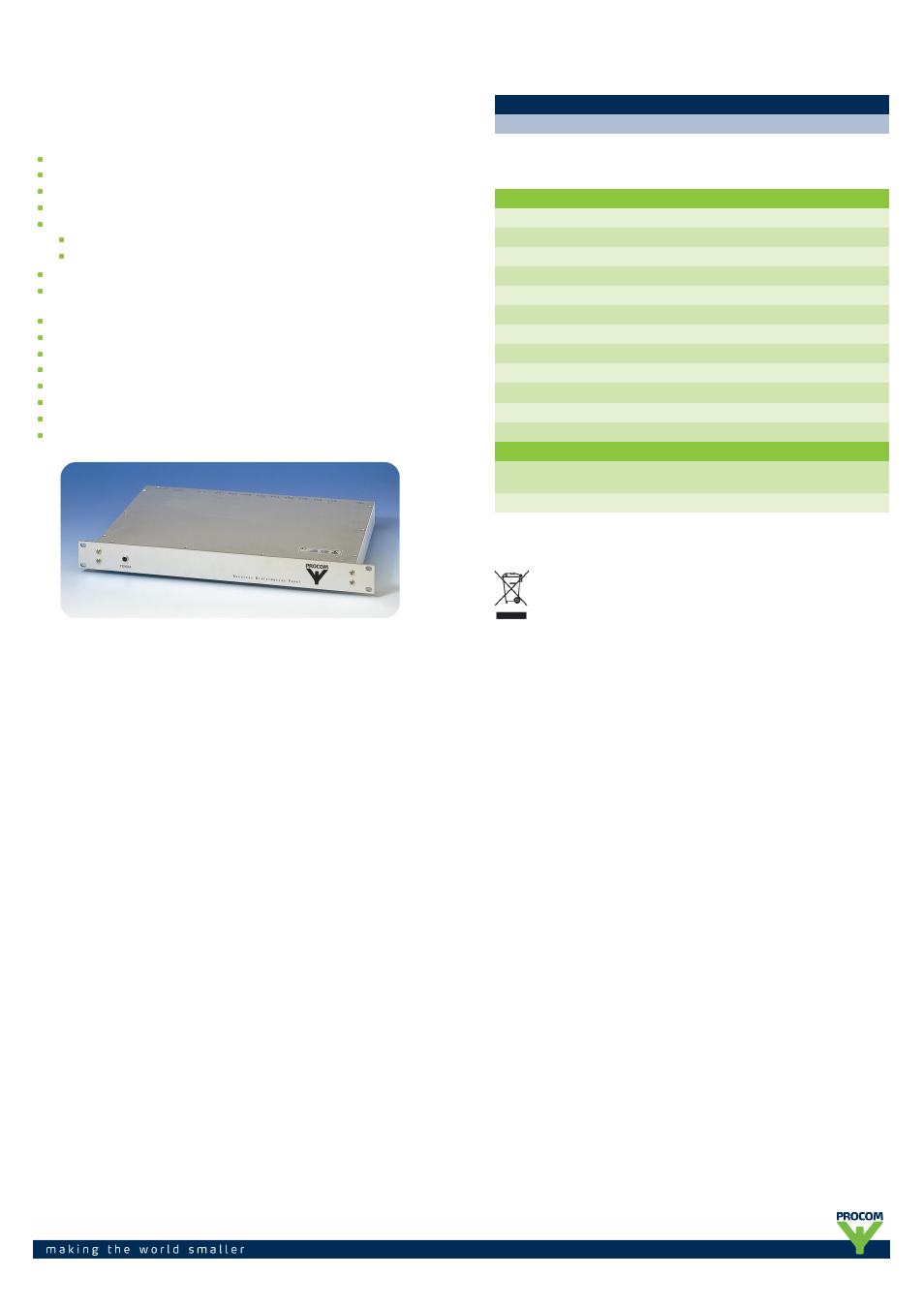

PRO-AR4G-N
19" Rack-Mountable 4-Channel RX-Multicoupler
DESCRIPTION
Only 1 HU (1 height unit HU = 44.45 mm).
Galvanically isolated 230 VAC/12 VDC power supply (24 V as option).
Automatic switching to 12 V if 230 V mains supply fails.
Wide frequency range. Covers 50 - 960 MHz.
Other versions available:
PRO-AR4G-S-N: 10 kHz – 108 MHz.
PRO-AR4G-U-N: 0.8 GHz – 3 GHz.
High isolation between the four receivers: > 20 dB.
High-dynamic range amplifier to compensate for loss in multicoupler
network.
High third-order intercept point: > +30 dBm.
Low-noise figure: < 3.5 dB for amplifier.
N-female connectors on inputs and outputs (other types available).
Available with connectors on front.
“POWER ON” lamp on front.
Preselector can be built in (BPF 4/4, BPF 2/4, BPF 70/4-HX, etc.).
230 VAC IEC connector CEE22 fitted with mains filter.
12 VDC terminal connector block fitted with noise filter.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
PRO-AR4G-N
210000127
SPECIFICATIONS
ELECTRICAL
MODEL
PRO-AR4G-N
FREQUENCY RANGE
50 – 960 MHz
GAIN INPUT TO ALL OUTPUTS
2 dB ± 2 dB
NOISE FIGURE, AMPLIFIER
< 3.5 dB @ 500 MHz
NOISE FIGURE, OUTPUTS 1-2-3-4
< 5.0 dB @ 500 MHz
OIP3
> +30 dBm
P1dB
> +18 dBm
INPUT SWR
Max. 2.5 typically < 2.0
OUTPUT SWR
Max. 2.0 typically < 1.5
ISOLATION OUTPUT TO OUTPUT
> 20 dB
ISOLATION OUTPUT TO INPUT
> 20 dB
VOLTAGE
230 V @ 0.1 A/12 V @ 1 A
MECHANICAL
DIMENSIONS (W x H x D)
19'' x 1 HU x 261 mm
(483 x 44.45 x 261 mm)
WEIGHT
Approx. 2.8 kg
PROCOM A/S reserve the right to amend specifications
without prior notice.
14/03/13
