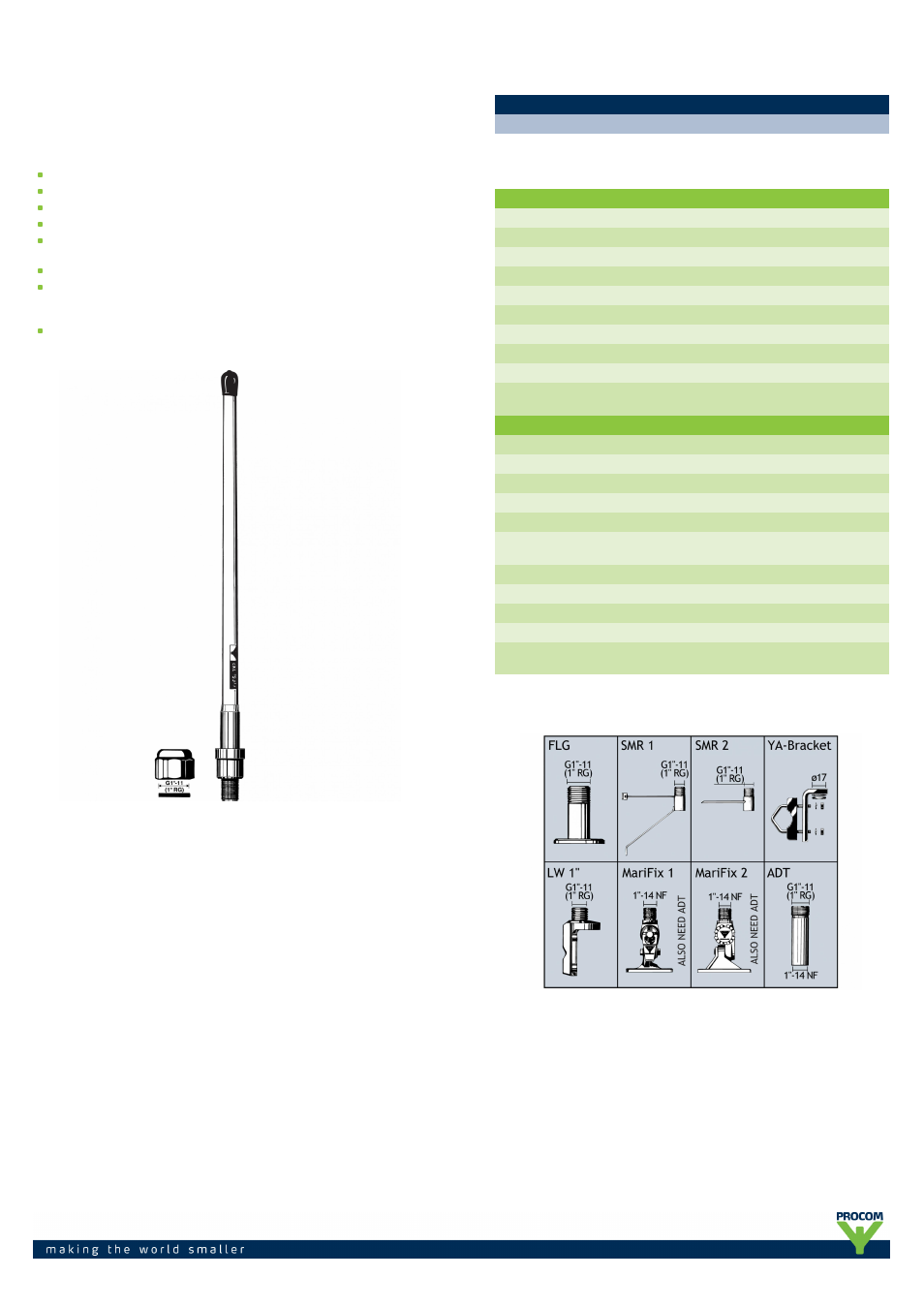

CXL 5200-6
6 dBd Omnidirectional Base Station and Marine Antenna for
the 5200 MHz Band
DESCRIPTION
Vertically polarized, omnidirectional base station and marine antenna.
Approximately 6 dBd gain.
Simple mounting using the 1" revolving nut system.
Wide variety of accessory mounting brackets available.
Highly suitable for duplex operation with large spacing between the TX
and the RX frequencies.
The antenna element is sealed in a high-quality, conical glass fibre tube.
All metal parts in the antenna are DC-grounded to reduce the noise
caused by atmospherical discharge. Consequently, the antenna shows a
DC-short across the coaxial cable.
The CXL 5200-6 is a vibration-proof, lightweight, slim-line, corrosion
resistant, modern style base station and marine antenna.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
CXL 5200-6 100000216
SPECIFICATIONS
ELECTRICAL
MODEL CXL 5200-6
ANTENNA TYPE Coaxial, collinear antenna, broad-banded
FREQUENCY 5150 - 5250 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN 8 dBi 6 dBd
BANDWIDTH ≥ 100 MHz @ SWR ≤ 2.0
SWR ≤ 2.0
MAX. POWER 100 W
ANTISTATIC PROTECTION All metal parts DC-grounded
(Connector shows a DC-short)
MECHANICAL
TEMP. RANGE -30°C → +70°C
CONNECTOR N-female
WIND SURFACE Approx. 0.007 m²
WIND LOAD Approx. 9 N @ 160 km/h
COLOUR Marine white
MATERIALS Shroud: Polyurethane-coated glass fibre
Mounting bracket: Chromed brass
TOTAL HEIGHT Approx. 420 mm
DIA. AT TOP END 13 mm
DIA. AT BOTTOM END 16 mm
WEIGHT Approx. 200 g
MOUNTING On 1” RG (G1”-11) threaded water pipe or
on optional mounting brackets
ACCESSORIES (to be ordered separately)
