5 m Self-Supporting HF Transmitting Antenna for Mast
Mounting
DESCRIPTION
This antenna is intended for transmitting and receiving in the
MF-HF range. It is designed for mast mounting with an open
feeder installation.
The antenna has very low base capacitance for best efficiency. The
power rating of the antenna depends on frequency, but it can very
safely be used with 400 W transmitters over the whole MF-HF band.
Installation is easily carried out by means of the two hot galvanized
mast clamps. The antenna has very small weight and minimum wind
surface, thereby requiring only a minimum of mast strength.
The glass fibre construction gives a stiff and self-supporting structure
with extremely good resistance against the corrosive marine
environment with UV-radiation, salt, exhaust gases and ice formation as
the primary factors.
HF 5000 is a maintenance-free and very reliable construction.
ORDERING DESIGNATIONS
TYPE NO.
PRODUCT NO.
HF 5000
110000109
SPECIFICATIONS
ELECTRICAL
MODEL
HF 5000
ANTENNA TYPE
Self-supporting antenna element
FREQUENCY
1.4 – 30 MHz
STATIC CAPACITY
Approx. 60 pF
INSULAT. RESISTANCE
Approx. 10
8
Ω
MECHANICAL LENGTH
5 m
EFF. ELECTR. LENGTH
4.40 m
MECHANICAL
TEMP. RANGE
-30° C → +70° C
CONNECTOR

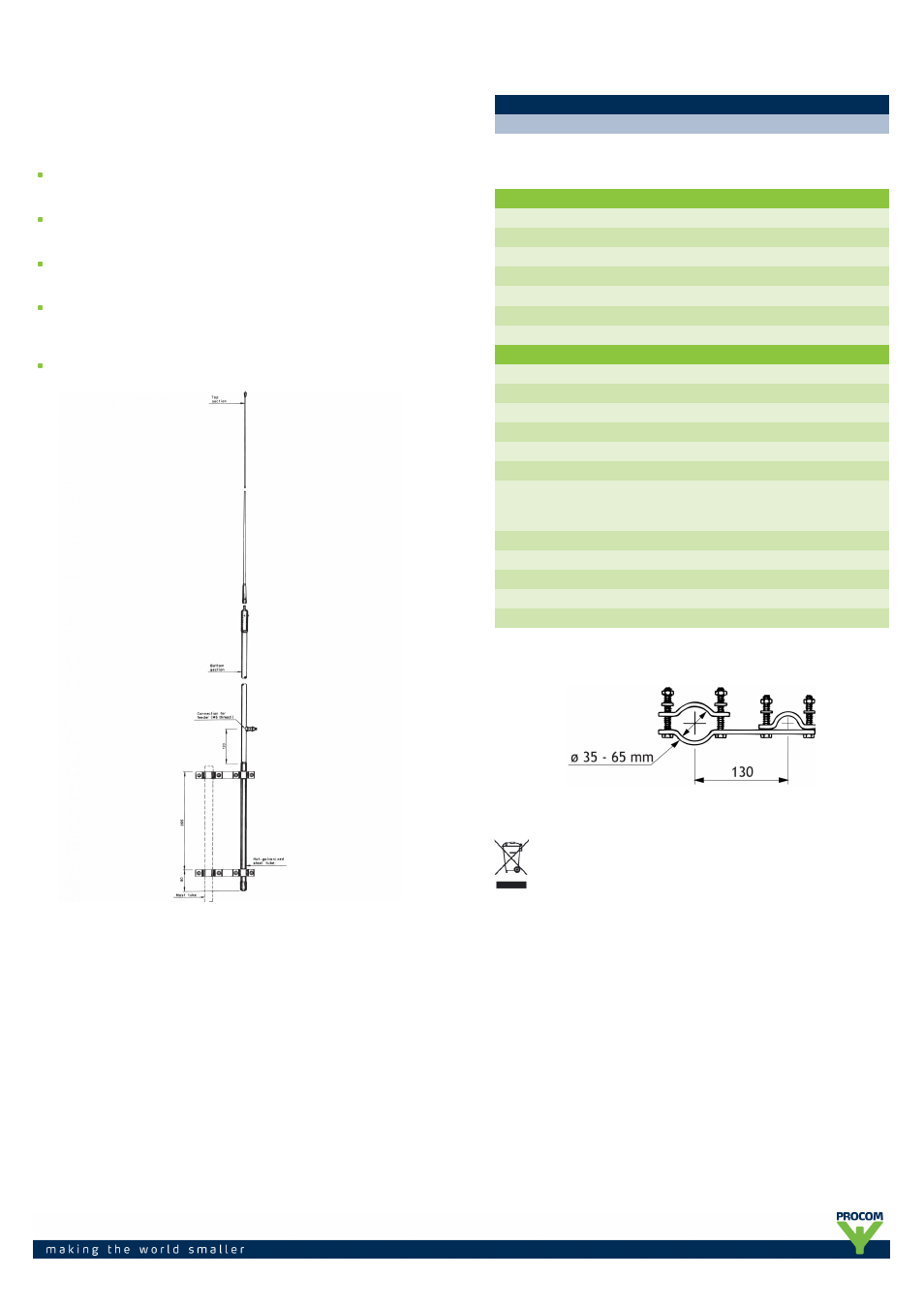

Open feeder. See drawing
WIND SURFACE
0.082 m²
WIND LOAD
106 N @ 150 km/h
MAX. WIND SPEED
200 km/h
COLOUR
Marine white
MATERIALS
Shroud : Glass fibre
Metal parts: Stainless steel and chromed brass
TOTAL HEIGHT
Approx. 5.17 m
DIA. IN TOP END
5 mm
DIA. IN BOTTOM END
20 mm
WEIGHT
2.7 kg, clamps inclusive
MOUNTING
On 35 – 65 mm dia. mast tube
CLAMP DETAILS
PROCOM A/S reserve the right to amend specifications
without prior notice.
