MOUNTING DETAILS

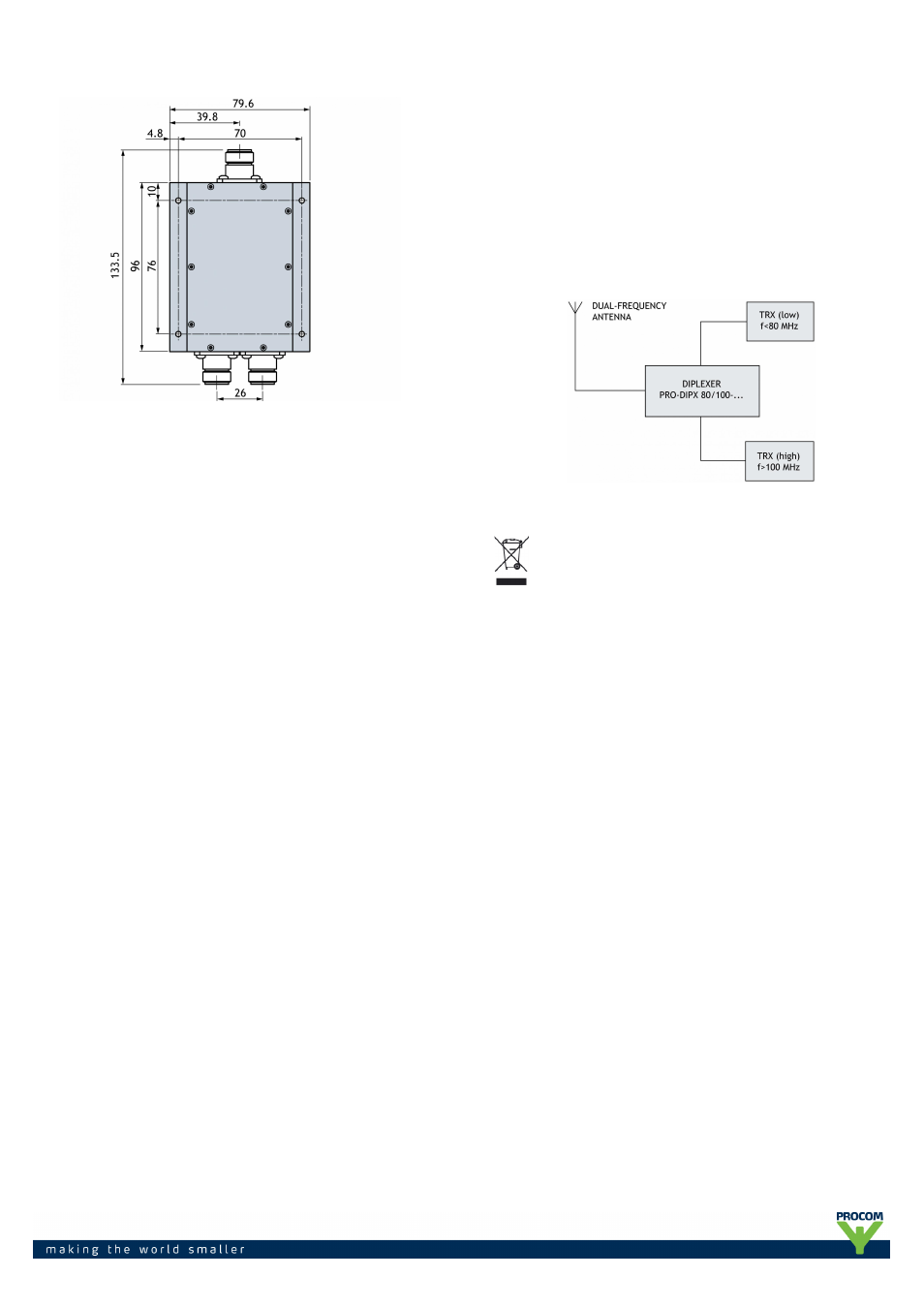

The PRO-DIPX 80/100-... makes it possible to use only one antenna for the
operation of two transceivers (one in each range). See the figure below. The
antenna must be a dual-frequency antenna, i.e. it must be resonant on the
actual frequencies in the two bands.
The transceivers may be used independently and will have no degrading
influence on each other. Typically, the diplexer is installed next to the
transceivers and only one cable is used between the diplexer and the
antenna. The diplexer is suitable both for base station and mobile use.
The main tasks of the diplexer are to protect the individual receiver input
from being destroyed by the transceiver in the contrary band and to ensure
a low-loss path between the transceiver and the antenna which is not
loaded by the other branch.
The diplexer can be operated together with any set of transceivers operating
within the 0 - 80 MHz and 100 - 960 MHz frequency bands.
