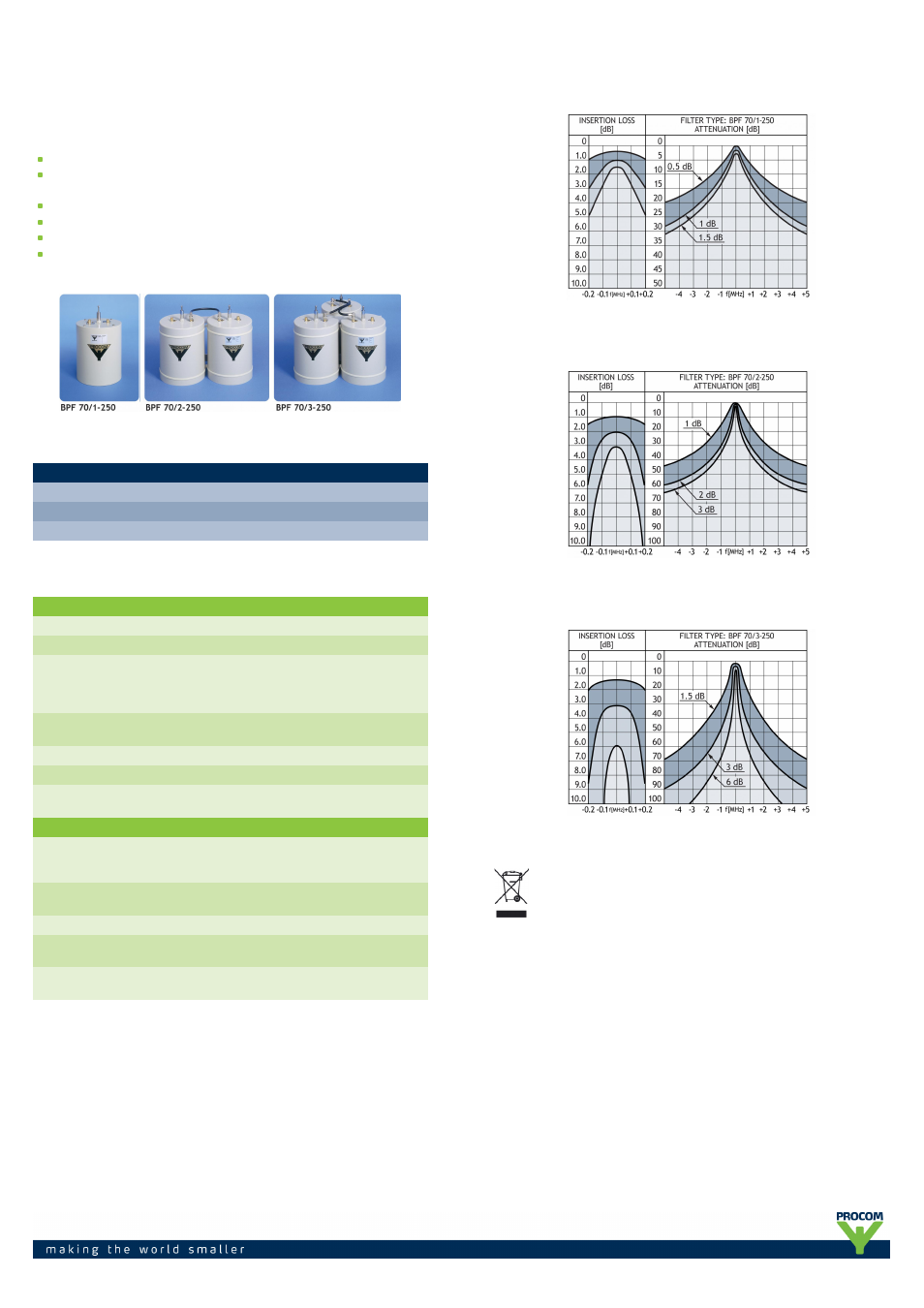

Procom BPF 70-...-250 User Manual
Bpf 70

BPF 70/...-250
Band-Pass Filters for the 450 MHz Band
DESCRIPTION
High power base station band-pass filters for the 400 – 470 MHz range.
The use of large ø250 mm cavities means a high Q,
resulting in a very narrow passband.
The large dimensions also mean a high power rating.
Unloaded Q of a single cavity is approx. 8000.
High frequency stability on temperature and power.
19” mounting brackets are included for BPF 70/2-250 and
BPF 70/3-250 models.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
BPF 70/1-250
200000955
BPF 70/2-250
200000963
BPF 70/3-250
200000957
SPECIFICATIONS
ELECTRICAL
MODEL
BPF 70/1-250
BPF 70/2-250
BPF 70/3-250
FREQ. RANGE
380 - 470 MHz
380 - 470 MHz
380 - 470 MHz
MAX. INPUT
POWER
350 W @
0.5 dB IL
150 W @
2.0 dB IL
350 W @
1.0 dB IL
150 W @
4.0 dB IL
350 W @
1.5 dB IL
150 W @
6.0 dB IL
INSERTION LOSS
Adjustable
0.5 - 2.0 dB
Adjustable
0.8 - 4.0 dB
Adjustable
1.2 - 6.0 dB
ATTENUATION
See figure 1
See figure 2
See figure 3
IMPEDANCE
Nom. 50 Ω
Nom. 50 Ω
Nom. 50 Ω
SWR
(at resonance)
< 1.5
< 1.5
< 1.5
MECHANICAL
TEMP. RANGE
RH 0-90%
non-condensing
–30° C →
+60° C
–30° C →
+60° C
–30° C →
+60° C
FREQ.
STABILITY
Approx. 1.5
ppm/° C
Approx. 1.5
ppm/° C
Approx. 1.5
ppm/° C
CONNECTORS
N-female
N-female
N-female
DIMENSIONS
ø250 x
400 mm
L:250 x W:500 x
H:400 mm
L:250 x W:750 x
H:400 mm
WEIGHT
Approx.
2.8 kg
Approx.
5.2 kg
Approx.
9.6 kg
TYPICAL RESPONSE CURVES
Figure 1
TYPICAL RESPONSE CURVES
Figure 2
TYPICAL RESPONSE CURVES
Figure 3
PROCOM A/S reserve the right to amend specifications
without prior notice.
21/03/12
