Procom MB 2000 - Manual

MB 2000
Stainless Steel Angle Bracket for Fixation of GPS 2000
Antennas
DESCRIPTION
Angle bracket for fixation of GPS 2000 antennas.
Application 1: Fixation on vertical structures such as:
– ship’s masts, cabins and rails
– house roof ends.
(Fixation by means of screws, bolts or rivets (not supplied)).
Application 2: Fixation on vertical tubes (10 – 40 mm dia.)
(Fixation by means of steel binders (through the oblong holes)). (Not
supplied).

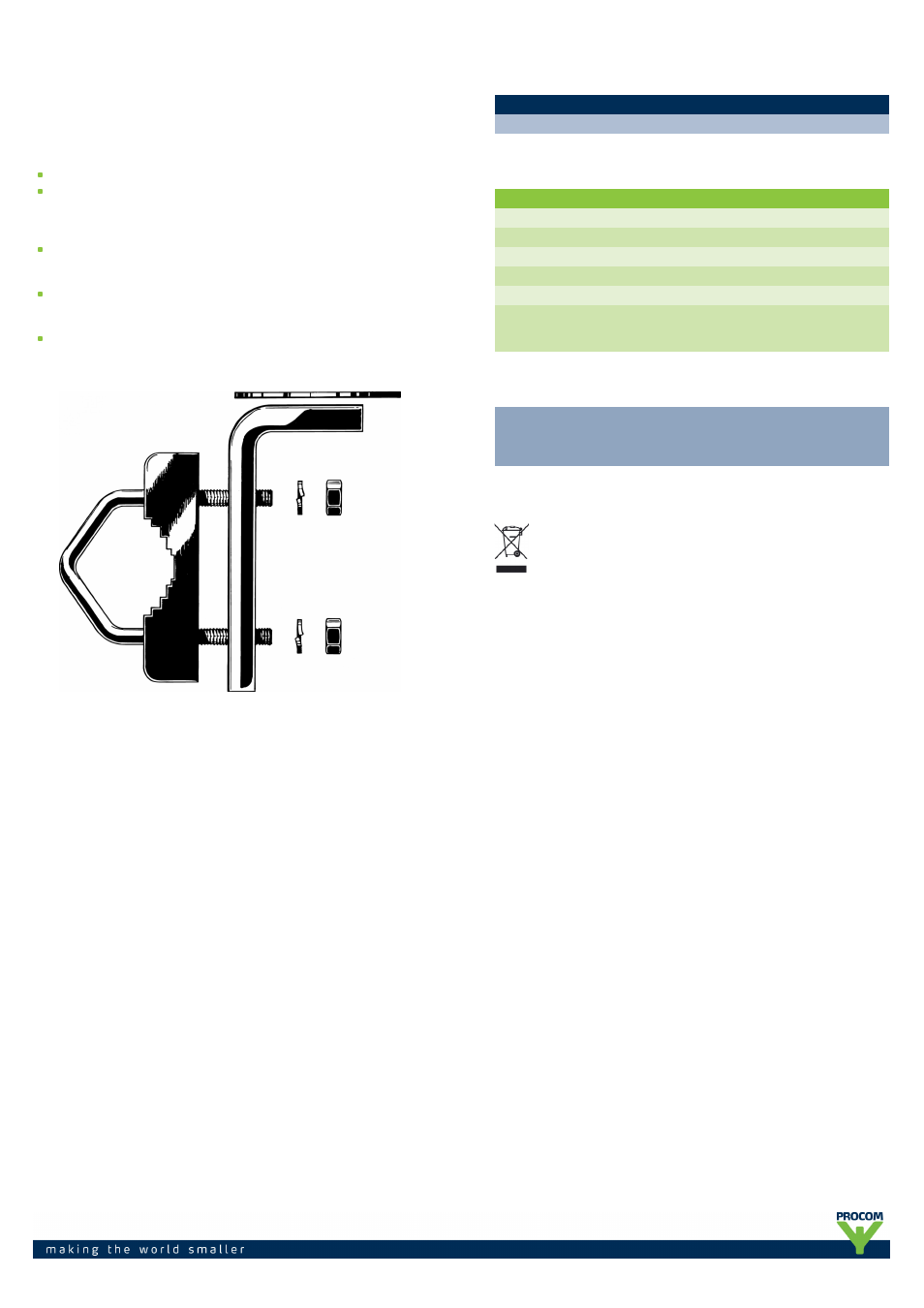

Application 3: Fixation on horizontal tubes (20 – 40 mm dia.) such as:
– push and pulpit, rails and mast yards.
(Fixation by means of the supplied U-bolt fittings).
The antenna is fixed to the mounting bracket by means of the supplied
hexagon nut and serrated lock washer which is screwed onto the
antenna connector.
ORDERING DESIGNATIONS
TYPE NO. PRODUCT NO.
MB 2000 110000016
SPECIFICATIONS
ELECTRICAL
MODEL MB 2000
APPLICATION Angle bracket for antenna fixation
MATERIAL
Acid-proof, polished stainless-steel
WEIGHT Approx. 200 g
DIMENSIONS See below
MOUNTING
On vertical surfaces with rivets, bolts or screws.
On vertical tubing (10 – 40 mm dia.) with steel binders. On
horizontal tubing (20 – 40 mm dia.) with U-bolt.
Please Note
Please note that an antenna should always be mounted as high and as
unobstructed as possible. Objects in the vicinity of the antenna, especially
parallel metallic parts (other antennas, wires etc.) may have considerable
degrading influence on the SWR and the radiation pattern of the antenna.
PROCOM A/S reserve the right to amend specifications
without prior notice.
11/11/11
