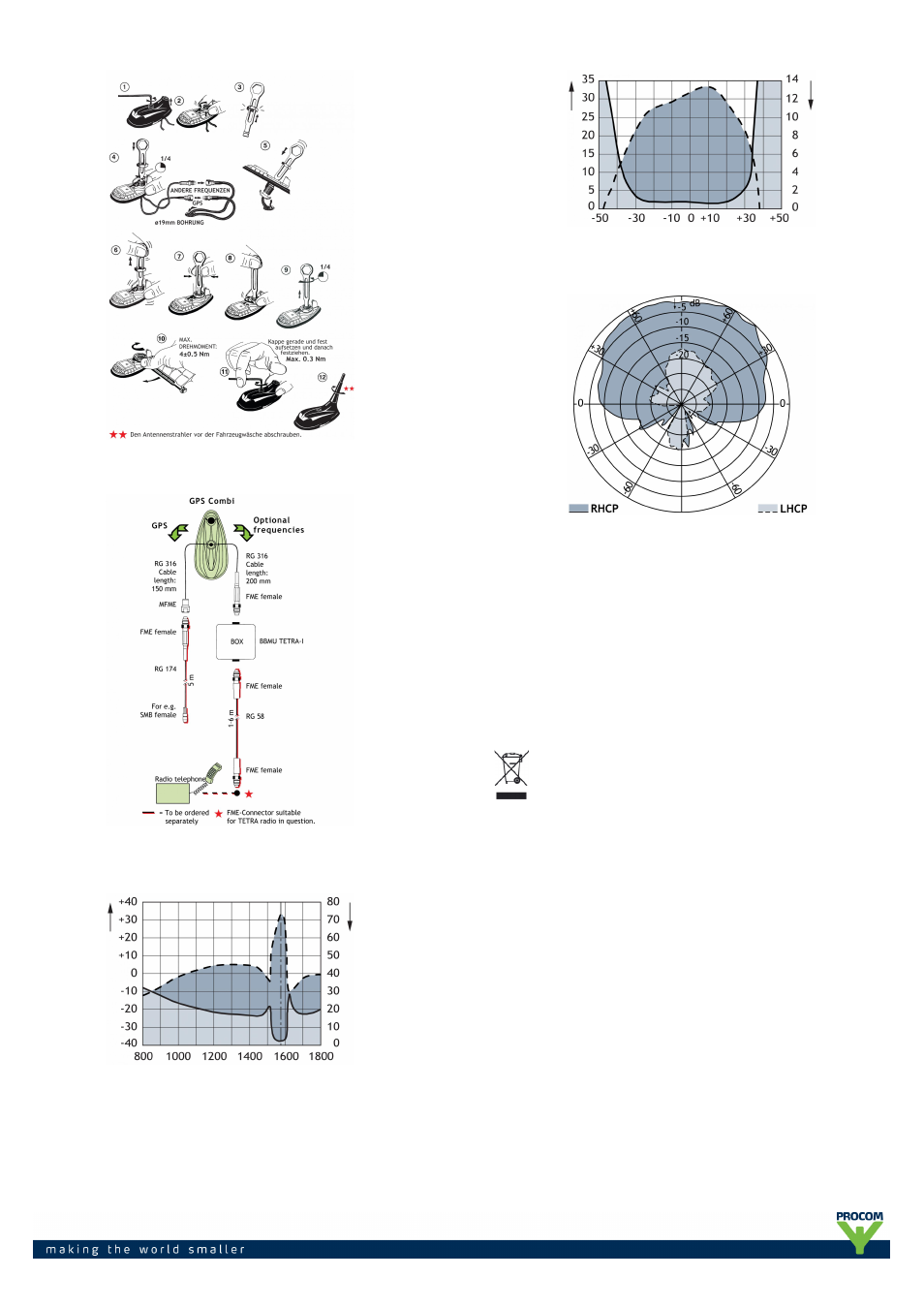

CABLE MOUNTING
Do not use sealer on rubbergasket or other places.
GAIN AND NOISE FIGURE (DB)
f. MHz
GAIN AND NOISE FIGURE AROUND GPS CENTER FREQUENCY (dB)
f. MHz
VERTICAL RADIATION PATTERN
TUNING
SWR 3000 Analyzer with built-in signal generator and graphic display range
of measurement 30-2700 MHz.
Tune the SWR in on the desired centre frequency and suitable spacing (for
instance 30 MHz). Adjust C1 till the SWR curve emerges on the display.
Adjust C2 till the best possible SWR minimum is reached on the required
frequency. Fine-tune the SWR minimum and the bandwidth step by step by
means of C1 and C2.
PROCOM A/S reserve the right to amend specifications
without prior notice.
21/08/13
