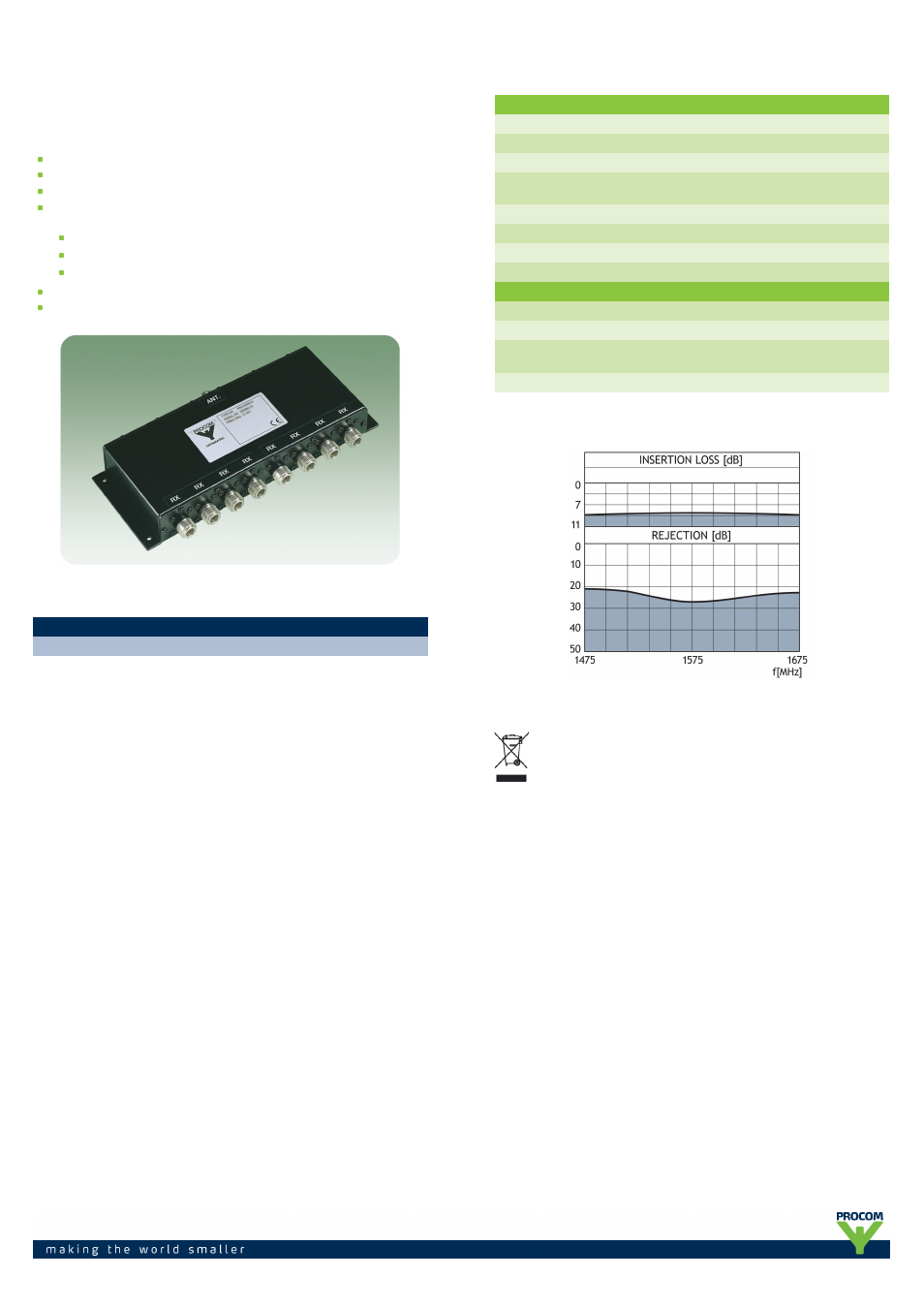

PRO-RPS-8-GPS-N
8-Channel RX Power Splitter
DESCRIPTION
Passive receiver power splitter.
Large frequency range. 1500 MHz to 1650 MHz.
High isolation between outputs. > 20 dB.
To be used where RF-signals, special GPS-signals shall be divided or
combined:
more receivers connected to the same coaxial cable
more GPS-antennas on the same coaxial cable
spectrum analyzer and GPS-receiver on the same coaxial cable.
N-female on all ports. (Other connector types on request).
DC-pass on all ports. (Other possibilities on request).
ORDERING DESIGNATIONS
TYPE NO. PRODUCT NO.
PRO-RPS-8-GPS-N 210000774
SPECIFICATIONS
ELECTRICAL
MODEL PRO-RPS-8-GPS-N
FREQUENCY RANGE 1500 - 1650 MHz
INSERTION LOSS [S12] 9.5 dB ± 0.5 dB
ISOLATION OUTPUT TO
OUTPUT
Min. 20 dB typ. 23 dB
INPUT SWR Max. 1.5 typ. < 1.3
OUTPUT SWR Max. 1.5 typ. < 1.3
POWER HANDLING Max. 0.5 W each port
DC-PASS Yes - all ports
MECHANICAL
TEMP. RANGE -30° C → +60° C
CONNECTORS N-female
DIMENSIONS (L x W x H) 138 (incl. conn.) x 255 (incl. flanges) x 35
mm
WEIGHT 550 g
INSERTION LOSS & ISOLATION
PROCOM A/S reserve the right to amend specifications
without prior notice.
23/08/13
