DIPX 900/1800-7/16
Diplexer for the 820 - 960 MHz and 1700 - 1900 MHz
Ranges
DESCRIPTION
Diplexer for combining or splitting the two ranges 820 - 960 MHz and
1700 - 1900 MHz.
Extremely low insertion loss.
7/16 DIN connectors on all terminals.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
DIPX 900/1800-7/16 200000745
SPECIFICATIONS
ELECTRICAL
MODEL DIPX 900/1800-7/16
FREQUENCY RANGES Low port: 820 - 960 MHz
High port: 1700 - 1900 MHz
MAX. INPUT POWER 150 W each port
PORT WIDTH Low port: max. 70 MHz
High port: max. 135 MHz
INSERTION LOSS IN PASS-BANDS Low port: < 0.2 dB
High port: < 0.3 dB
ATTENUATION IN STOP-BANDS Low port: > 55 dB
High port: > 45 dB
IMPEDANCE 50 Ω on all terminals
MECHANICAL
TEMP. RANGE –30° C → +70° C
FREQUENCY STABILITY Approx. 5 ppm/° C
CONNECTORS 7/16 DIN-connectors on all ports
DIMENSIONS (W x H x D) 240 x 160 x 202 mm
WEIGHT Approx. 2 kg

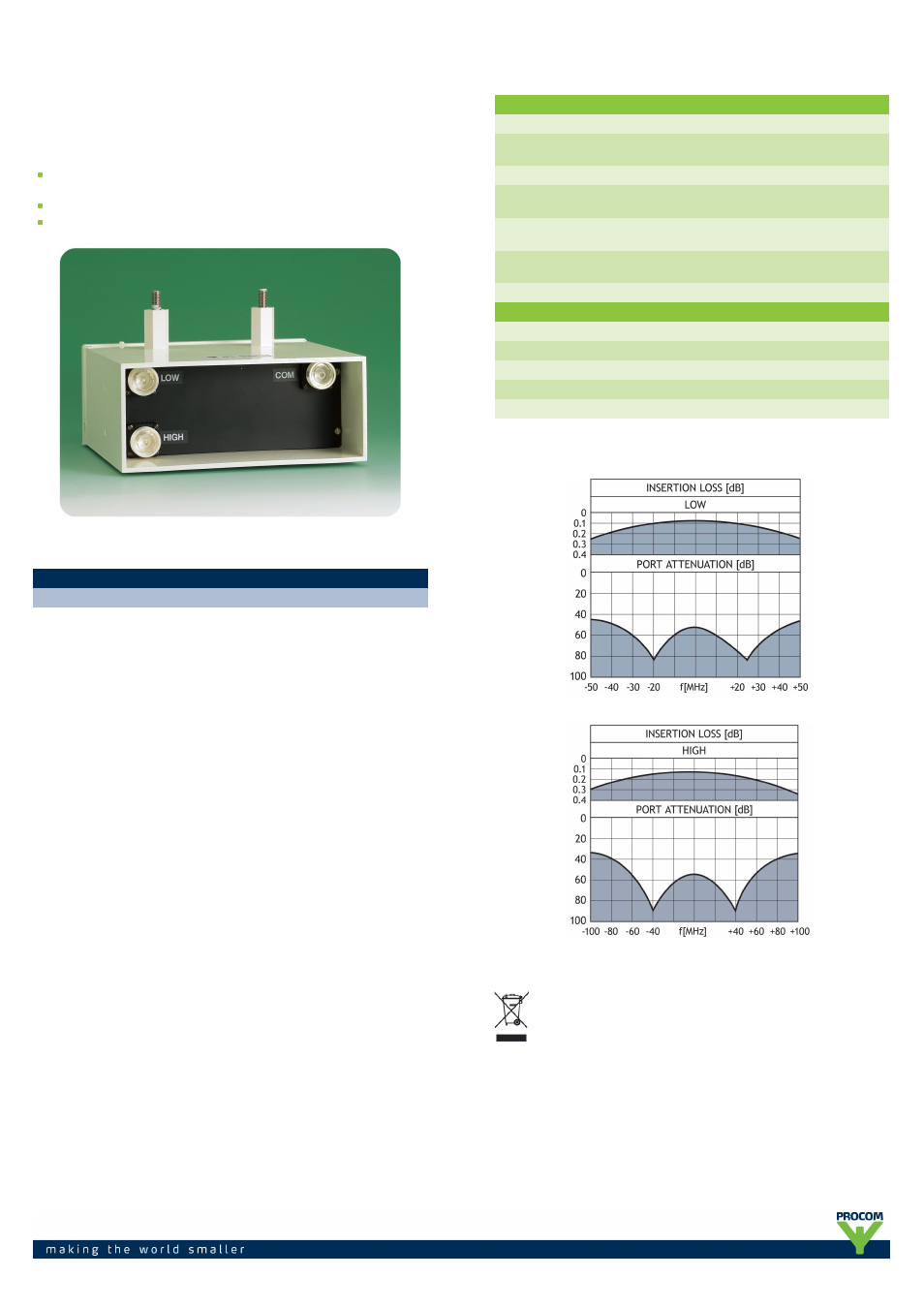

TYPICAL RESPONSE CURVES
PROCOM A/S reserve the right to amend specifications
without prior notice.
