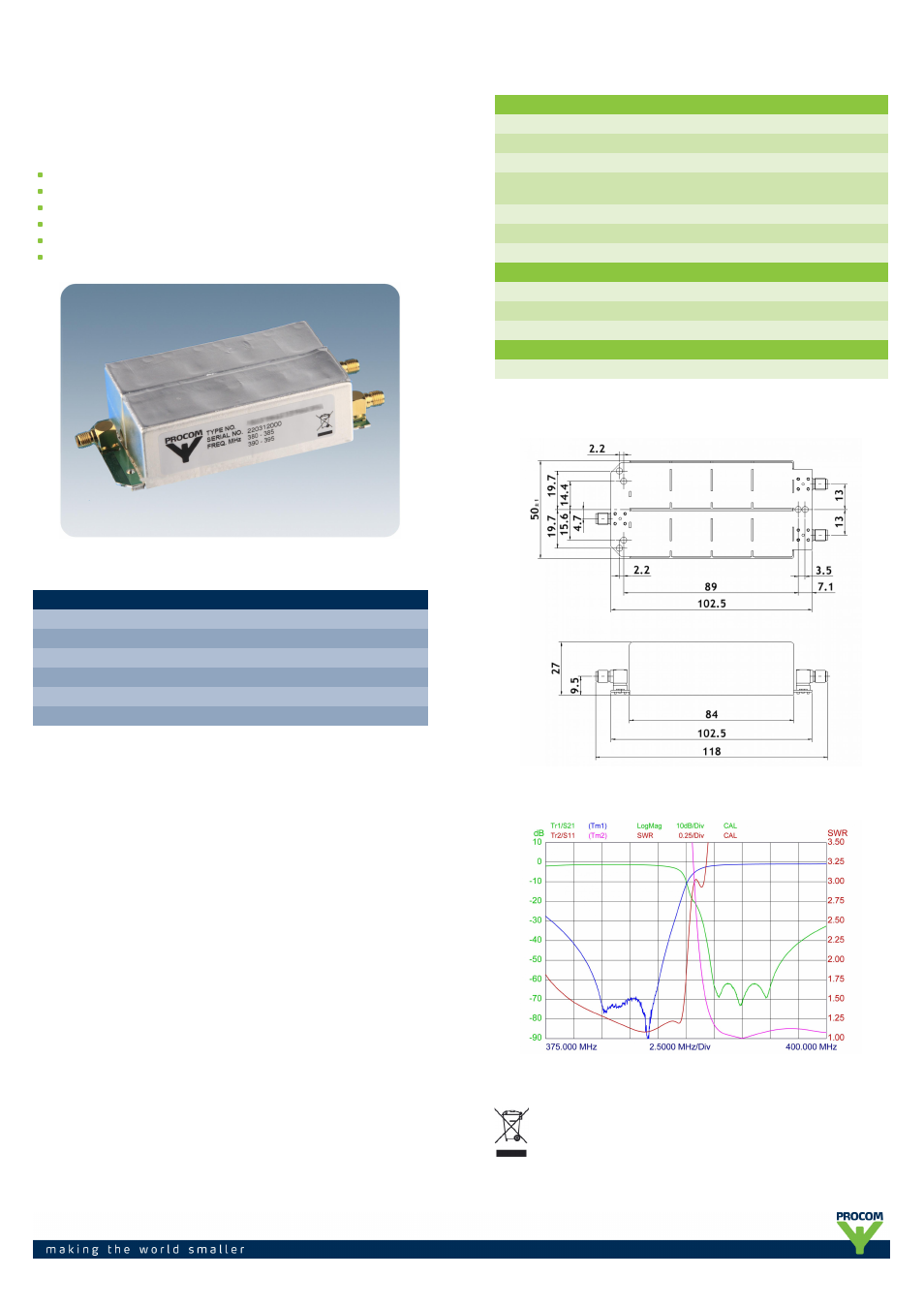

Procom MIX-70-44-pr-tetra User Manual
Mix 70/44-pr-tetra

MIX 70/44-PR-TETRA
Ultra-Compact Built-in type Duplexer for TETRA Cellular
Radio Telephones
DESCRIPTION
Miniaturized, light-weight, component-sized duplexer.
Ideal for integration in compact radio telephones.
Four cavities in TX-branch, four cavities in RX-branch.
Low insertion loss and temperature drift.
Rugged mechanical design.
Fully environmentally tested.
ORDERING DESIGNATIONS
TYPE
TX MHZ
RX MHZ
PRODUCT NO.
MIX 70/44-PR-TETRA-1-SMA(f)
380 - 385
390 - 395
200000629
MIX 70/44-PR-TETRA-2-SMA(f)
385 - 390
395 - 400
200002353
MIX 70/44-PR-TETRA-3-SMA(f)
410 - 415
420 - 425
200002354
MIX 70/44-PR-TETRA-4-SMA(f)
415 - 420
425 - 430
200002375
MIX 70/44-PR-TETRA-5-SMA(f)
450 - 455
460 - 465
200002376
MIX 70/44-PR-TETRA-6-SMA(f)
455 - 460
465 - 470
200002377
SPECIFICATIONS
ELECTRICAL
MODEL
MIX 70/44-PR-TETRA
MAX. INPUT POWER
25 W
BRANCH
Low → Ant.
High → Ant.
INSERTION LOSS IN PASSBAND
≤ 2.0 dB
(typ. 1.8 dB)
≤ 2.0 dB
(typ. 1.8 dB)
ATTENUATION IN STOPBAND
> 60 dB
> 60 dB
IMPEDANCE
Nom. 50 Ω
SWR (All ports)
≤ 1.5
MECHANICAL
CONNECTIONS
SMA-female
DIMENSIONS (L x W x H)
118 (incl. conn.) x 51 x 27 mm
WEIGHT
Approx. 120 g
ENVIROMENTAL
TEMP. RANGE
–30° C → +60° C
FUNCTIONAL DIMENSIONS
TYPICAL RESPONSE CURVES
PROCOM A/S reserve the right to amend specifications
without prior notice.
08/01/14
