INSTALLATION
This antenna is supplied with type Z-mount. The whip is fastened to the
mount by means of our standard ball-joint and wing screw system. The
adjustable ball-joint ensures that the whip can always be mounted in a
vertical position independent of the angle of the installation spot.
The Z-mount is particularly well suited for mounting on car-roofs because of
its ability to be installed exclusively with access from the outside. The Z-
Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the
inside. However, the antenna can be installed anywhere on the car, as the
Z-mount is equally well suited for mounting on e.g. trunk or wing.

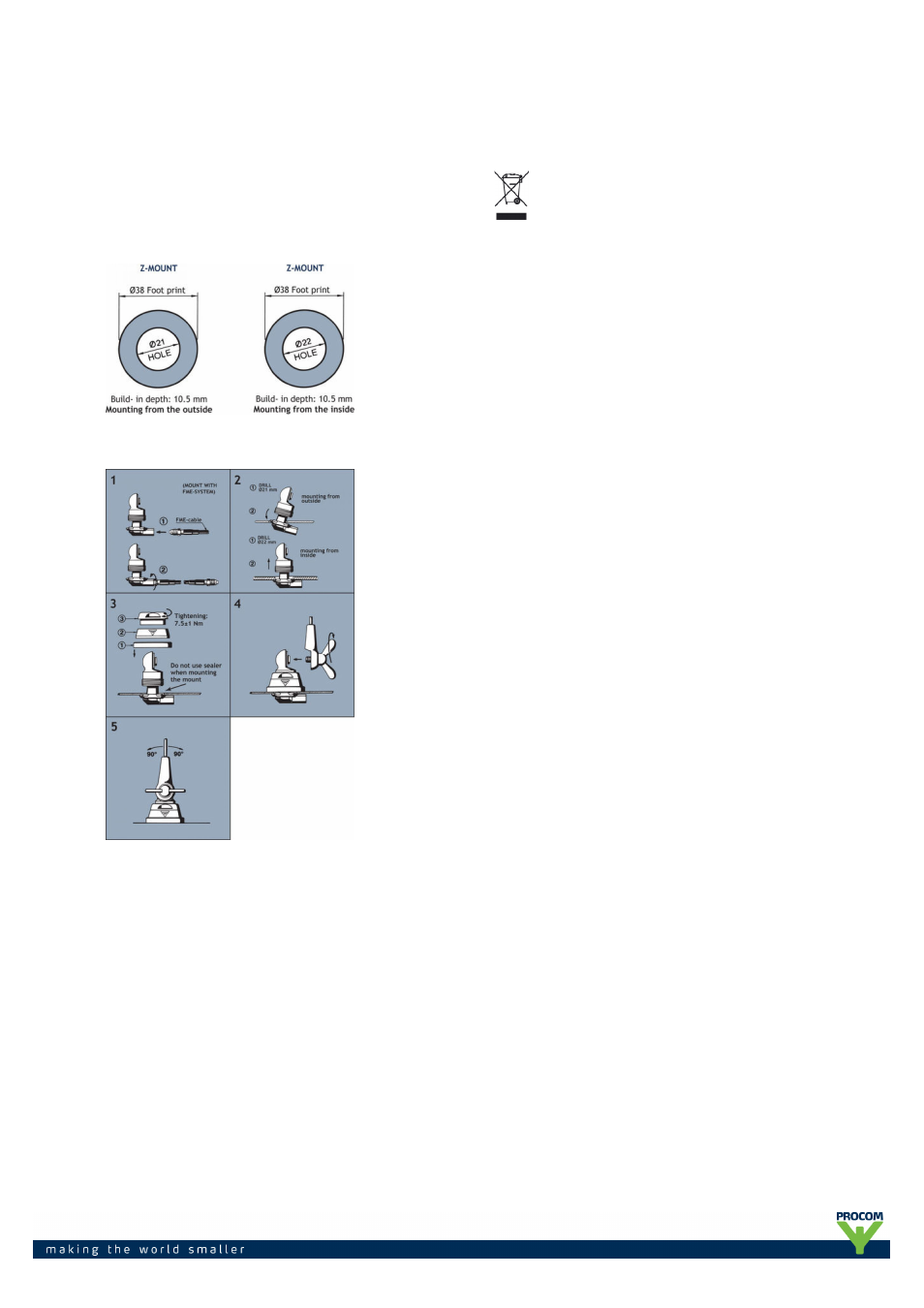

INSTALLATION DIMENSIONS
INSTALLATION STEPS
Do not use sealer on rubber gasket or other places.
TUNING
The antenna must be tuned using SWR-meter. Unfasten the union nut at the
top end of the whip and pull out the adjusting pin approx. 1 cm at a time
until best possible SWR is obtained. Re-fasten the union nut thoroughly.
PROCOM A/S reserve the right to amend specifications
without prior notice.
