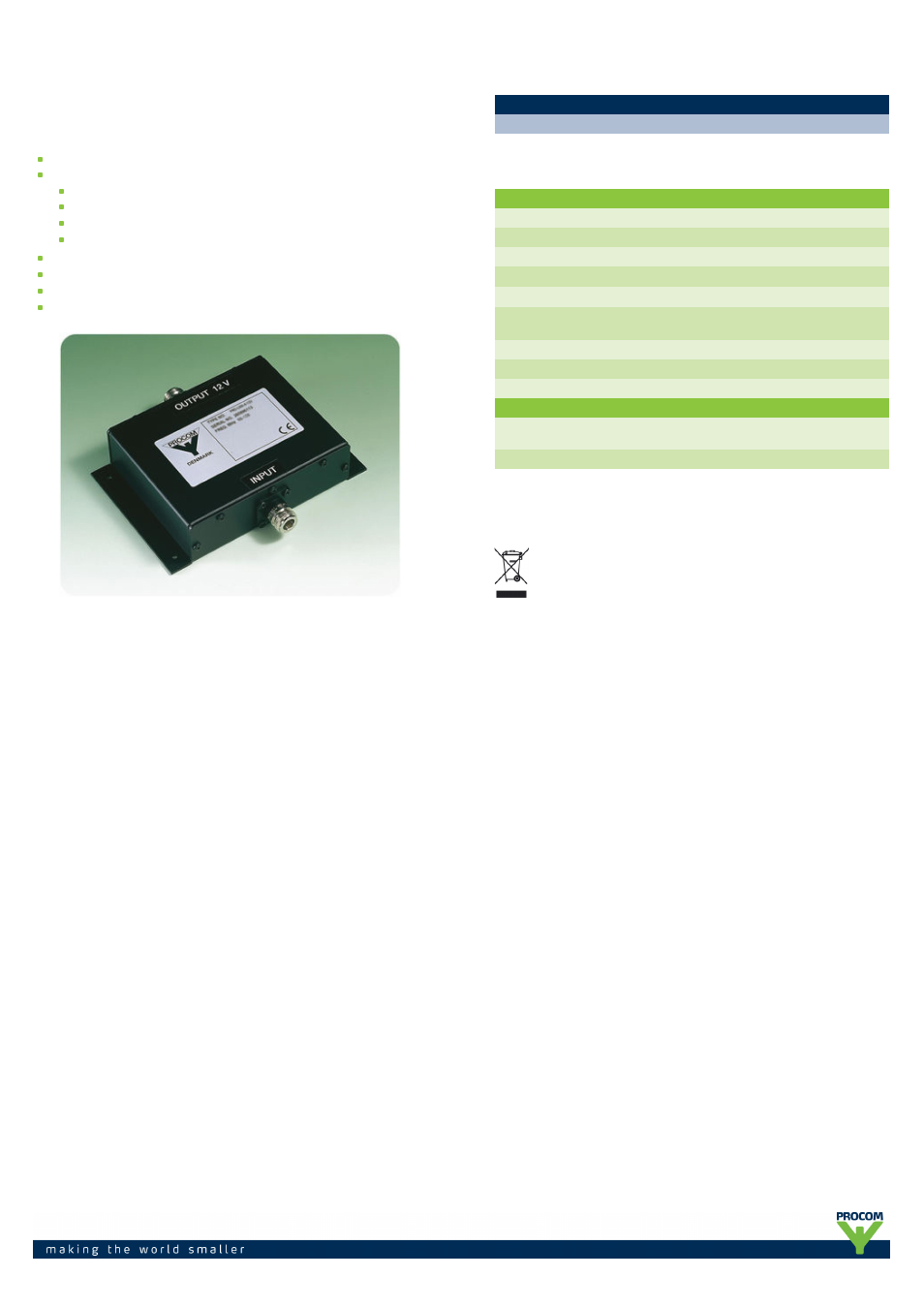

PRO-LNAHP-4-3-2-12V
Low-noise Preamplifier for 66 - 180 MHz
DESCRIPTION
Miniature high-dynamic range low-noise preamplifier.
For use where additional preamplification is required:
receivers with long antenna cabling
measuring instruments
antenna distribution systems
scanners.
High compression point, P1dB > 20 dBm.
Ultra-high third-order intercept point: > +37 dBm.
Low noise figure: < 1.2 dB.
12 V operating voltage (24 V as option).
ORDERING DESIGNATIONS
TYPE NO. PRODUCT NO.
PRO-LNAHP-4-3-2-12V 210000175
SPECIFICATIONS
ELECTRICAL
FREQUENCY RANGE 68-180 MHz
GAIN [S21] 18 dB ± 1 dB (Gain adj. 0/-10 dB)
NOISE FIGURE < 1.2 dB
OIP 3
> 37 dBm
P
1dB
> 16 dBm
ISOLATION OUTPUT TO
INPUT
> 20 dB
IMPEDANCE Nom. 50 Ω
SWR (INPUT & OUTPUT) Max. 3.5 typ. < 2.0
SUPPLY POWER 12 V @ 60 mA
MECHANICAL
DIMENSIONS (L x W x H) 138 (incl. conn.) x 152 (incl. flanges) x 35
mm
WEIGHT Approx. 500 g
Procom A/S reserve the right to amend specifications without prior notice.
PROCOM A/S reserve the right to amend specifications
without prior notice.
21/05/13
