Procom CXL 900-1800-1900-UMTS-LW User Manual
Procom Accessories communication

CXL 900/1800/1900/UMTS/LW
Quadruple-Band Base Station and Marine Antenna for the
900 MHz, 1800 MHz, 1900 MHz and the 2000 MHz
Bands.

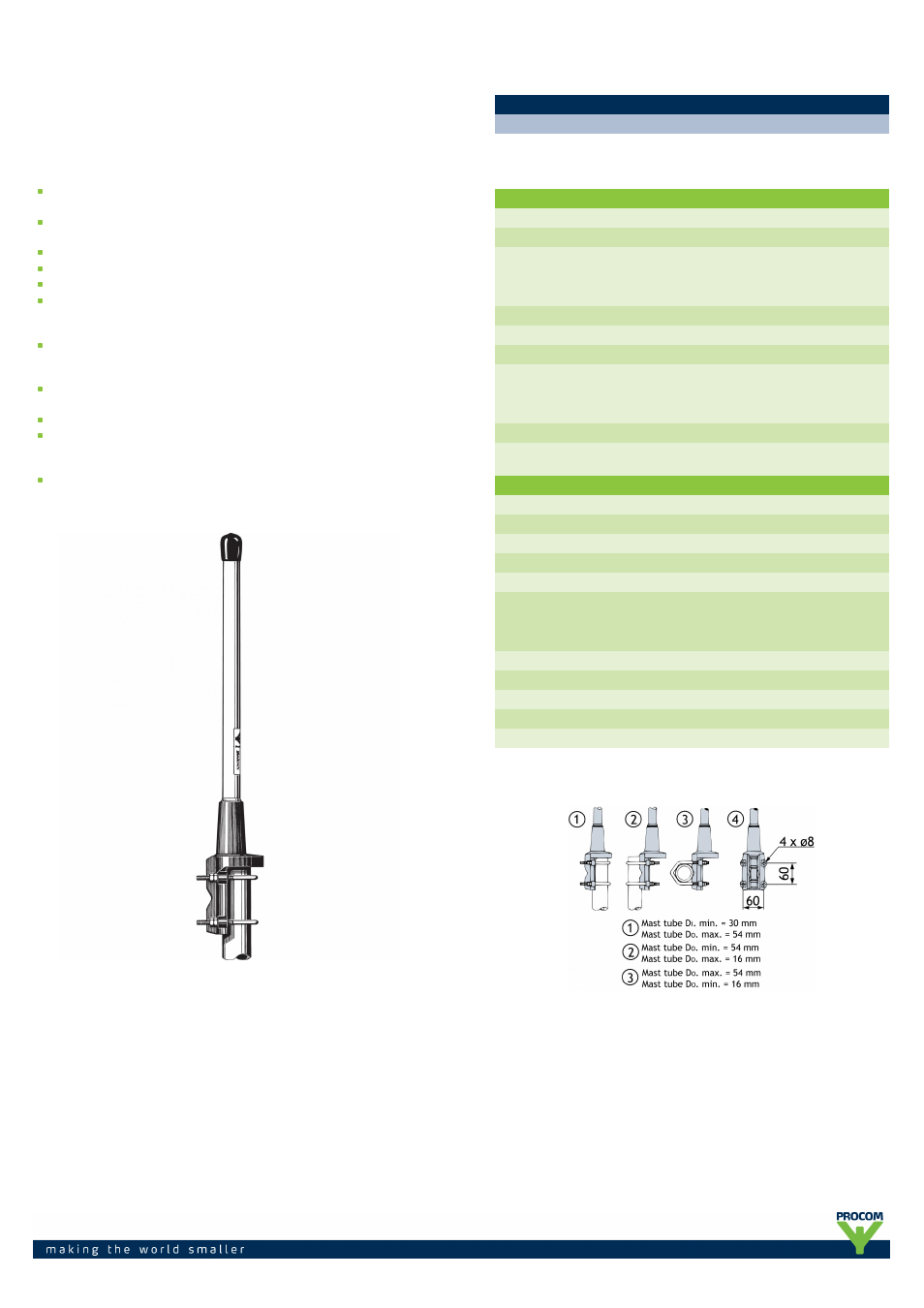

DESCRIPTION
Quadruple-Band base station and marine antenna – four bands with only
one antenna.
Covering both GSM/NMT-900, DCS-1800/PCN (GSM 900/1800), PCS-
1900 and UMTS.
Particularly suitable for use with triple-band mobile phones.
Unity gain on all bands.
Wide variety of accessory mounting brackets available.
The carefully designed, broad-banded antenna element is sealed in a
high-quality, conical glass fibre tube with low wind-load, which will
ensure performance undisturbed by corrosive environments.
Provided with the sturdy “LW” mast mount – a lightweight,
multipurpose, epoxy-coated mounting bracket made of non-corrosive
aluminium.
The cable can be led either on the outside or along the inside of the
mast tube.
Large bandwidth with respect to both SWR and gain.
To substantially reduce noise caused by atmospherical discharges, all
metal parts in the antenna are DC-grounded. Consequently, the antenna
shows a DC-short across the coaxial cable.
The CXL 900/1800/1900/UMTS/LW is a vibration-proof, lightweight,
slimline,
corrosion resistant, modern style base station and marine antenna.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
CXL 900/1800/1900/UMTS/LW
110000229
SPECIFICATIONS
ELECTRICAL
MODEL
CXL 900/1800/1900/UMTS/LW
ANTENNA TYPE
Quadruple-Band base station and marine antenna
FREQUENCY
800 - 960 MHz/1710 - 1880 MHz/1850 - 1990
MHz/
1900 - 2200 MHz
(GSM 900/DCS-1800/PCS-1900/UMTS)
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Vertical
GAIN
Approx. 0 dBd (all bands)
SWR
GSM @ ≤ 2.0
DCS-1800 @ ≤ 2.0
PCS-1900 @ ≤ 3.0
UMTS @ ≤ 3.0
MAX. POWER
100 W
ANTISTATIC
PROTECTION
All metal parts DC-grounded
(Connector shows a DC-short)
MECHANICAL
TEMP. RANGE
-30°C → +70°C
CONNECTOR
N-female
WIND SURFACE
Approx. 0.018 m²
WIND LOAD
Approx. 23 N @ 160 km/h
COLOUR
Marine white
MATERIALS
Shroud: Polyurethane-coated glass fibre
Mounting bracket: Seawater resistant aluminium,
epoxy-coated
Clamps: Stainless steel
TOTAL HEIGHT
Approx. 500 mm
DIA. IN TOP END
21 mm
DIA. IN BOTTOM END
23 mm
WEIGHT
Approx. 600 g
MOUNTING
On 16 to 54 mm dia. mast tube
MULTI-PURPOSE MOUNTING BRACKET
PLEASE NOTE
The antenna is delivered with a DC-connection between the antenna
element and the mounting bracket.
