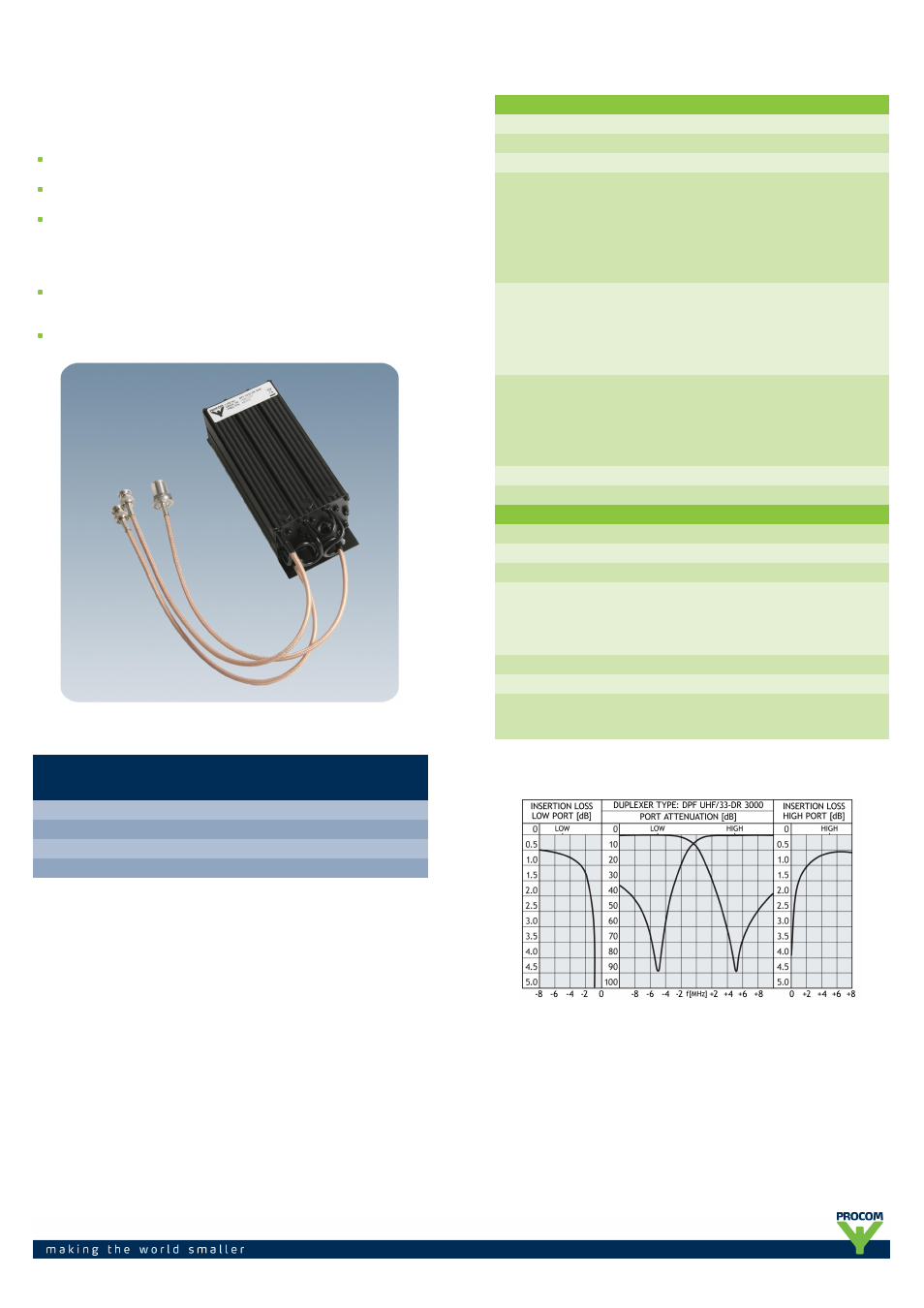

DPF UHF/33-DR 3000
6-Cavity Duplexer for the 450 MHz Band Repeater
DESCRIPTION
The DPF UHF/33-DR 3000 is a 6-cavity duplex filter designed to be built
into the Motorola DR 3000 duplex repeater.
The DPF UHF/33-DR 3000 can be adjusted within the complete
406 - 470 MHz band. The duplexer is delivered with a 10 MHz spacing.
The DPF UHF/33-DR 3000 is primarily intended for TX and RX operation
on single frequencies, but it can also, however with slightly reduced
data, be used where the TX and RX operate on several channels, i.e.
within a certain port bandwidth. In the latter case, factory tuning is
recommended.
The filter uses full-length ¼ λ cavities in a compact, extruded aluminium
housing. The chassis is made of passivated steel, and teflon insulation
has been applied in the coaxial cables and in the connectors.
The filter is coated with black vinyl to prevent corrosion.
ORDERING DESIGNATION
TYPE
DUPLEX
SPACING
(MHZ)
PRODUCT NO.
DPF UHF/33-DR 3000-5/7
5 - 7
200002426
DPF UHF/33-DR 3000-7/9
7 - 9
200002427
DPF UHF/33-DR 3000-9/13
9 - 13
200002067
DPF UHF/33-DR 3000-13/16
13 - 16
200002428
ORDERING INFORMATION: When ordering, please state TX and RX frequencies. If TX and RX
frequencies are not stated, the filters are delivered non-adjusted.
PLEASE NOTE
Special configurations of this filter type may be quoted on request. The filter
is supplied with flying leads (RG 400 coaxial cable) terminated with
connectors.
The filter is delivered with 4 stays and screws for mounting.
SPECIFICATIONS
ELECTRICAL
MODEL
DPF UHF/33-DR 3000
FREQUENCY
406 - 470 MHz
MAX. INPUT POWER
50 W
INSERTION LOSS LOW OR
HIGH TO ANT.
(at 10 MHz duplex spacing)
Single-channel tuned:
Multi-channel tuned, 2 MHz BW:
≤ 1.2 dB (typ. 1.0 dB)
≤ 1.2 dB (typ. 1.0 dB)
LOW TO HIGH ISOLATION
ON LOW FREQUENCY
Single-channel tuned:
Multi-channel tuned, 2 MHz BW:
≥ 85 dB
≥ 65 dB
HIGH TO LOW ISOLATION
ON HIGH FREQUENCY
Single-channel tuned:
Multi-channel tuned, 2 MHz BW:
≥ 85 dB
≥ 65 dB
IMPEDANCE
Nom. 50 Ω
SWR (All ports)
≤ 1.5
MECHANICAL
TEMP. RANGE
–30° C → +60° C
FREQ. STABILITY
Approx. 4.5 ppm/° C
CONNECTION
RG 400 Length = 430 mm
CONNECTORS
Low and high port:
Ant. port:
BNC male
N female, bulkhead
DIMENSIONS (L x W x H)
186.5 x 77 x 60 mm
WEIGHT
Approx. 930 g
MOUNTING
Supplied with 4 stays (length
63 mm) for mounting with
screws M4 x 12 mm
TYPICAL RESPONSE CURVES @ 10 MHz SPACING
