SB 2-1/2/138-160 MHz-N
Steel-Band Antenna for Portable Equipment in the 2 m
Band
DESCRIPTION
Rugged, flexible steel-band antenna whip.
Curved sectional area to help keeping the antenna erect.
Delivered factory tuned and tested to ensure minimum SWR and
optimum performance.
Provided with N (male) connector.
Matching unit built-in.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
SB 2-1/2/138-160 MHz-N 140000241
SPECIFICATIONS FOR WHIP INCL. MATCHING UNIT
ELECTRICAL
MODEL SB 2-1/2/138-160 MHz-N
ANTENNA TYPE ½ λ antenna for portable equipment
FREQUENCY 138 - 160 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN 0 dB (equal to a ¼ λ portable antenna)
BANDWIDTH ≥ 20 MHz @ SWR ≤ 1.5
SWR < 2 when mounted directly on portable equipment
MAX. POWER 10 W
MECHANICAL
MATERIALS Whip:
Weather- and shockproof plastics
Covered stainless steel band
N (male) connector:
Cu-nite plated brass
COLOUR Black/Bright
TOTAL HEIGHT 830 mm
WEIGHT Approx. 145 g
CONNECTOR N (male)

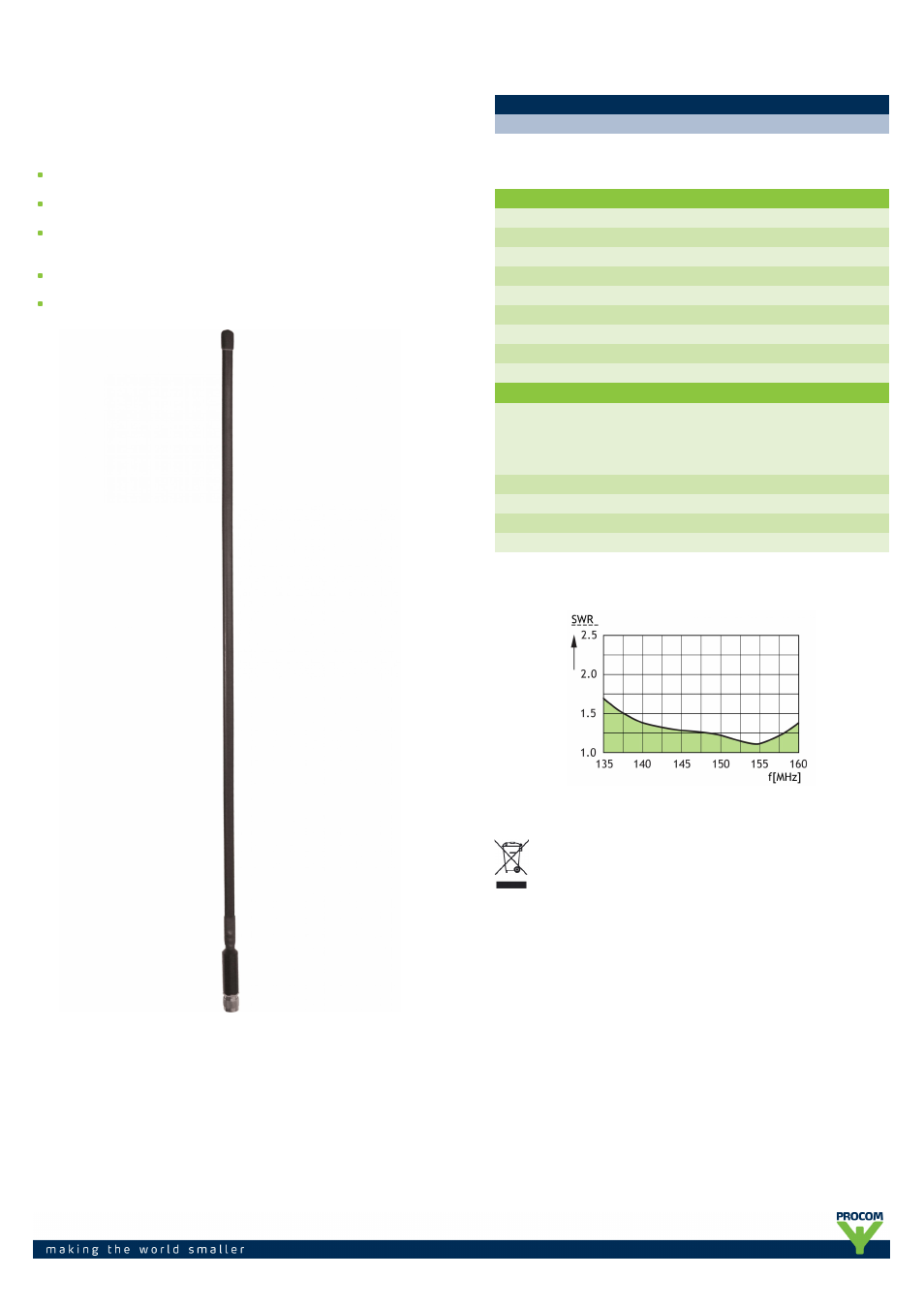

TYPICAL SWR CURVE
