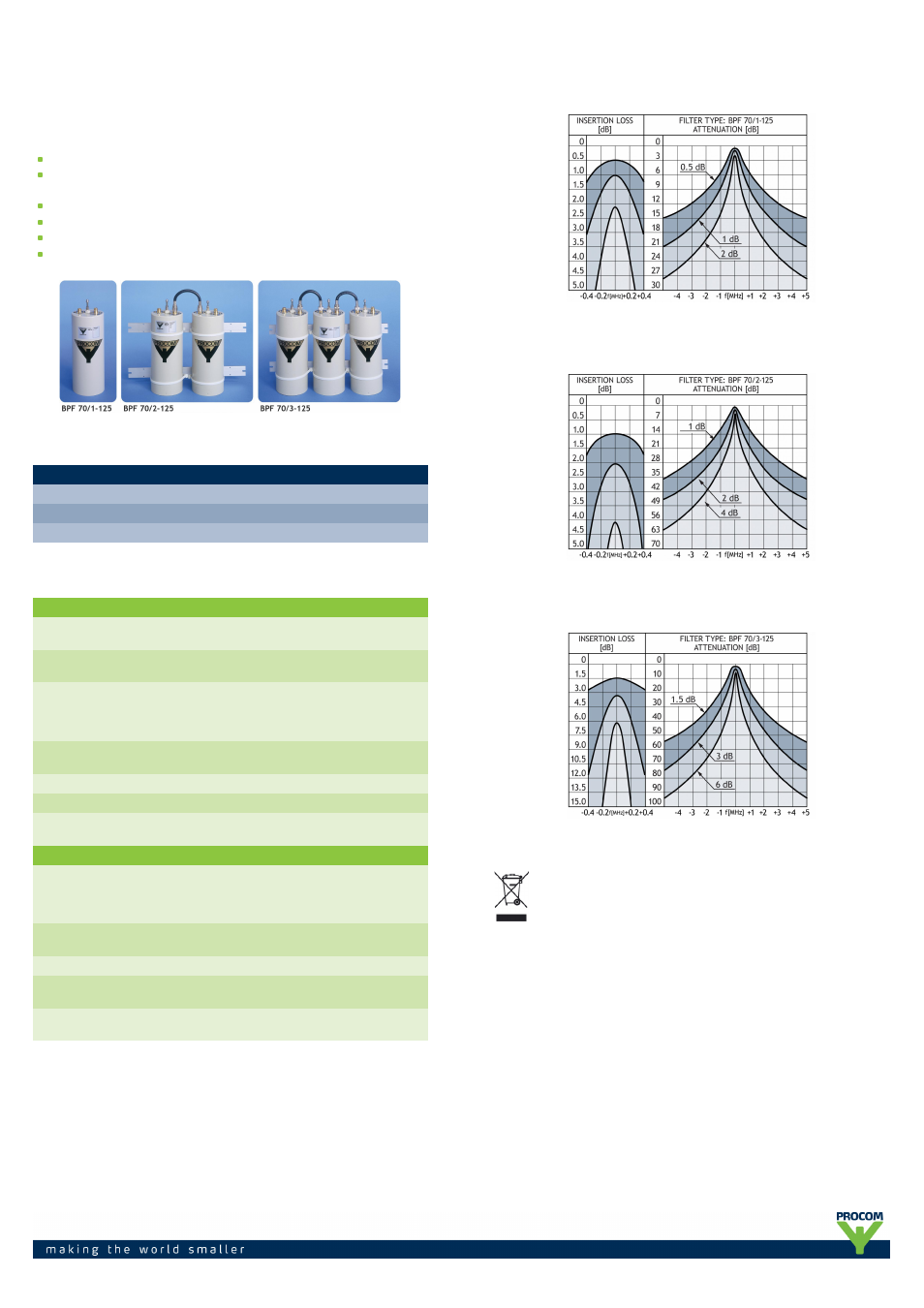

Procom BPF 70-...-125 - Manual

BPF 70/...-125
Band-Pass Filters for the 450 MHz Band
DESCRIPTION
High power base station band-pass filters for the 380 - 470 MHz range.
The use of large ø125 mm cavities means a high Q,
resulting in a very narrow passband.
The large dimensions also mean a high power rating.
Unloaded Q of a single cavity is approx. 4500.
High frequency stability on temperature and power.
19” mounting brackets are available as an option.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
BPF 70/1-125 200000962
BPF 70/2-125 200001049
BPF 70/3-125 200001050
SPECIFICATIONS
ELECTRICAL
MODEL BPF 70/1-
125
BPF 70/2-125 BPF 70/3-125
FREQ.
RANGE
380 - 470
MHz
380 - 470 MHz 380 - 470 MHz
MAX.
INPUT
POWER
300 W @
0.5 dB IL
125 W @
2.0 dB IL
300 W @
1.0 dB IL
125 W @
4.0 dB IL
300 W @
1.5 dB IL
125 W @
6.0 dB IL
INSERTION LOSS Adjustable
0.4 - 2.0 dB
Adjustable
0.8 - 4.0 dB
Adjustable
1.2 - 6.0 dB
ATTENUATION See figure 1 See figure 2 See figure 3
IMPEDANCE Nom. 50 Ω Nom. 50 Ω Nom. 50 Ω
SWR (at
resonance)
< 1.5 < 1.5 < 1.5
MECHANICAL
TEMP.
RANGE
RH 0-90%
non-condensing
–30° C →
+60° C
–30° C →
+60° C
–30° C →
+60° C
FREQ.
STABILITY
Approx. 1.5
ppm/° C
Approx. 1.5
ppm/° C
Approx. 1.5
ppm/° C
CONNECTORS N-female N-female N-female
DIMENSIONS ø125 x
300 mm
L:125 x W:250 x
H:300 mm
L:125 x W:375 x
H:300 mm
WEIGHT Approx.
1.2 kg
Approx.
2.7 kg
Approx.
4.3 kg
TYPICAL RESPONSE CURVES
Figure 1
TYPICAL RESPONSE CURVES
Figure 2
TYPICAL RESPONSE CURVES
Figure 3
PROCOM A/S reserve the right to amend specifications
without prior notice.
