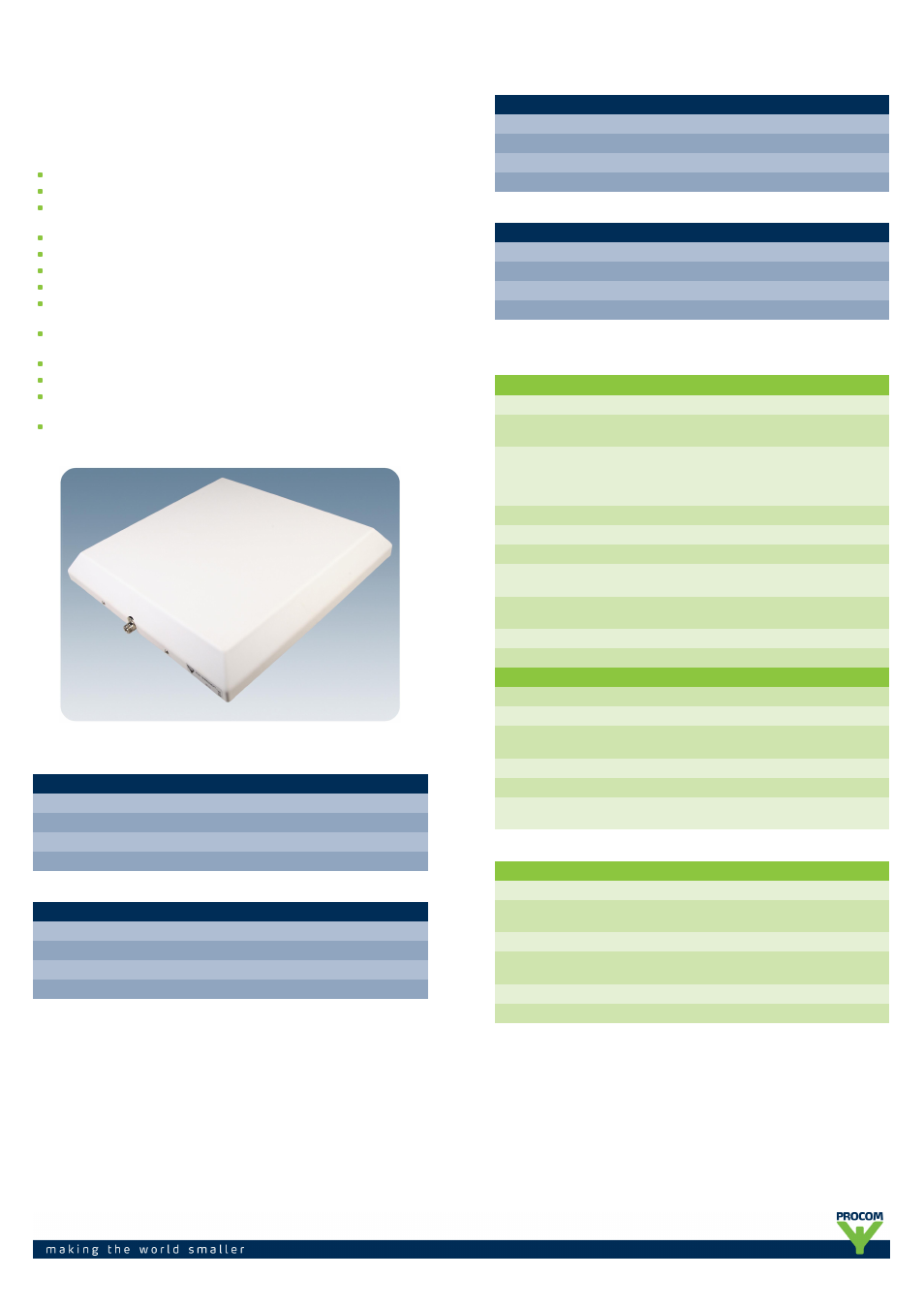

PCPI 70/900/xHCP/...
Indoor Left or Right Hand Circularly Polarized Antenna for
the 450 MHz and RHCP for 900 MHz Bands
DESCRIPTION
Dual band indoor base station antenna - one antenna with two bands.
Low profile antenna for the 450 MHz and 900 MHz bands.
PCPI 70/900/xHCP/... is a Left or Right Hand Circularly Polarized antenna
for indoor use e.g. on ceilings and walls inside ships and houses.
900 MHz band is fixed RHCP.
Circularly polarized antenna is chosen to avoid out-of-phase signals.
Reduces flutter considerably.
Specially designed for closed rooms.
Covers 450 MHz and 900 MHz bands with a radiation of approx. 2 dBic 0
dBd.
The two built in antennas are combined with a built in diplexer, with low
insertion loss, which makes it possible to have only one downlead cable.
The antenna is carefully sealed with a discreet cover.
The antenna is provided with one connector.
The connector is placed at one side to enable mounting close to a wall
or a ceiling.
Chassis also available in stainless steel PCPI 70R/900/xHCP/...
(see ordering designations below).
STANDARD VERSION ORDERING DESIGNATIONS
TYPE FREQUENCY PRODUCT NO.
PCPI 70/900/LHCP/s 380 - 400 MHz 100000248
PCPI 70/900/LHCP/f 410 - 430 MHz 100000249
PCPI 70/900/LHCP/l 430 - 450 MHz 100000250
PCPI 70/900/LHCP/h 450 - 470 MHz 100000251
TYPE FREQUENCY PRODUCT NO.
PCPI 70/900/RHCP/s 380 - 400 MHz 100000252
PCPI 70/900/RHCP/f 410 - 430 MHz 100000253
PCPI 70/900/RHCP/l 430 - 450 MHz 100000254
PCPI 70/900/RHCP/h 450 - 470 MHz 100000255
STAINLESS STEEL VERSION ORDERING DESIGNATIONS
TYPE FREQUENCY PRODUCT NO.
PCPI 70R/900/LHCP/s 380 - 400 MHz 100000256
PCPI 70R/900/LHCP/f 410 - 430 MHz 100000257
PCPI 70R/900/LHCP/l 430 - 450 MHz 100000258
PCPI 70R/900/LHCP/h 450 - 470 MHz 100000259
TYPE FREQUENCY PRODUCT NO.
PCPI 70R/900/RHCP/s 380 - 400 MHz 100000260
PCPI 70R/900/RHCP/f 410 - 430 MHz 100000261
PCPI 70R/900/RHCP/l 430 - 450 MHz 100000262
PCPI 70R/900/RHCP/h 450 - 470 MHz 100000263
SPECIFICATIONS
ELECTRICAL
MODEL PCPI 70/900/xHCP/...
ANTENNA TYPE Left or right hand circularly polarized dual band
antenna
FREQUENCY 450 MHz freq. to be stated within:
380 - 470 MHz
900 MHz freq. to be stated within:
880 - 960 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Circular
GAIN Approx. 2 dBic 0 dBd ± 3 dB
BANDWIDTH 450 MHz: ≥ 20 MHz @ SWR ≤ 2.0
900 MHz: ≥ 80 MHz @ SWR ≤ 2.0
HALF POWER
BEAMWIDTH
Approx. 60º (H- and E-plane)
SWR ≤ 1.5 f.res.
MAX. POWER 35 W
MECHANICAL
CONNECTOR N-female
COLOUR Marine white
MATERIALS Cover: PS (white)
Chassis: Aluminium
SIZE (W x L x H) Approx. 415 x 415 x 70 mm
WEIGHT Approx. 2.0 kg
MOUNTING For mounting on wall or ceiling ø4.5 x 20 mm (four
holes)
ELECTRICAL FOR BUILT IN DIPLEXER
MODEL DIPX 500/800
FREQUENCY Low port : 0 - 500 MHz
High port : 800 - 1300 MHz
MAX. INPUT POWER 35 W each port
INSERTION LOSS 0 - 500 MHz : ≤ 0.5 dB
800 - 1300 MHz: ≤ 0.5 dB
ISOLATION Low to high port: ≥ 45 dB
TEMP. RANGE –30° C → +70° C
