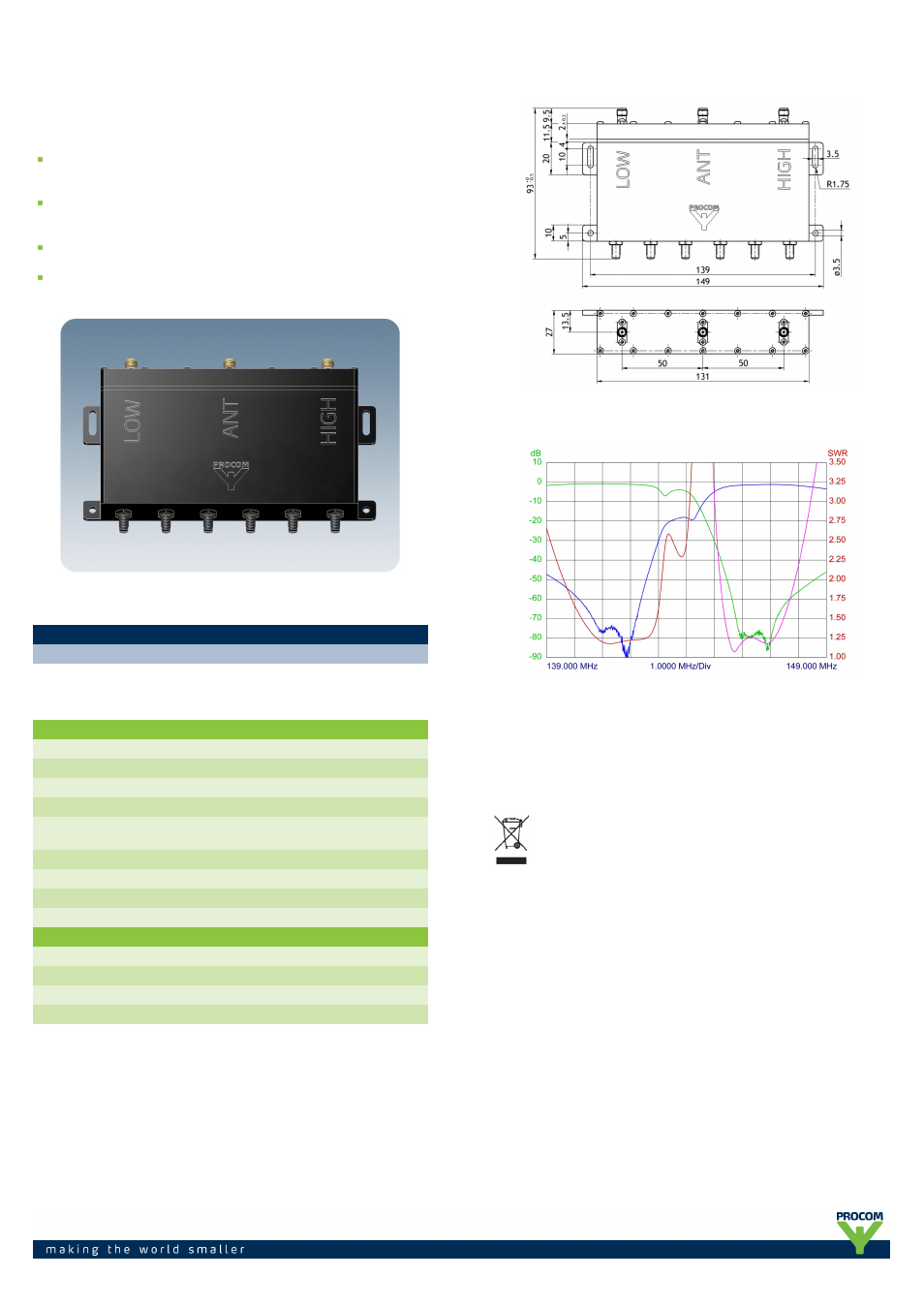

MIX 150/6
6-Resonator Mini-Duplexer for the 150 MHz Band
DESCRIPTION
The MIX 150/6 is a 6-resonator miniaturized duplex filter for
digital/analog repeaters. This compact “miniplexer” meets the demand
for a modern space-saving, high-performance filter type.
The miniaturization of the filter has been realized by using special high-
Q, temperature-compensated helical resonators with discrete-
component interconnections.
The housing is made of aluminium and the connectors are provided with
teflon insulation.
The model can be tuned within the band 136 - 174 MHz on request,
min. TX/RX spacing 4 MHz.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
MIX 150/6 200002145
SPECIFICATIONS
ELECTRICAL
MODEL MIX 150/6
TX/RX FREQUENCY 136 - 174 MHz
BANDWIDTH 1 - 4 MHz
MAX. INPUT POWER 15 W
INSERTION LOSS TX-ANT
AND ANT-RX
≤ 2.0 dB
(typ. ≤ 1.5 dB)
IN-BAND ISOLATION > 60 dB
TX/RX SPACING > 4 - 10 MHz
IMPEDANCE Nom. 50 Ω
SWR ≤ 2.0
MECHANICAL
TEMP. RANGE –30° C → +60° C
CONNECTORS SMA-female
DIMENSIONS (L x W x H) 93 x 149 x 27 mm / 3.66 x 5.86 x 1.06 in
WEIGHT Approx. 500 g / 1.10 lb
MOUNTING DETAILS
TYPICAL RESPONSE CURVES
PLEASE NOTE
Special configurations of this filter type may be quoted on request. For
instance, the filter can be delivered with other connector types or with flying
leads (RG 316 coaxial cable) terminated with connectors or for soldering-
connection.
PROCOM A/S reserve the right to amend specifications
without prior notice.
