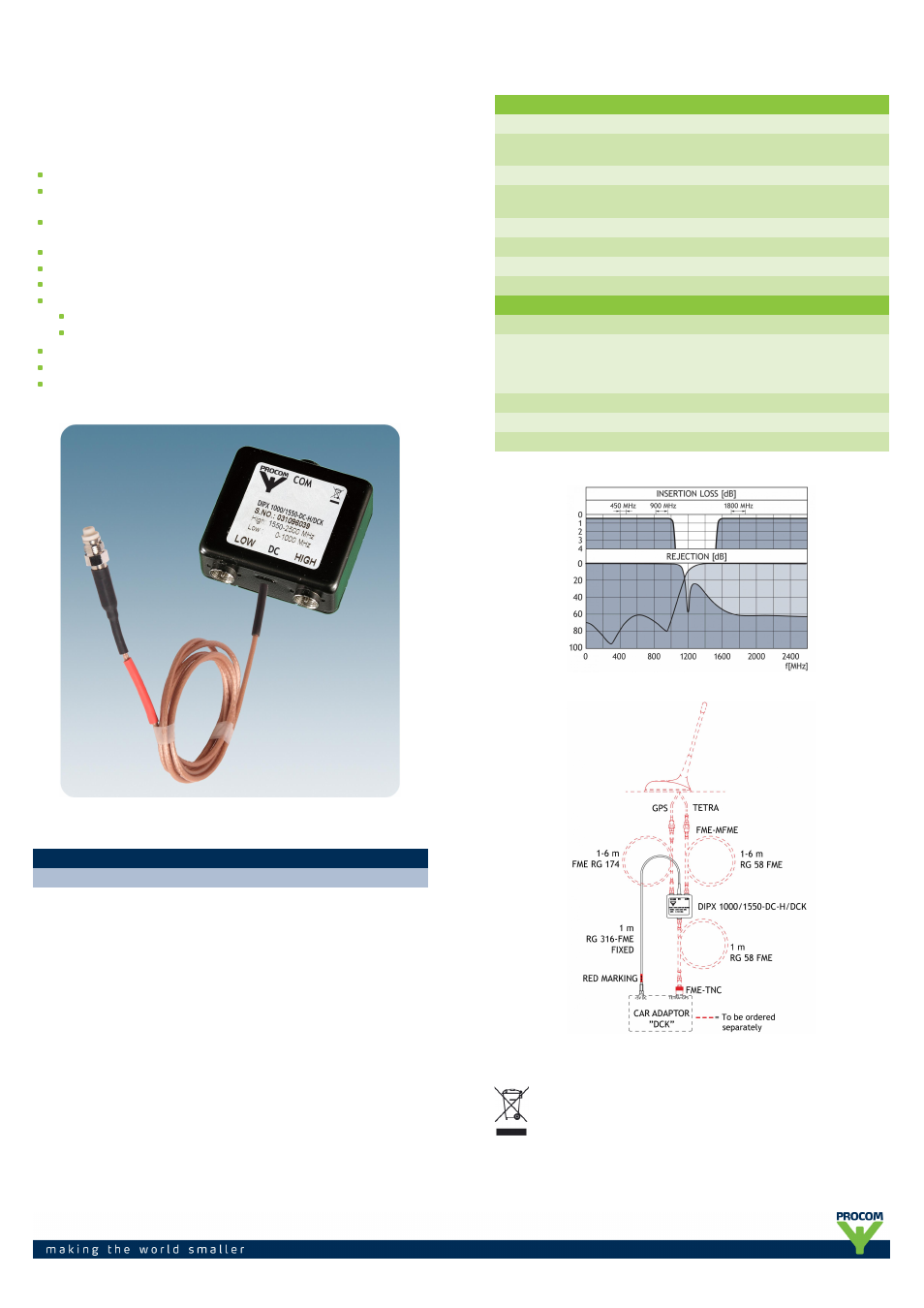

DIPX 1000/1550-DC-H/DCK
Diplexer for the 0 - 1000 MHz and 1550 - 2500 MHz
Ranges
DESCRIPTION
Diplexer for splitting a combined GPS and TETRA radio signal.
Allows you to connect a separate radio and GPS antenna to a common
radio port.
DC power supply for the high port to supply power to an active GPS
antenna.
Extremely low insertion loss.
High isolation between the two antenna ports.
Especially suitable for the Motorola Digital Car Kit (DCK).
Wide-band coverage on the antenna ports:
low (radio): 0000 - 1000 MHz
high (GPS): 1550 - 2500 MHz
Easy installation with the mounted, double-sided adhesive pad.
RF Connectors: FME mounting plug.
DC connection: 1 m RG 316 cable with FME female connector for
Motorola Car Kit.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
DIPX 1000/1550-DC-H/DCK
200000789
SPECIFICATIONS
ELECTRICAL
MODEL
DIPX 1000/1550-DC-H/DCK
FREQUENCY
Low port : 0 - 1000 MHz
High port : 1550 - 2500 MHz
MAX. INPUT POWER
15 W each port
INSERTION LOSS
0 - 1000 MHz : ≤ 0.8 dB
1550 - 2500 MHz: ≤ 1.0 dB
ISOLATION
Low to high port: ≥ 45 dB
MAX. DC-CURRENT ON HIGH
200 mA
MAX. DC-VOLTAGE ON HIGH
25 V
IMPEDANCE
50 Ω on all terminals
MECHANICAL
TEMP. RANGE
–30° C → +70° C
CONNECTORS
LOW : FME
HIGH : FME
COM: FME
DC cable: FME FEMALE
DIMENSIONS (W x H x D)
50 x 21 x 50 mm
WEIGHT
Approx. 75 g
DC CABLE
Fixed 1 m RG 316
