PCPI 900/RHCP
Indoor Right Hand Circularly Polarized Patch Antenna for
mounting on Wall or Ceiling
DESCRIPTION
Low profile antenna for the 900 MHz Band.
PCPI 900/RHCP is a Right Hand Circularly Polarized patch antenna for
indoor use.
Circularly polarized antenna is chosen to avoid out-of-phase signals.
Specially designed for closed rooms.
Covers approx. 80 MHz with a radiation of approx. 7 dBic.
Full size 2 λ circular patch antenna.
The antenna is carefully sealed with a discreet white cover.
The connector is placed at one side to enable mounting close to a wall
or a ceiling.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
PCPI 900/RHCP 100000159
SPECIFICATIONS
ELECTRICAL
MODEL PCPI 900/RHCP
ANTENNA TYPE Right Hand Circularly Polarized
patch antenna
FREQUENCY 880 - 960 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Circular
GAIN Approx. 7 dBic
BANDWIDTH ≥ 80 MHz
HALF-POWER
BEAMWIDTH
Approx. 80° (H- and E-plane)
SWR ≤ 2.0
MAX. POWER 50 W
MECHANICAL
CONNECTOR SMA-female
COLOUR Marine white
MATERIALS Cover: ABS
Chassis: Aluminium
SIZE (L x W x H) Approx. 204 x 204 x 28 mm
WEIGHT Approx. 0.4 kg
MOUNTING For mounting on wall or ceiling
ø4.5 x 20 mm (4 holes)

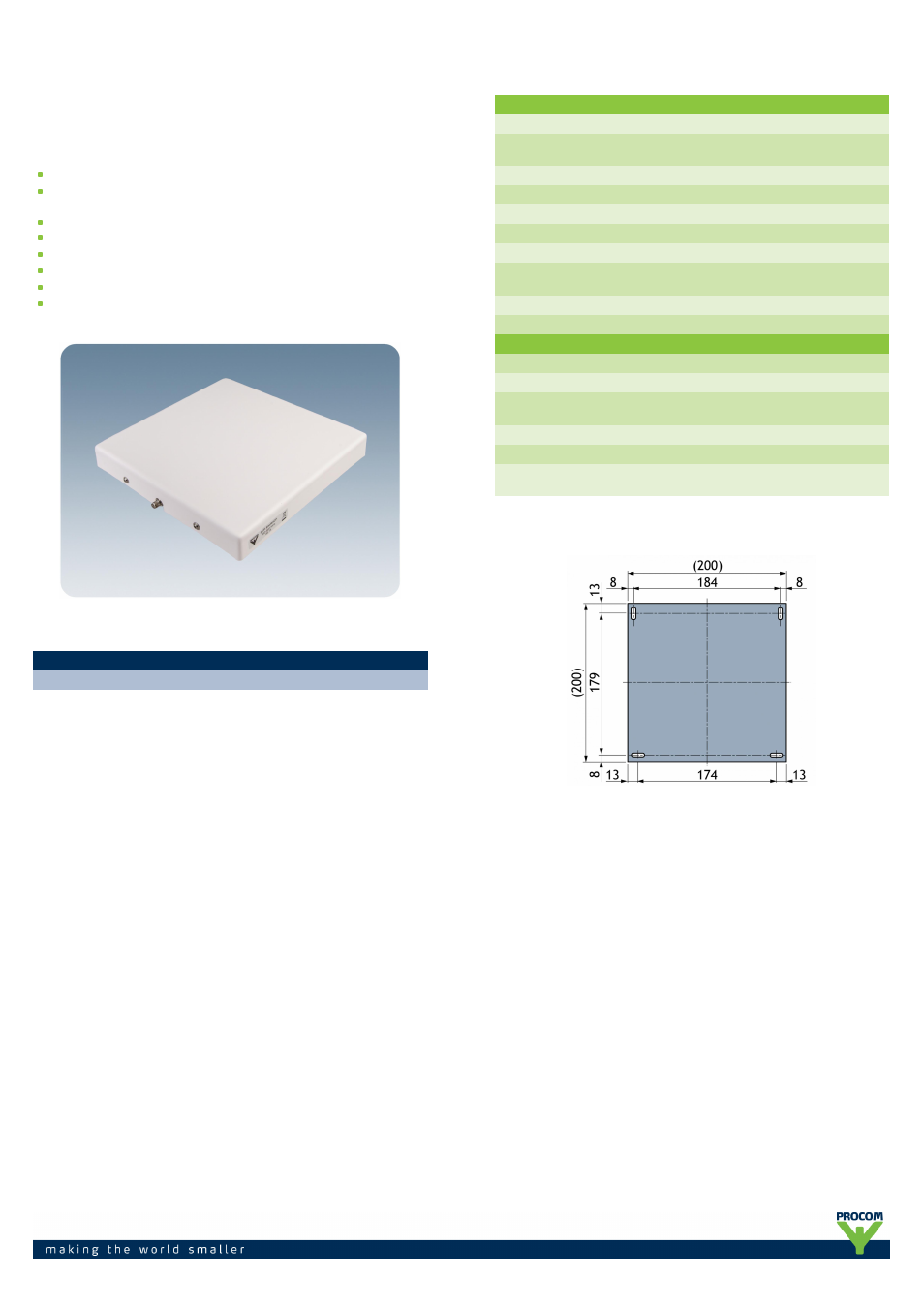

MOUNTING DETAILS (Dimensions excl. cover)
