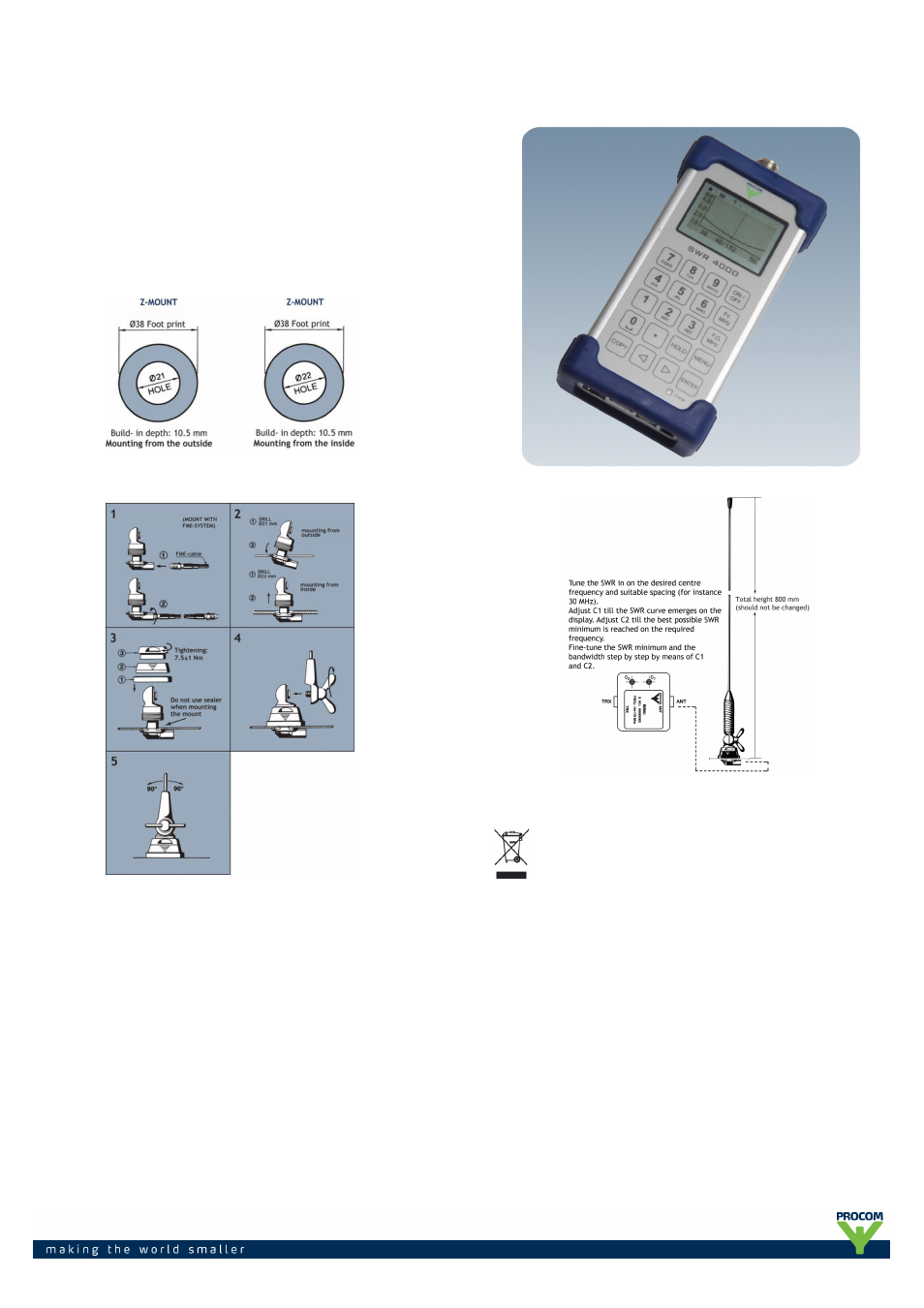

INSTALLATION
Mount and adapter box to be connected by means of the 1.
100 mm junction cable included in the supply.
Connect the FME cable for the radio station to the adapter box.
2.
The Z-mount is particularly well suited for mounting on car-roofs 3.
because of its ability to be installed exclusively with access from the
outside. The Z-Mount for roof thickness from
2 mm to 7.5 mm must be mounted from the inside. However, the
antenna can be installed anywhere on the car, as the Z-mount is
equally well suited for mounting on e.g. trunk or wing.
Adjust the frequency by means of an SWR-analyzer via C1 and C2 on
4.
the adapter box.
1. INSTALLATION DIMENSIONS
2. INSTALLATION STEPS
Do not use sealer on rubber gasket or other places.
3. TUNING
SWR 4000 Analyser with built-in signal generator and graphic display range of measurement 30-2700
MHz
PROCOM A/S reserve the right to amend specifications
without prior notice.
16/01/13
