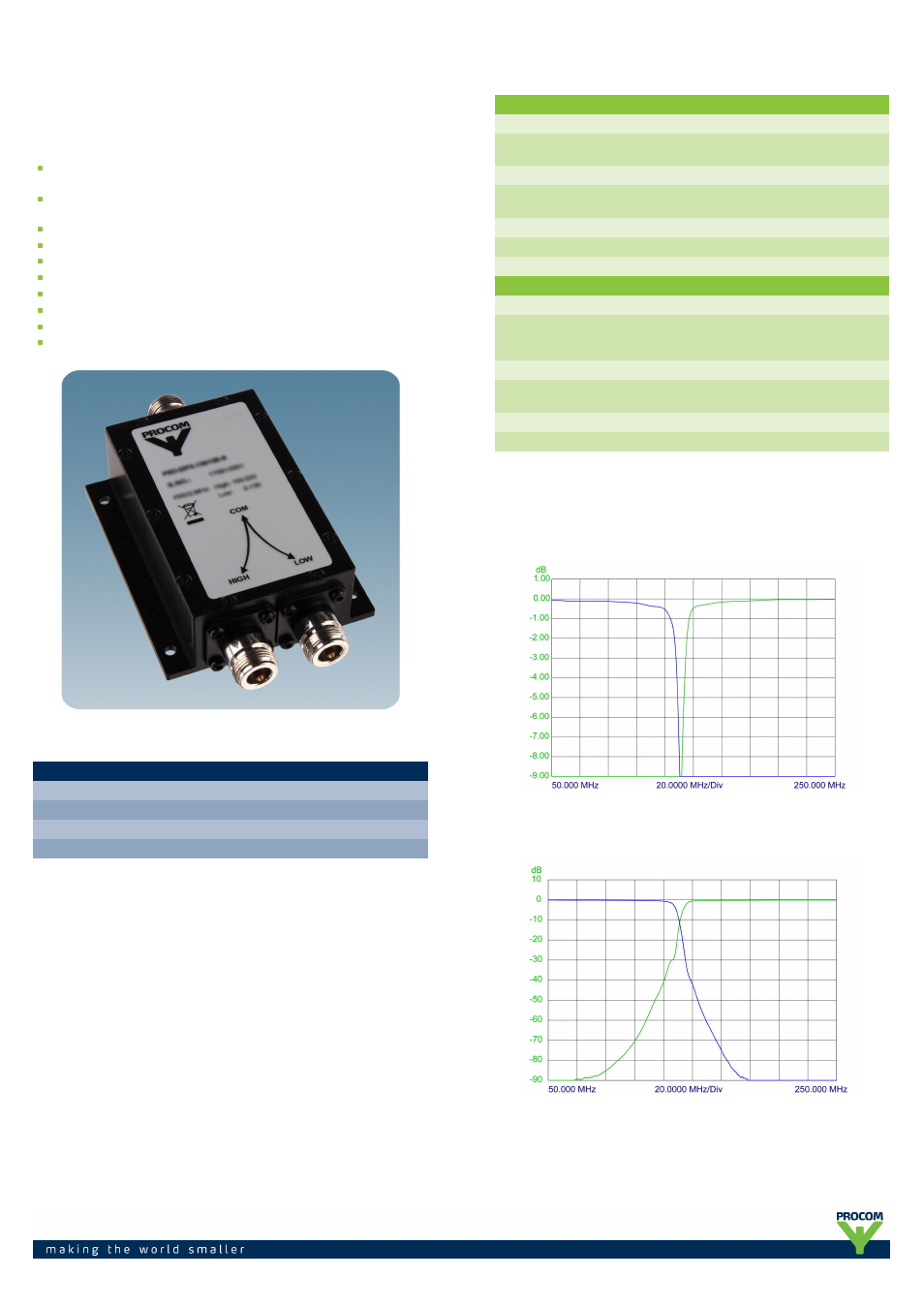

Procom PRO-DIPX 130-150-... - Manual

PRO-DIPX 130/150-…
100 W Diplexer for the 0 - 130 MHz and 150 - 960 MHz
Ranges
DESCRIPTION
Diplexer for combining or splitting the two ranges 0 – 130 MHz
and 150 – 960 MHz.
Chebychev design ensures very high isolation across the whole pass
ranges.
High power handling capability.
Low insertion loss.
Low weight.
Wide temperature range.
Milled aluminium box ensures extraordinarily high mechanical strength.
Black vinyl-coated to prevent corrosion.
N-connectors on all ports (standard).
Also available with SMA-, TNC- or BNC- connector types.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
PRO-DIPX 130/150-N 200002227
PRO-DIPX 130/150-SMA 200002224
PRO-DIPX 130/150-TNC 200002257
PRO-DIPX 130/150-BNC 200002258
SPECIFICATIONS
ELECTRICAL
MODEL PRO-DIPX 130/150-…
FREQUENCY COM-LOW port: 0 - 130 MHz
COM-HIGH port: 150 - 960 MHz
MAX. RF POWER 100W CW simultaneously on both HIGH and LOW port
INSERTION LOSS 0 - 130 MHz: ≤ 0.7 dB
150 - 960 MHz: ≤ 0.7 dB
ISOLATION LOW to HIGH port: ≥40 dB
IMPEDANCE Nom. 50 Ω
SWR Max. 1.5:1 on all ports
MECHANICAL
TEMP.RANGE* -40° C to +60° C
CONNECTORS INPUT: N-female
OUTPUT: N-female
(Other types available on request)
IP RATING IP62
DIMENSIONS
(L x W x H)
133 x 80 x 31 mm / 5.24 x 3.15 / 1.22 in.
(incl. connectors and flanges)
WEIGHT Approx. 380 g / 0.84 lb.
MOUNTING ø4.3 mm / ø0.17 in. (4 holes)
* Temperature on box surface. Adequate cooling to keep max. temperature
below +60° C must be provided.
TYPICAL RESPONSE CURVES
INSERTION LOSS [dB]
TYPICAL RESPONSE CURVES
PORT ATTENUATION [dB]
