PRO-10-001/50
50 cm Parabolic Dish Antenna for the 10 GHz band
DESCRIPTION
Completely assembled parabolic dish antenna.
Specially designed feed horn ensures low side lobe level and
high F/B ratio.
F/D = 0.4.
Provided with standard waveguide flange.
Electrostatic powder-enamelled in white colour to prevent corrosion.
Radome of white UV-proof ABS as /D option.
ORDERING DESIGNATIONS
TYPE PRODUCT NO. MODEL
PRO-10-001/50 150000057 Without radome
PRO-10-001/50/D 150000120 With radome
SPECIFICATIONS
ELECTRICAL
MODEL PRO-10-001/50
FREQUENCY 9.5 - 11.5 GHz
GAIN Approx. 31 dBi
POLARIZATION Linear, horizontal or vertical
BEAMWIDTH (-3dB) Horizontal: Approx. 3.9°
Vertical: TBD
1 st SIDE LOBE LEVEL Approx. -20 dB
F/B RATIO > 40 dB (See curves)
SWR < 1.5 @ 10.0 - 10.5 GHz
< 2.0 @ 9.5 - 11.5 GHz
MAX. POWER 100 W
MECHANICAL
WAVEGUIDE WR90
CONNECTION Standard flange UBR100
WIND SURFACE Approx. 0.25m 2 / 2.67 ft 2
WIND LOAD Approx. 316 N @ 160 km/t / 316 N @ 100 mph
MATERIALS Parabolic dish: Aluminium
Waveguide and feed horn: Brass
COLOUR White RAL9010
DIMENSIONS ø480 mm / ø18.90 in.,
Depth 225 mm / 8.86 in. (incl. feeding)
WEIGHT Without radome: 950 g / 2.10 lb.
With radome: 1600 g / 3.53 lb.

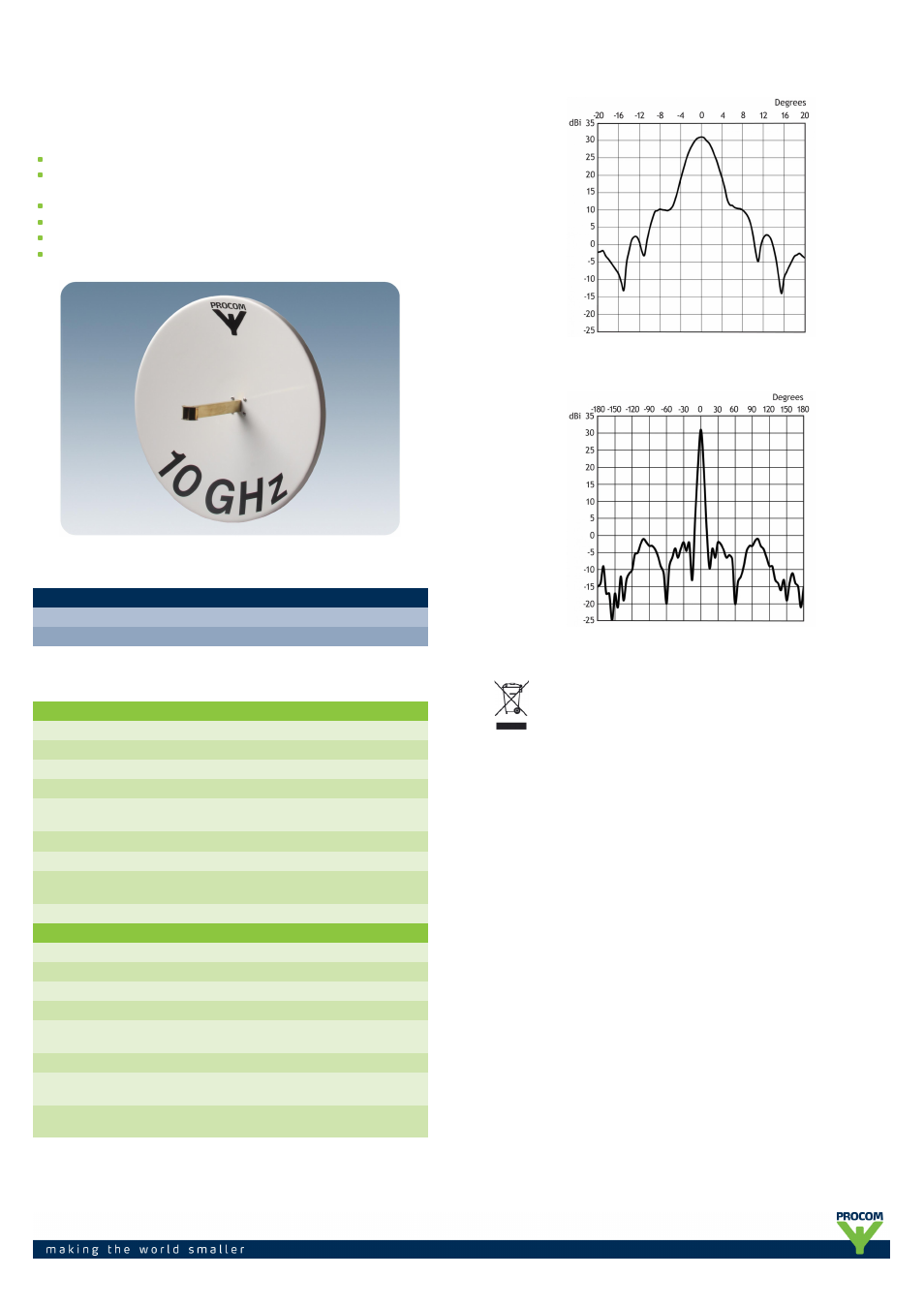

Main lobe : Horizontal polarization
Total RPE : Horizontal polarization
PROCOM A/S reserve the right to amend specifications
without prior notice.
28/11/12
