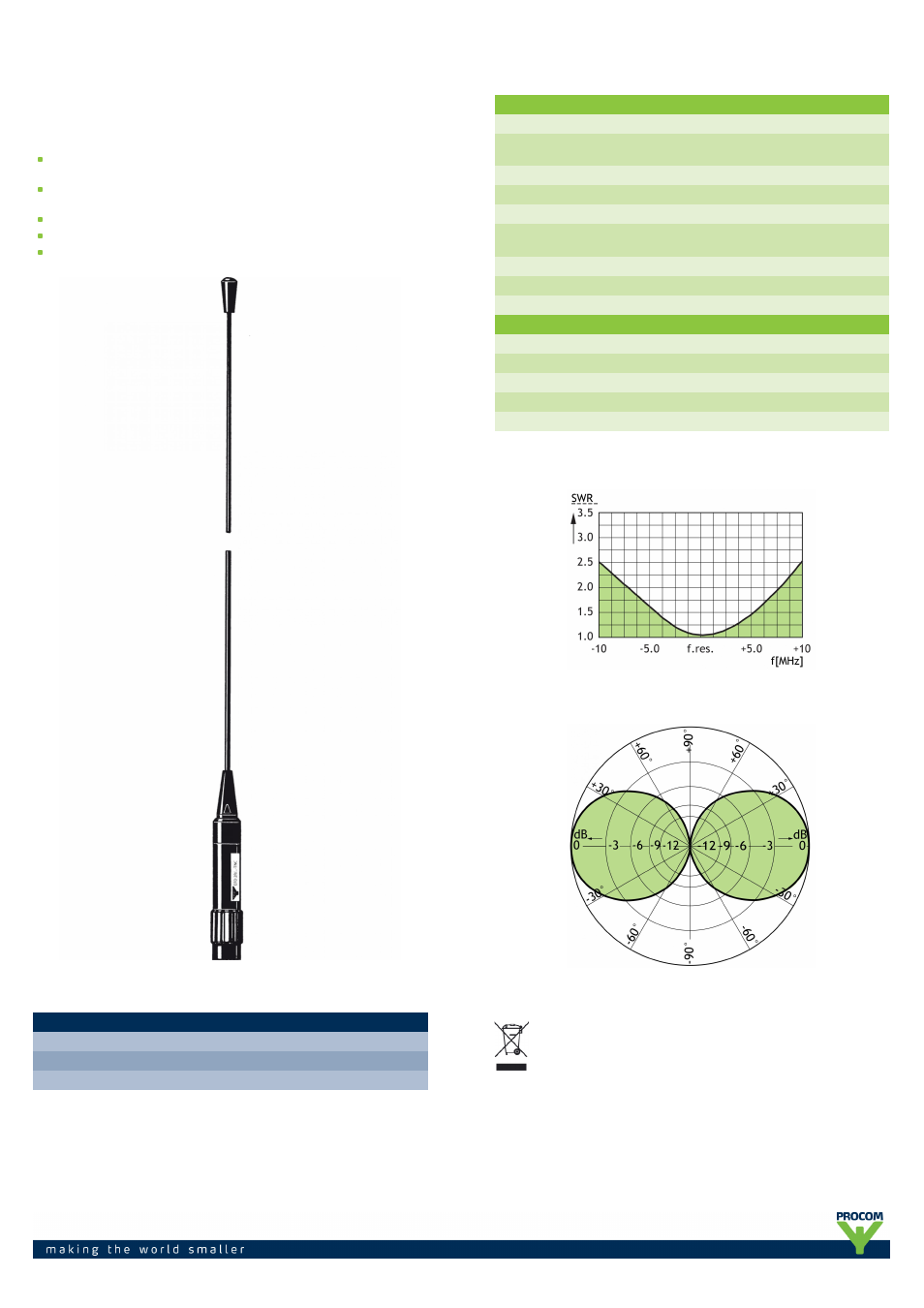

EFD 2R/...-TNC
5 dB Portable Antenna for the 160 MHz Band
DESCRIPTION
End-fed half-wave dipole with a black-chromed, conical stainless steel
whip.
5 dB gain (typ.) compared to a ¼ λ portable antenna whip on the same
equipment.
Groundplane independent due to half-wave design.
Delivered factory tuned to /l, /m or /h band. See ordering designations.
Provided with TNC (male) connector.
ORDERING DESIGNATIONS
TYPE PRODUCT NO. FREQUENCY
EFD 2R/l-TNC 140000088 144 - 160 MHz
EFD 2R/m-TNC 140000089 155 - 170 MHz
EFD 2R/h-TNC 140000090 160 - 175 MHz
SPECIFICATIONS
ELECTRICAL
MODEL EFD 2R/...-TNC
ANTENNA
TYPE
End-fed ½ λ dipole mobile antenna
FREQUENCY 2 m band covered by three models
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN
5 dB (compared to a ¼ λ portable antenna on the same
equipment)
BANDWIDTH ≥ 15 MHz @ SWR ≤ 2.0
SWR < 1.3 @ f. res.
MAX. POWER 25 W
MECHANICAL
MATERIALS Black-chromed, conical stainless steel Black-chromed brass
COLOUR Black
HEIGHT Approx. 960 mm
WEIGHT Approx. 100 g
CONNECTOR TNC (male)
TYPICAL SWR CURVES
TYPICAL RADIATION PATTERN (E-PLANE)
PROCOM A/S reserve the right to amend specifications
without prior notice.
06/12/11
