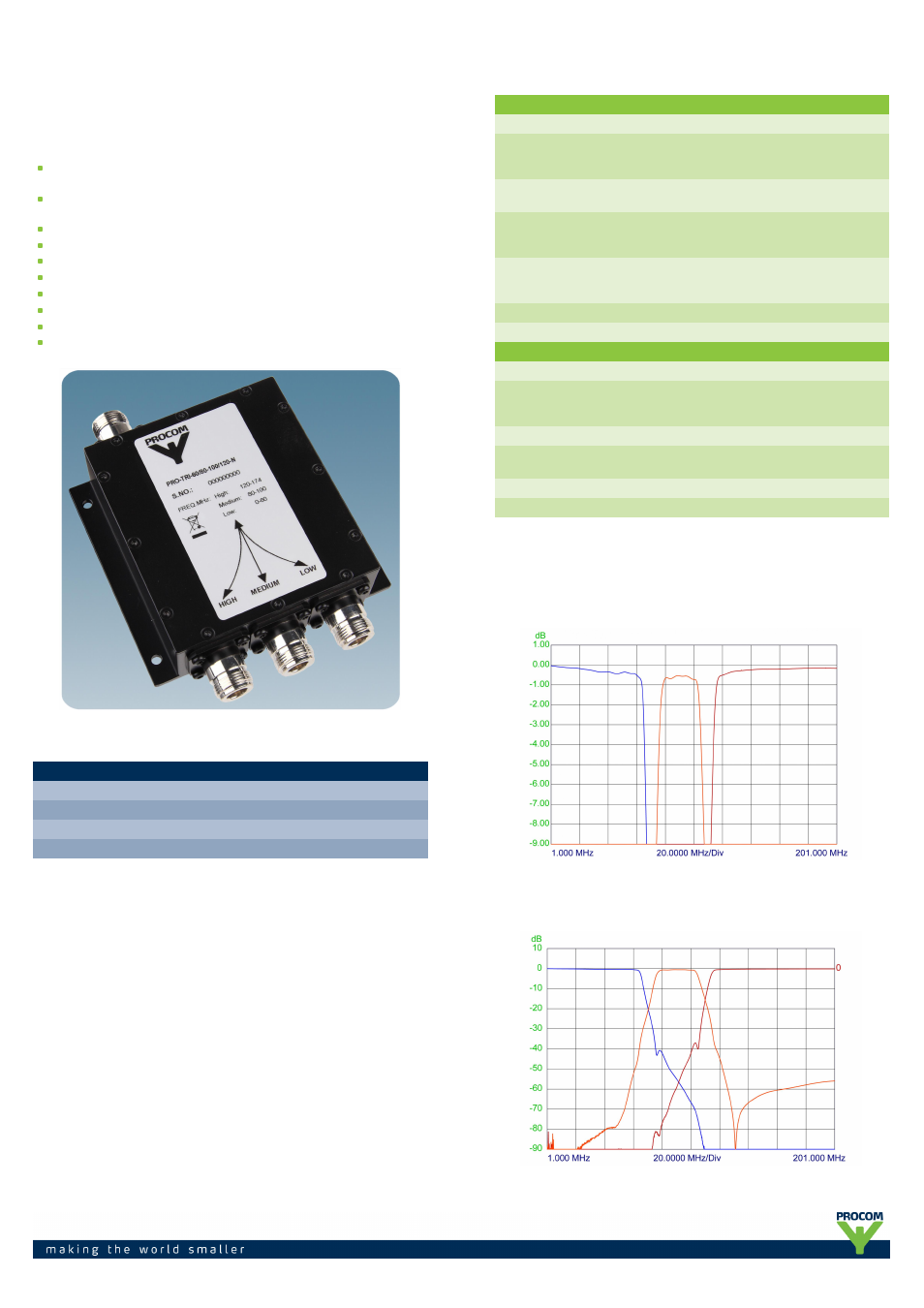

Procom PRO-TRI 60-80-100-120-... - Manual

PRO-TRI 60/80-100/120-…
50 W Triplexer for the 0 - 60 MHz 80 - 100 MHz and 120
- 960 MHz Ranges
DESCRIPTION
Triplexer for combining or splitting the three ranges 0 – 60 MHz,
80 – 100 MHz and 120 – 960 MHz.
Chebychev design ensures very high isolation across the whole pass
ranges.
High power handling capability.
Low insertion loss.
Low weight.
Wide temperature range.
Milled aluminium box ensures extraordinarily high mechanical strength.
Black vinyl-coated to prevent corrosion.
N-connectors on all ports (standard).
Also available with SMA-, TNC- or BNC- connector types.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
PRO-TRI 60/80-100/120-N 200002324
PRO-TRI 60/80-100/120-SMA 200002301
PRO-TRI 60/80-100/120-TNC 200002325
PRO-TRI 60/80-100/120-BNC 200002326
SPECIFICATIONS
ELECTRICAL
MODEL PRO-TRI 60/80-100/120-…
FREQUENCY COM-LOW port: 0 - 60 MHz
COM-MEDIUM port: 80 - 100 MHz
COM-HIGH port: 120 - 960 MHz
MAX. RF POWER 50W CW simultaneously on both HIGH, MEDIUM
and LOW port
INSERTION LOSS 0 - 60 MHz: ≤ 0.6 dB
80 - 100 MHz: ≤ 1.0 dB
120 - 960 MHz: ≤ 0.6 dB
ISOLATION BETWEEN
LOW, MEDIUM and HIGH
ports
≥40 dB
IMPEDANCE Nom. 50 Ω
SWR Max. 1.5:1 on all ports
MECHANICAL
TEMP.RANGE* -40° C to +60° C
CONNECTORS INPUT: N-female
OUTPUT: N-female
(Other types available on request)
IP RATING IP62
DIMENSIONS
(L x W x H)
133 x 106 x 31 mm / 5.24 x 4.17 / 1.22 in.
(incl. connectors and flanges)
WEIGHT Approx. 475 g / 1.05 lb.
MOUNTING ø4.3 mm / ø0.17 in. (4 holes)
* Temperature on box surface. Adequate cooling to keep max. temperature
below +60° C must be provided.
TYPICAL RESPONSE CURVES
INSERTION LOSS [dB]
TYPICAL RESPONSE CURVES
PORT ATTENUATION [dB]
