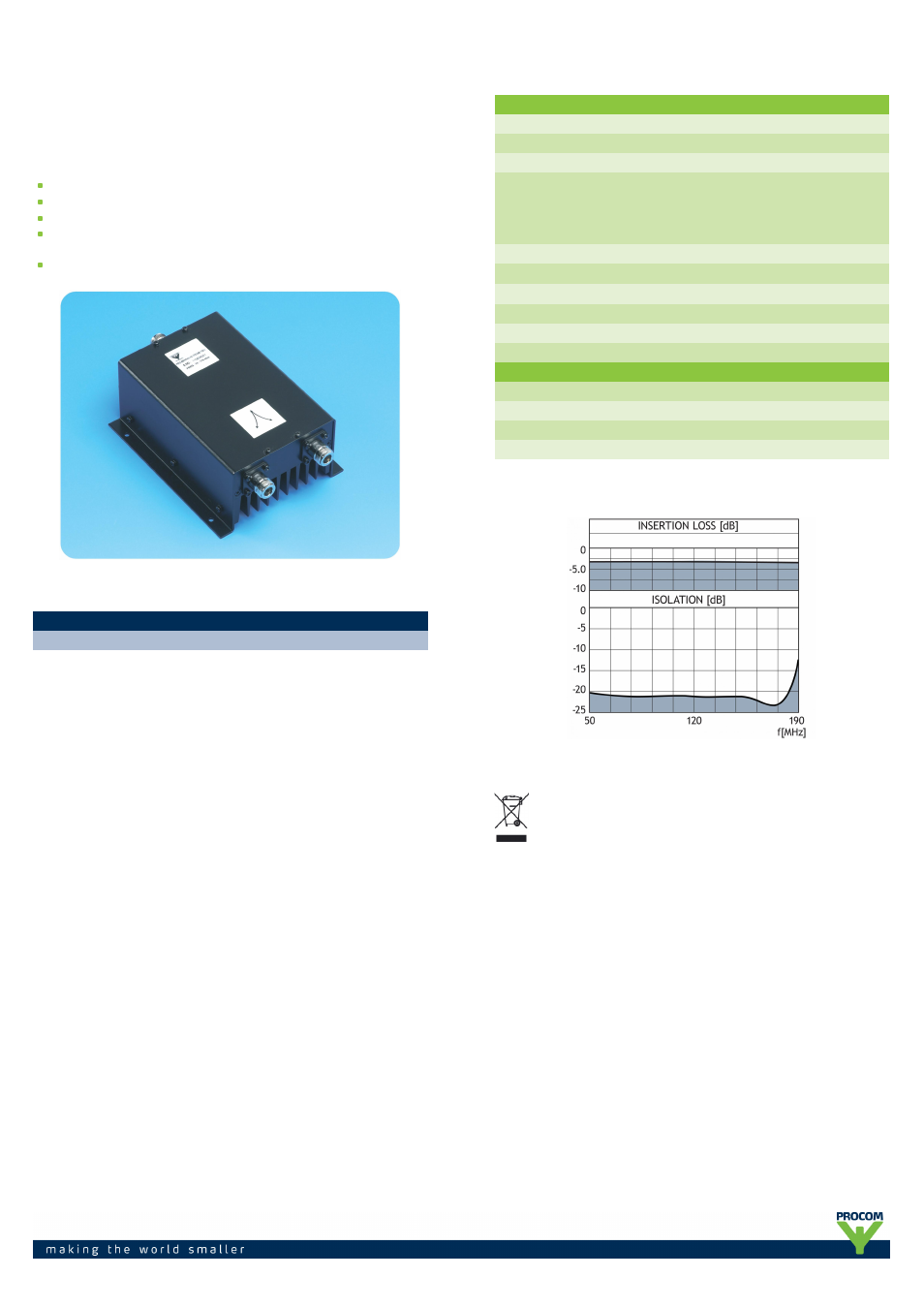

Procom PRO-bbmphy-74-175-3-db-100w User Manual
Procom Accessories communication

PRO-BBMPHY-74-175-3 dB-
100W
Broad Band Power Divider / Combiner
DESCRIPTION
Two antennas connected to the same transmitter or receiver.
Broad band power splitter for radio systems.
Combining of two transmitters on the same antenna.
Note: The power splitter has a built-in heat sink.
Max. 40 W per TX.
100 W load built-in.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
PRO-BBMPHY-74-175-3 dB-100W
210000286
SPECIFICATIONS
ELECTRICAL
MODEL
PRO-BBMPHY-74-175-3 dB-100W
TYPE
Cascaded Wilkinson-hybrid
FREQUENCY
74 - 175 MHz
MAX. INPUT POWER
100 W when used as a power splitter -
40 W per channel when used as a hybrid combiner.
Note: Gets hot when used as a hybrid combiner.
(Up to approx. 80° C)
INSERTION LOSS
< 3.4 dB
ISOLATION TX
1
, TX
2
> 20 dB
PHASE TX
1
, TX
2
0°
IMPEDANCE
Nom. 50 Ω
LOAD
100 W load built-in
SWR
< 1.4 with all other ports terminated with 50 Ω
MECHANICAL
TEMP. RANGE
–30° C → +60° C
CONNECTOR TYPE
N-female (other types available)
DIMENSIONS (L x W x H) 196 (incl. conn.) x 128 x 70 mm
WEIGHT
Approx. 1.3 kg
TYPICAL RESPONSE CURVE
PROCOM A/S reserve the right to amend specifications
without prior notice.
09/11/11
