Lna-gps line amp

LNA-GPS line amp-...

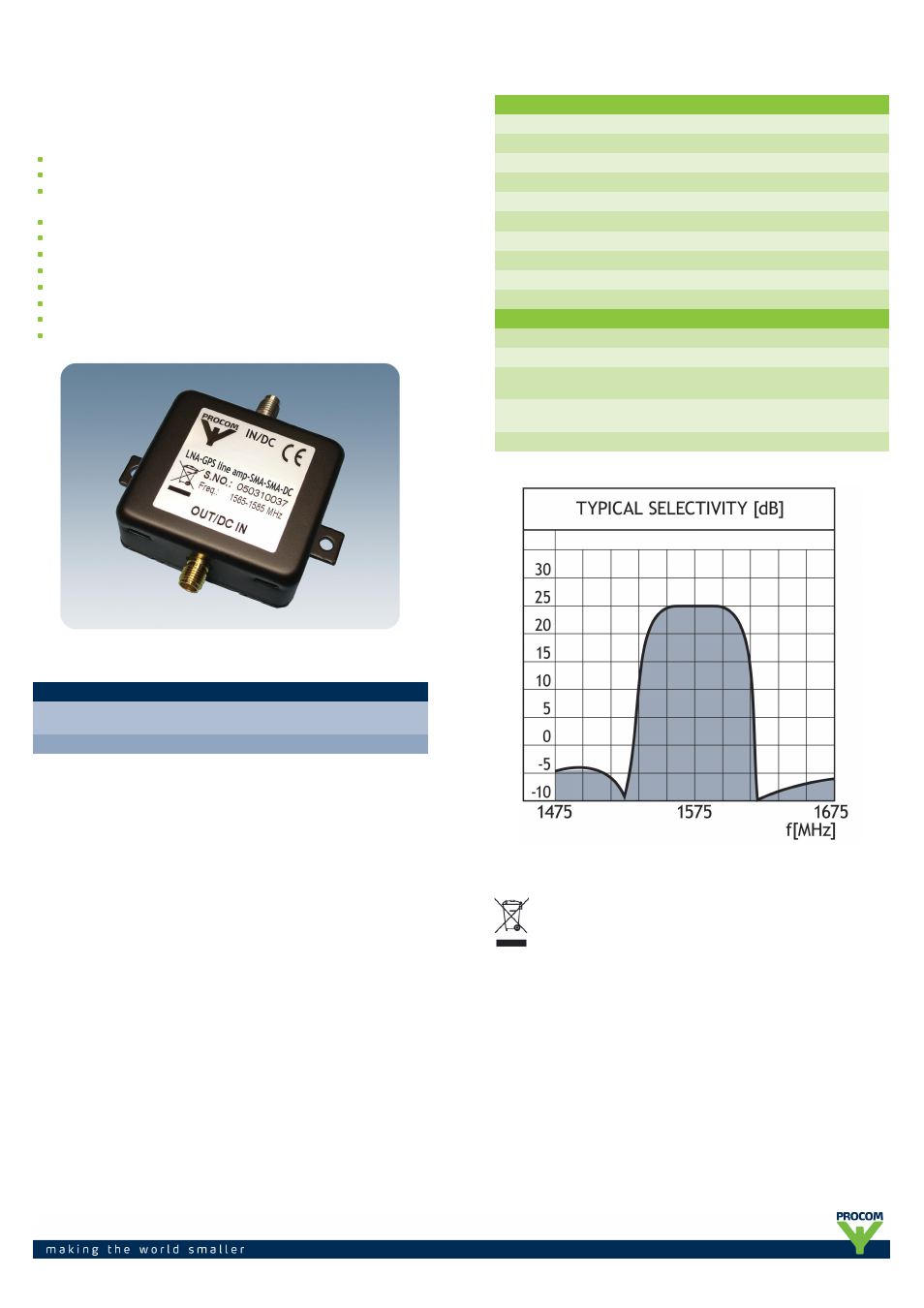

Low-noise line amplifier for the 1575 MHz GPS band
DESCRIPTION
Miniature GPS line amplifier.
Suitable for GPS signal distribution network.
Built-in band-pass filter to attenuate unwanted signals and clean up the
distributed GPS signal.
Low input and output SWR.
Low noise figure.
Low weight.
Wide temperature range.
Wide supply voltage range.
Low power consumption.
DC supplied from phantom voltage on the signal line.
DC-path from output to input.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
DC-PATH
LNA-GPS line amp-SMA-SMA
210001657
DC-path between
input and output
LNA-GPS line amp-TNCf-SMA-0DC
210001163
DC blocked on input
SPECIFICATIONS
ELECTRICAL
MODEL
LNA-GPS line amp-...
FREQUENCY RANGE
1575 ± 10 MHz
NOMINAL GAIN
25 dB ± 1.5 dB @ 1575 MHz
NOISE FIGURE
Max. 3.0 dB, Typ 2.5 dB
OUTPUT IP3
>+14 dBm
P
1 dB
>0 dBm
IMPEDANCE
Nom 50 Ω
SWR (in- and output)
Max. 2.0 typ. 1.5
SUPPLY VOLTAGE
3 – 15 VDC
CURRENT CONSUMPTION
10 mA
MECHANICAL
TEMP. RANGE
-30°C → + 70°C
COLOUR
Black
CONNECTORS
Input: SMA-female
Output: SMA-female
DIMENSIONS
(L x W x H)
62 x 66 x 19.5 mm
(incl. connectors and flanges)
WEIGHT
Approx. 65 g
PROCOM A/S reserve the right to amend specifications
without prior notice.
27/09/13
