AN 4113/...

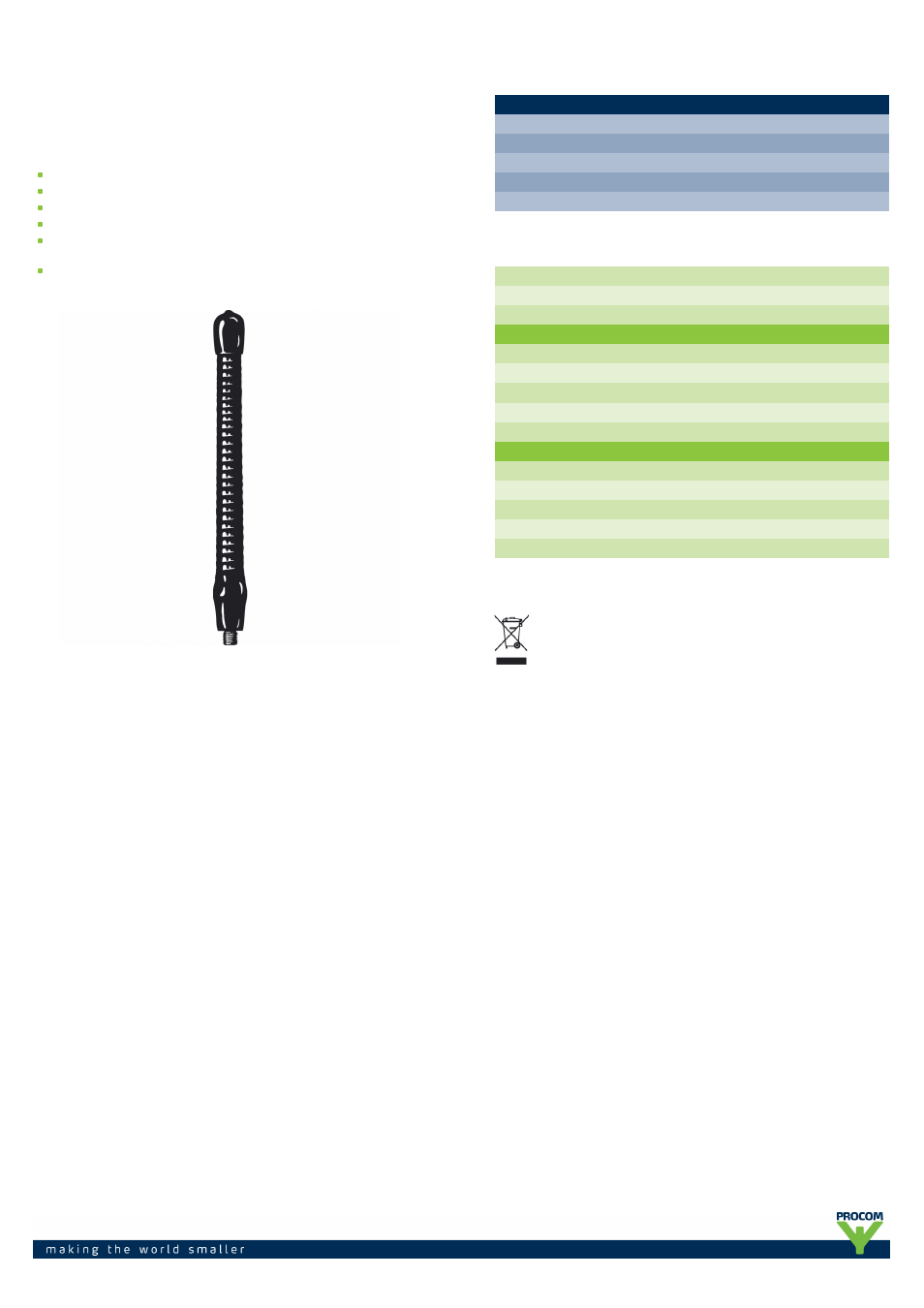

Helical Antenna Especially Accomodated to the Stornophone
4000 Handportable for the 150 MHz Band
DESCRIPTION
Flexible, conical steel helix moulded in flexible thermoplastic rubber.
Reduced-size ¼ λ helical antenna whip.
Optimum performance compared to physical dimensions.
Nice and compact design.
5 different models covering band segments of 10 MHz within
145 – 175 MHz.
Especially designed for the Stornophone CQP 4000
(150 MHz band).
ORDERING DESIGNATIONS
MODEL PRODUCT NO. FREQUENCY RANGE
AN 4113 A 140000363 145 – 155 MHz
AN 4113 B 140000086 150 – 160 MHz
AN 4113 C 140000351 155 – 165 MHz
AN 4113 D 140000364 160 – 170 MHz
AN 4113 E 140000087 165 – 175 MHz
SPECIFICATIONS
ANTENNA DESIGNATION AN 4113 Y (Y: see model survey)
CUSTOMER PART NO.
AN 4113 A-E
PORTABLE EQUIPMENT Stornophone CQP 4000 (150 MHz)
ELECTRICAL
ANTENNA TYPE Shortened ¼ λ helical antenna
FREQUENCY 140 – 175 MHz covered by 5 models
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
SWR ≤ 2.0 within the 10 MHz segments
MECHANICAL
MATERIALS Steel helix moulded in flexible thermoplastic rubber
COLOUR Black
TOTAL HEIGHT Approx. 140 mm
WEIGHT Approx. 28 g
CONNECTOR M6 x 0.75 thread stud
PROCOM A/S reserve the right to amend specifications
without prior notice.
11/03/11
