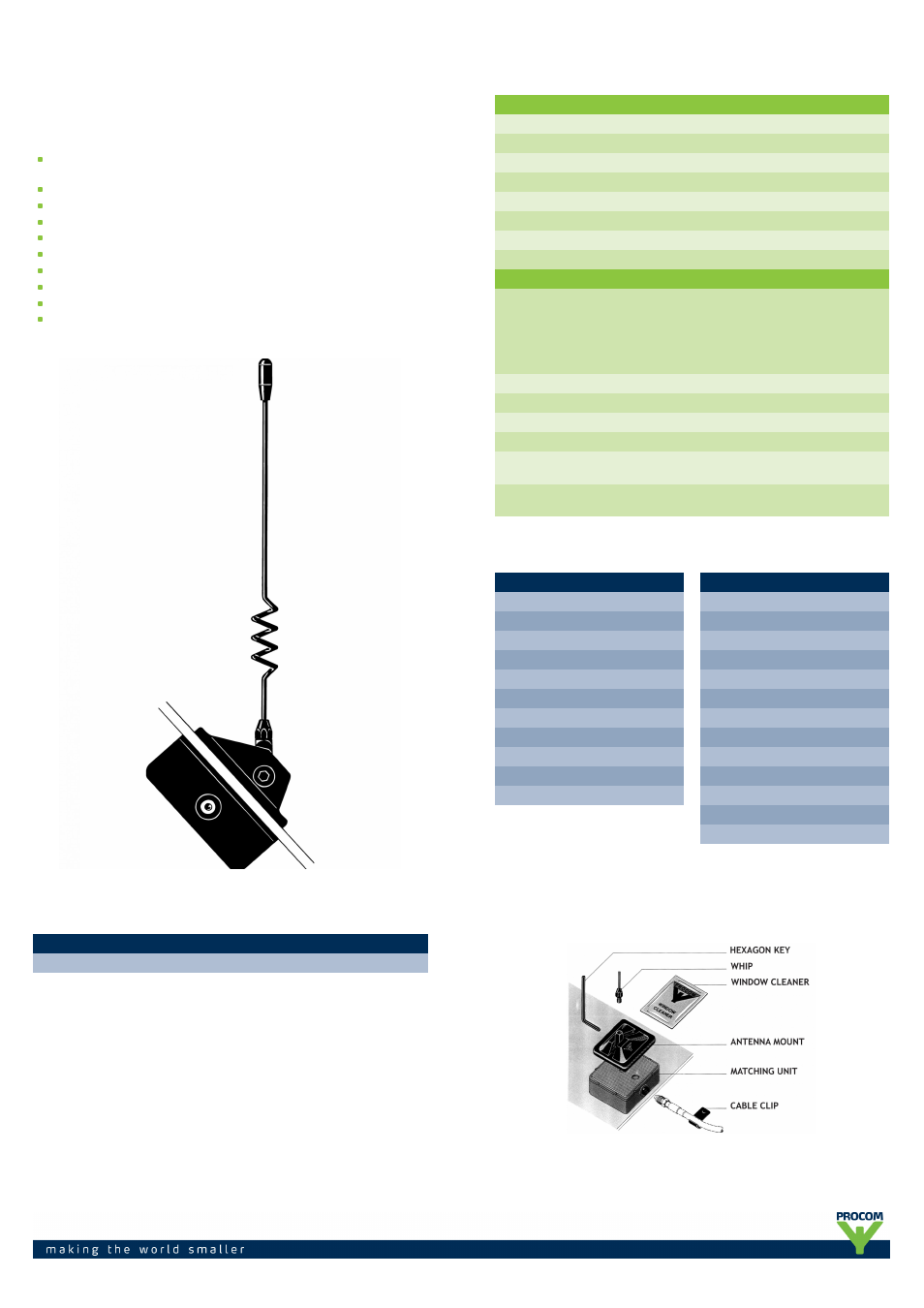

GF 1804
Mobile GlassFix® Antenna for the 1800 MHz Band
DESCRIPTION
Colinear mobile antenna for the 1800 MHz band (e.g. DCS-1800/PCN)
using the GlassFix® mounting principle.
Mounting on car window glass – no holes required.
Instant-adhesion procedure ensures fast and reliable fixing.
Internal matching unit feeds external antenna through window glass.
Half-wave colinear design – no ground plane required.
FME FastCabling system (cable to be ordered separately).
Simple tuning procedure by means of tuning screw on matching unit.
Easy removable whip for car wash.
Swivel joint for 180° angle adjustment.
If removal of antenna installation is necessary, a quick dismantling
procedure leaves no trace of the installation.
NOTE: GF antennas are notsuitable for car models with windows that have heat reflective coating.
ORDERING DESIGNATIONS
TYPE NO. PRODUCT NO.
GF 1804 130001514
SPECIFICATIONS
ELECTRICAL
MODEL GF 1804
ANTENNA TYPE Colinear mobile GlassFix®antenna
FREQUENCY 1800 MHz-band (1700 - 1900) MHz
IMPEDANCE Nom. 50 Ω
POLARISATION Vertical
BAND WIDTH ≥ 170 MHz @ SWR ≤ 1.75
SWR ≤ 1.3 @ f.res.
MAX. POWER 25 W
MECHANICAL
MATERIALS Whip:
Stainless steel and brass, black-chromed
Mount and indoor unit:
Environment-proof plastics
Corrosion-safe
and corrosion-protected metals
CABLE FME-cable to be ordered separately
COLOUR Black
HEIGHT Approx. 110 mm
WEIGHT Approx. 60 g
MOUNTING On car windows (52 mm x 47 mm obstruction-free
mounting area required)
GLASS
THICKNESS
2.5 – 7.0 mm
FME-SYSTEM ACCESSORIES
FME-CABLES
LENGTH TYPE NO.
1 m 1 m FME
2 m 2 m FME
3 m 3 m FME
4 m 4 m FME
5 m 5 m FME
6 m 6 m FME
4 m white 4 m FME-white
6 m white 6 m FME-white
12 m white 12 m FME-white
18 m white 18 m FME-white
FME-CONNECTORS
CONNECTOR ORDER NO.
FME-FME FME-FME
Prolongation FMEP
N FME-N
FSMA FME-FSMA
BNC FME-BNC
TNC FME.TNC
UHF FME-UHF
Mini-UHF FME-MUHF
Elbow-MUHF FME-EMUHF
Elbow-BNC FME-EBNC
Elbow-TNC FME-ETNC
SMA FME-SMA
For further information about other types of FME-cables please compare the cable data sheets under
accessories in our catalogue.
ASSEMBLY DETAILS
Glue option
