LHB 80/88-E
Diplexer for Mobile Telephone (66 - 86 MHz) and Car Radio
(0 - 15 MHz and (88) - 91 - 108 MHz)
DESCRIPTION
Diplexer for simultaneous operation of mobile telephone and car radio
on a common mobile telephone antenna.
Extremely small dimensions.
Quick installation using dual-adhesive pad provided.
FME-connections on antenna and transceiver terminals
- CRC (M10 x 0.75) connection on the car radio terminal.
1 m or 5 m Procom 75 Ohm car radio cable available as an option.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
LHB 80/88-E 200000787
SPECIFICATIONS
ELECTRICAL
MODEL LHB 80/88-E
FREQUENCY Mobile telephone: 66 - 86 MHz
Car radio: 0 - 15 MHz and
(88) - 91 - 108 MHz
MAX. INPUT POWER 35 W
INSERTION LOSS 0 - 15 and 91 - 108 MHz: < 2.5 dB
(88 MHz: < 5.0 dB)
66 - 80 MHz: < 1.5 dB
80 - 86 MHz: < 2.0 dB
ISOLATION Low to high port:
>20 dB @ 86 MHz
>20 dB @ 91 - 108 MHz
>35 dB @ 66 - 80 MHz
IMPEDANCE Transceiver : 50 Ω
Car radio : 75 Ω
MECHANICAL
TEMP. RANGE –30° C → +70° C
CONNECTORS TX/RX : FME
Car radio: CRC-Connector (M10 x 0.75)
Antenna : FME
DIMENSIONS (W x H x D) 50 x 21 x 60 mm
WEIGHT Approx. 67 g
ACCESSORIES Car radio cable
Type 1 m CRC (length 1 m)
Type 5 m CRC (length 5 m)

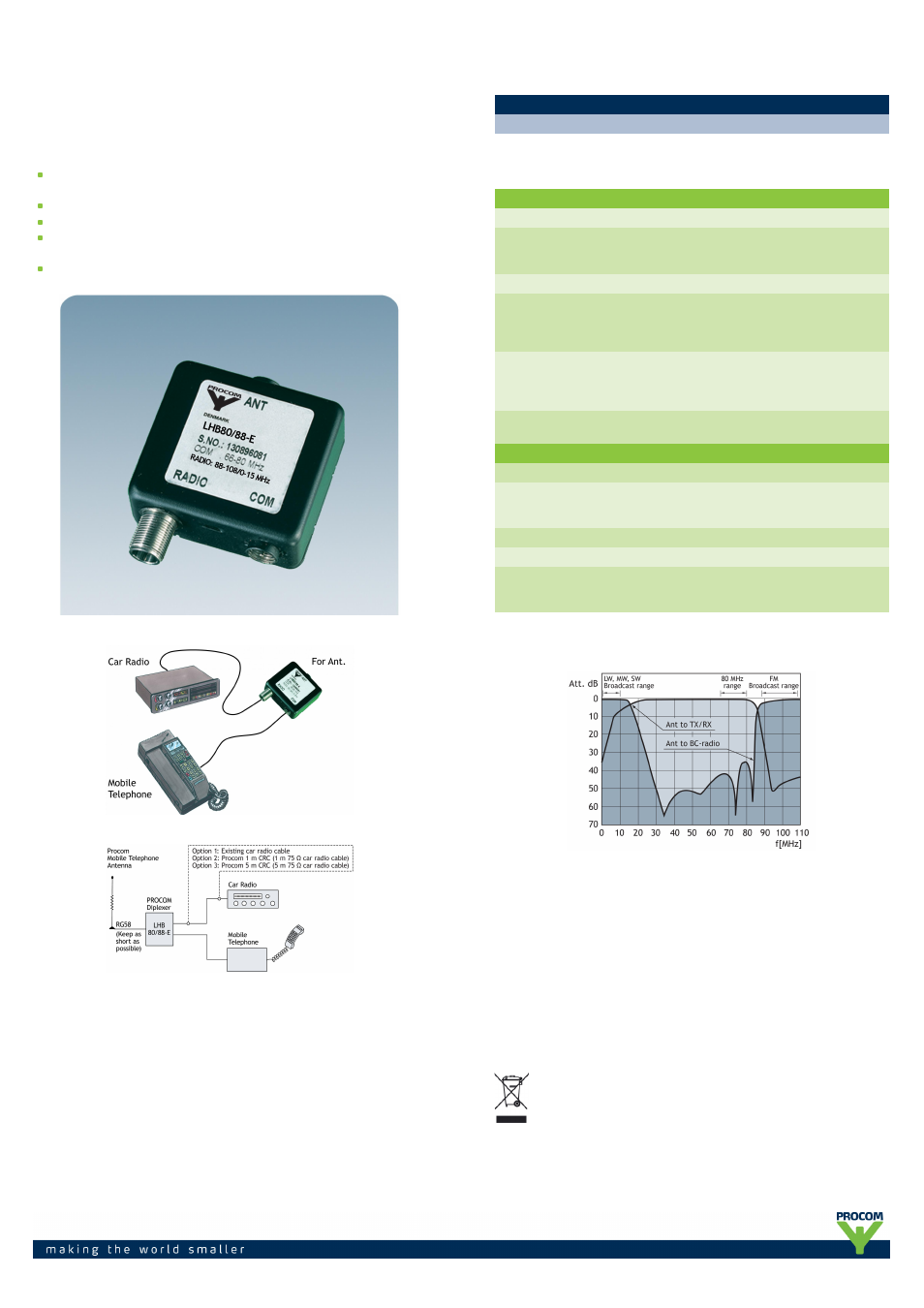

TYPICAL RESPONSE CURVES
INSTALLATION NOTES
The 50 Ω cable between antenna and diplexer should be kept as 1.
short as possible (preferably not over 1 m).
Some communication antennas have insufficient height to ensure
2.
satisfactory broadcast reception. Antenna whips with loading coils or
matching networks may affect broadcast reception.
Tuning: The antenna is tuned for best SWR at the operating
3.
frequency as usual. The filter is factory-tuned and ready for
installation. The car radio is tuned for optimum reception on the MW-
band by means of the antenna tuning screw (if present).
