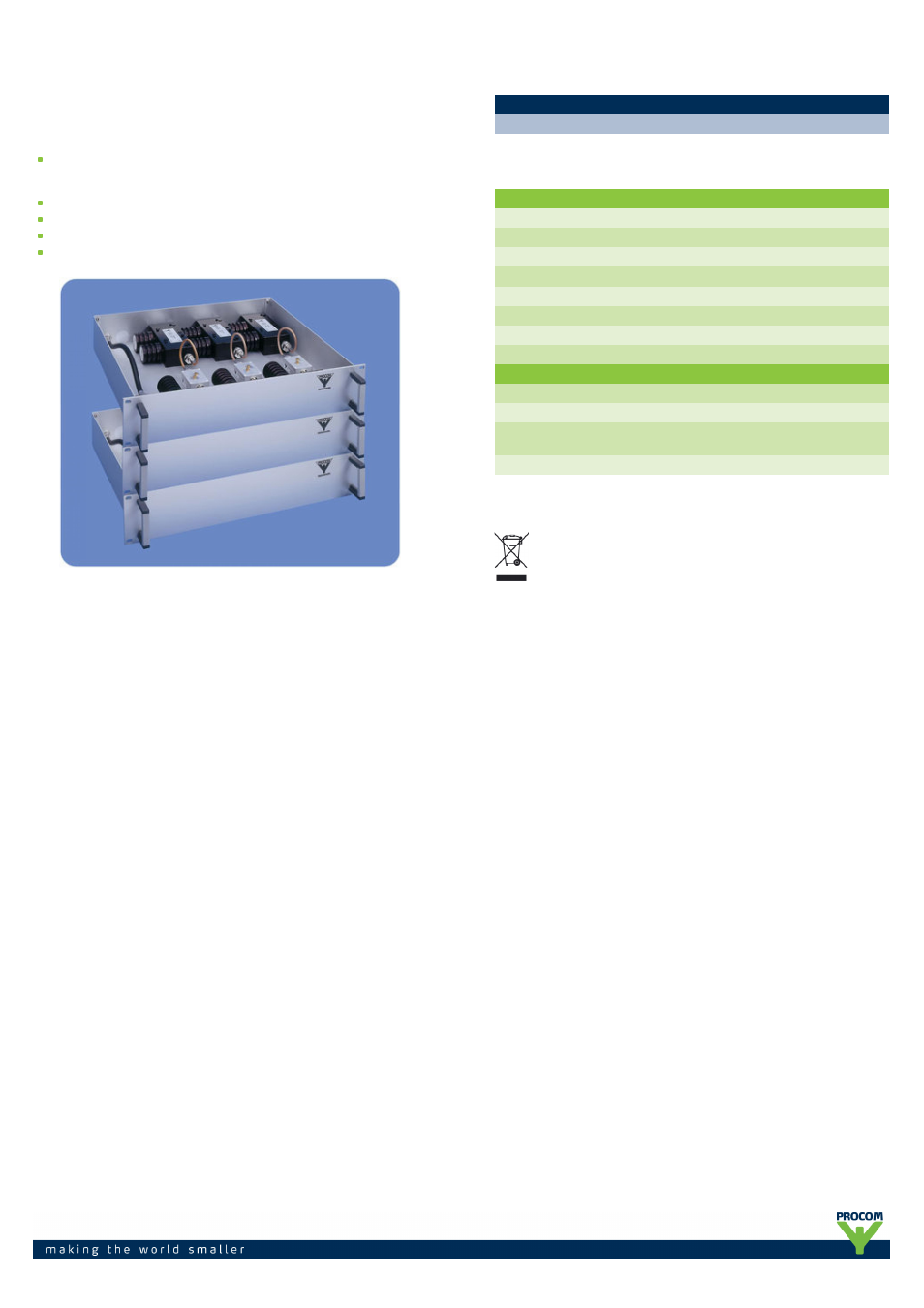

PRO-PHY450-6DI-100

6-Channel Hybrid Combiner for 100 W

DESCRIPTION

The PRO-PHY series of hybrid combiners has been designed to help

identify the optimum solution for combining several transmitters into

one antenna.
All hybrid combiners are suitable for 19” rack mounting.
Dual isolators fitted as standard.
Maximum input power of 100 W.
Please specify the frequencies for TX when ordering.

ORDERING DESIGNATIONS

TYPE

PRODUCT NO.

PRO-PHY450-6DI-100

210000901

SPECIFICATIONS

ELECTRICAL

MODEL

PRO-PHY450-6DI-100

TX FREQUENCY

380 - 470 MHz

MAX. INPUT POWER

100 W

TX-TX SPACING, Δ

TX

< 11 MHz

TYP. INSERTION LOSS

9.1 dB

TX-TX ISOLATION

> 90 dB

IMPEDANCE

Nom. 50 Ω

SWR

≤ 1.5

MECHANICAL

TEMP. RANGE

–30° C → +60° C

CONNECTORS

N-female

DIMENSIONS (H x W x L

(H x W x L) Alternative

6HU x 483 x 500 mm (267 x 483 x 500 mm)

8HU x 483 x 400 mm (356 x 483 x 500 mm)

WEIGHT

Approx. 25 kg

PROCOM A/S reserve the right to amend specifications

without prior notice.
21/10/11
