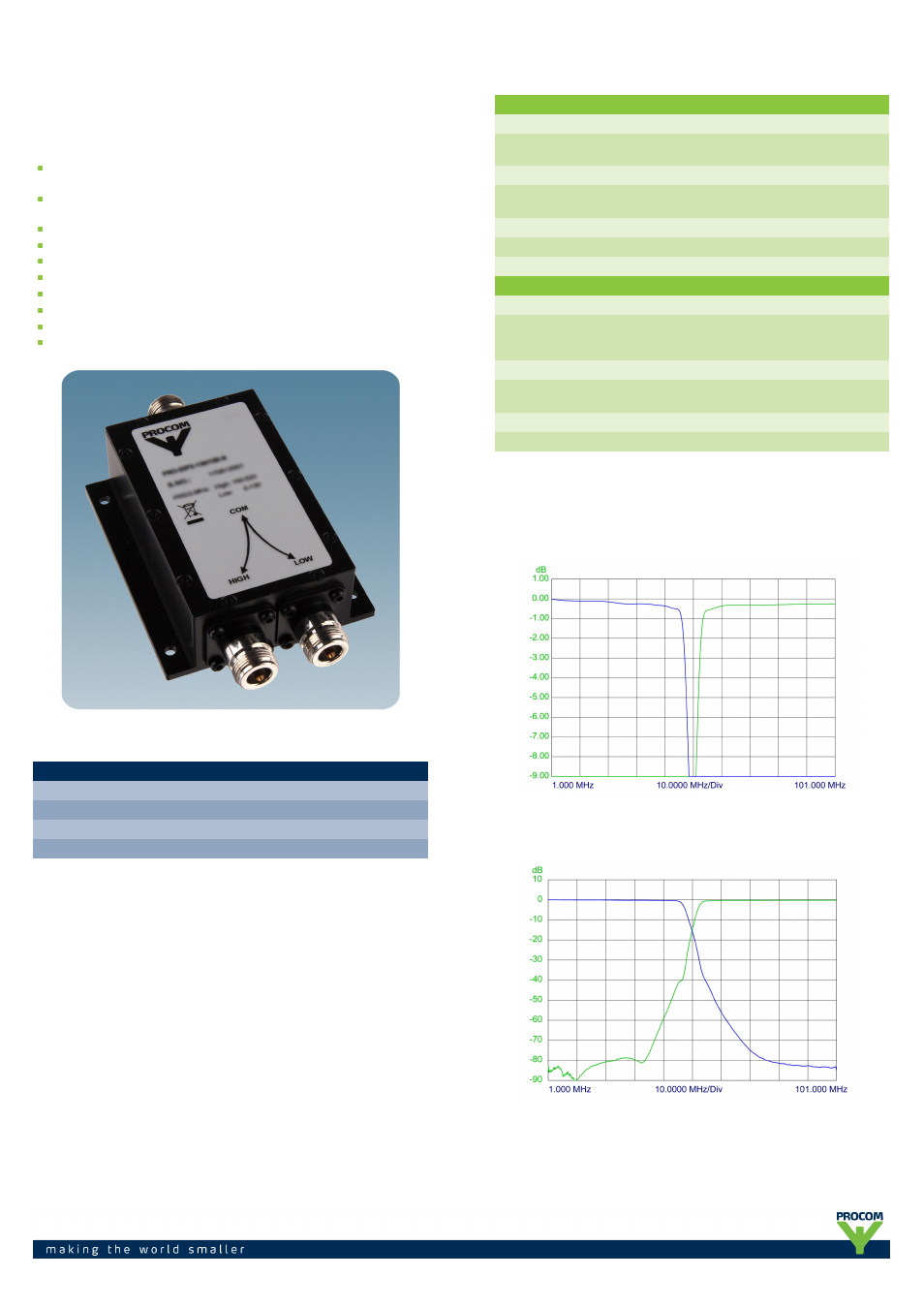

Procom PRO-DIPX 44-56-... User Manual
Pro-dipx 44/56

PRO-DIPX 44/56-…
100 W Diplexer for the 0 - 44 MHz and 56 - 960 MHz
Ranges
DESCRIPTION
Diplexer for combining or splitting the two ranges 0 – 44 MHz
and 56 – 960 MHz.
Chebychev design ensures very high isolation across the whole pass
ranges.
High power handling capability.
Low insertion loss.
Low weight.
Wide temperature range.
Milled aluminium box ensures extraordinarily high mechanical strength.
Black vinyl-coated to prevent corrosion.
N-connectors on all ports (standard).
Also available with SMA-, TNC- or BNC- connector types.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
PRO-DIPX 44/56-N
200002271
PRO-DIPX 44/56-SMA
200002223
PRO-DIPX 44/56-TNC
200002272
PRO-DIPX 44/56-BNC
200002273
SPECIFICATIONS
ELECTRICAL
MODEL
PRO-DIPX 44/56-…
FREQUENCY
COM-LOW port: 0 - 44 MHz
COM-HIGH port: 56 - 960 MHz
MAX. RF POWER
100W CW simultaneously on both HIGH and LOW port
INSERTION LOSS
0 - 44 MHz: ≤ 0.6 dB
56 - 960 MHz: ≤ 0.6 dB
ISOLATION
LOW to HIGH port: ≥40 dB
IMPEDANCE
Nom. 50 Ω
SWR
Max. 1.5:1 on all ports
MECHANICAL
TEMP.RANGE*
-40° C to +60° C
CONNECTORS
INPUT: N-female
OUTPUT: N-female
(Other types available on request)
IP RATING
IP62
DIMENSIONS
(L x W x H)
133 x 80 x 31 mm / 5.24 x 3.15 / 1.22 in.
(incl. connectors and flanges)
WEIGHT
Approx. 380 g / 0.84 lb.
MOUNTING
ø4.3 mm / ø0.17 in. (4 holes)
* Temperature on box surface. Adequate cooling to keep max. temperature
below +60° C must be provided.
TYPICAL RESPONSE CURVES
INSERTION LOSS [dB]
TYPICAL RESPONSE CURVES
PORT ATTENUATION [dB]
