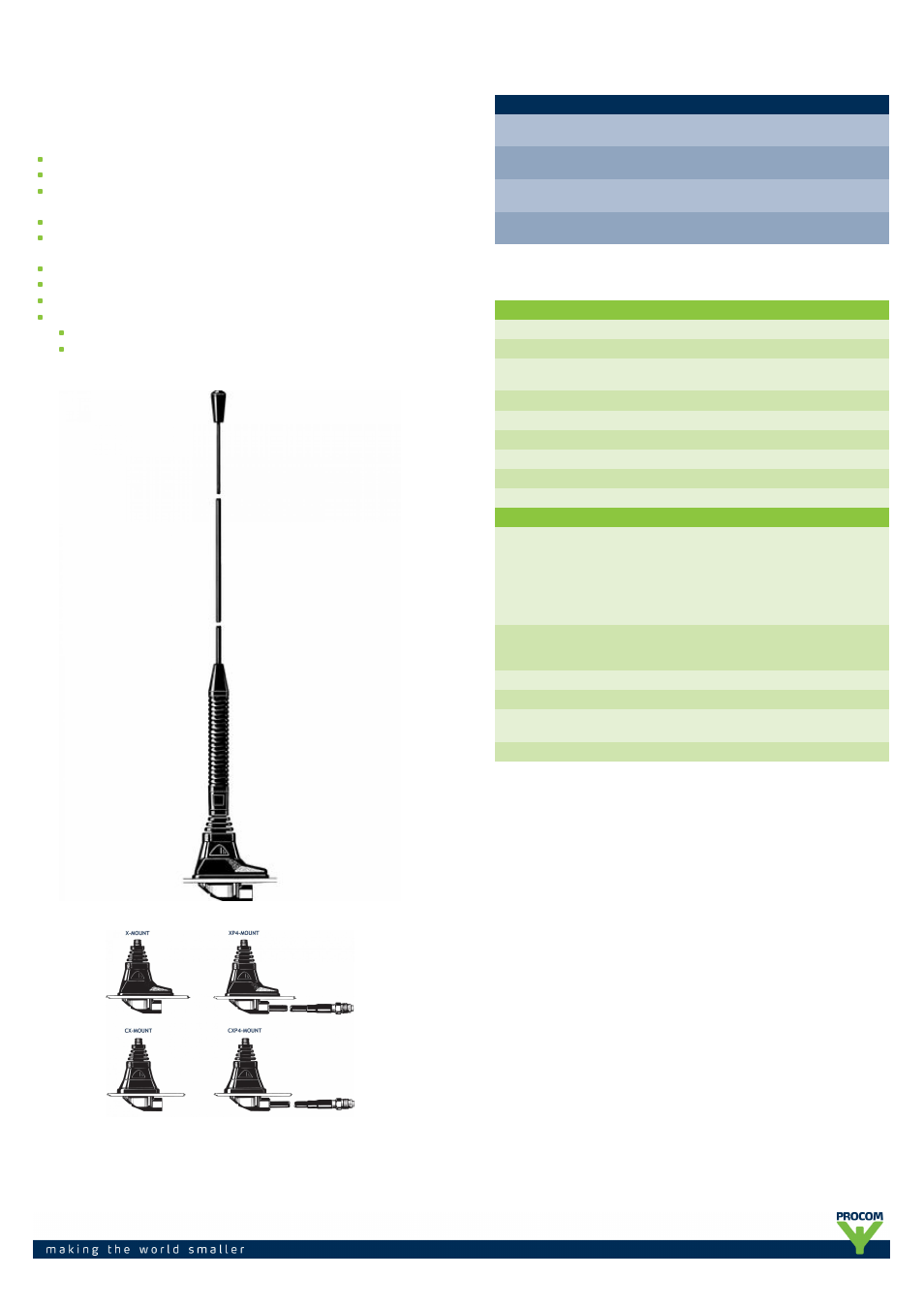

Procom ML 3-XR User Manual
Ml 3-xr

ML 3-XR
¼ λ Mobile Antenna for the 80 MHz Band
DESCRIPTION
Black-chromed, conical stainless steel whip with shock spring.
Whip design for optimum wind noise reduction.
Elegant transition between whip and mounting surface due to slim-line
mount.
30° tiltable whip.
Ideal for installation on the narrow strip on rear wing between trunk lid
and side of car.
Stainless steel X-mount with M6-thread whip-fastening system.
Simple mounting exclusively with access from the outside.
Models available with X-mount (oblong) and CX-mount (circular).
Choice between two connection principles:
X-mount: FME-connection (supplied without cable).
XP4-mount: Permanently attached 4 m cable terminated with FME-
connector.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
MOUNT VERSION
ML 3-XR
130001457
X-mount (oblong) with
FME-system
ML 3-CXR
130000652
CX-mount with
FME-system (circular)
ML 3-XP4R
130001339
XP4-mount with 4 m cable and
FME-connector (oblong)
ML 3-CXP4R
130001435
CXP4-mount with 4 m cable and
FME-connector (circular)
SPECIFICATIONS
ELECTRICAL
MODEL
ML 3-XR
ANTENNA TYPE
¼ λ mobile whip antenna
FREQUENCY
Tunable by cutting within: 66…88 MHz
(Also applicable: 88…175 MHz)
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Vertical
GAIN
0 dB (acc. to EIA RS-329-1)
BANDWIDTH
≥ 8 MHz @ SWR ≤ 2.0
SWR
≤ 1.3 @ f. res.
MAX. POWER
250 W
MECHANICAL
MATERIALS
Whip:
Black-chromed, conical stainless steel
Black-chromed brass
Mount:
Black-chromed brass
Weather- and shockproof plastics
Stainless steel
RECOMMENDED
INSTALLATION
TORQUE
4 ± 1 Nm
COLOUR
Black
HEIGHT
Approx. 1.1 m (dep. on freq.)
WEIGHT
X-version: Approx. 110 g
XP4-version: Approx. 270 g
MOUNTING
18 mm dia. hole
