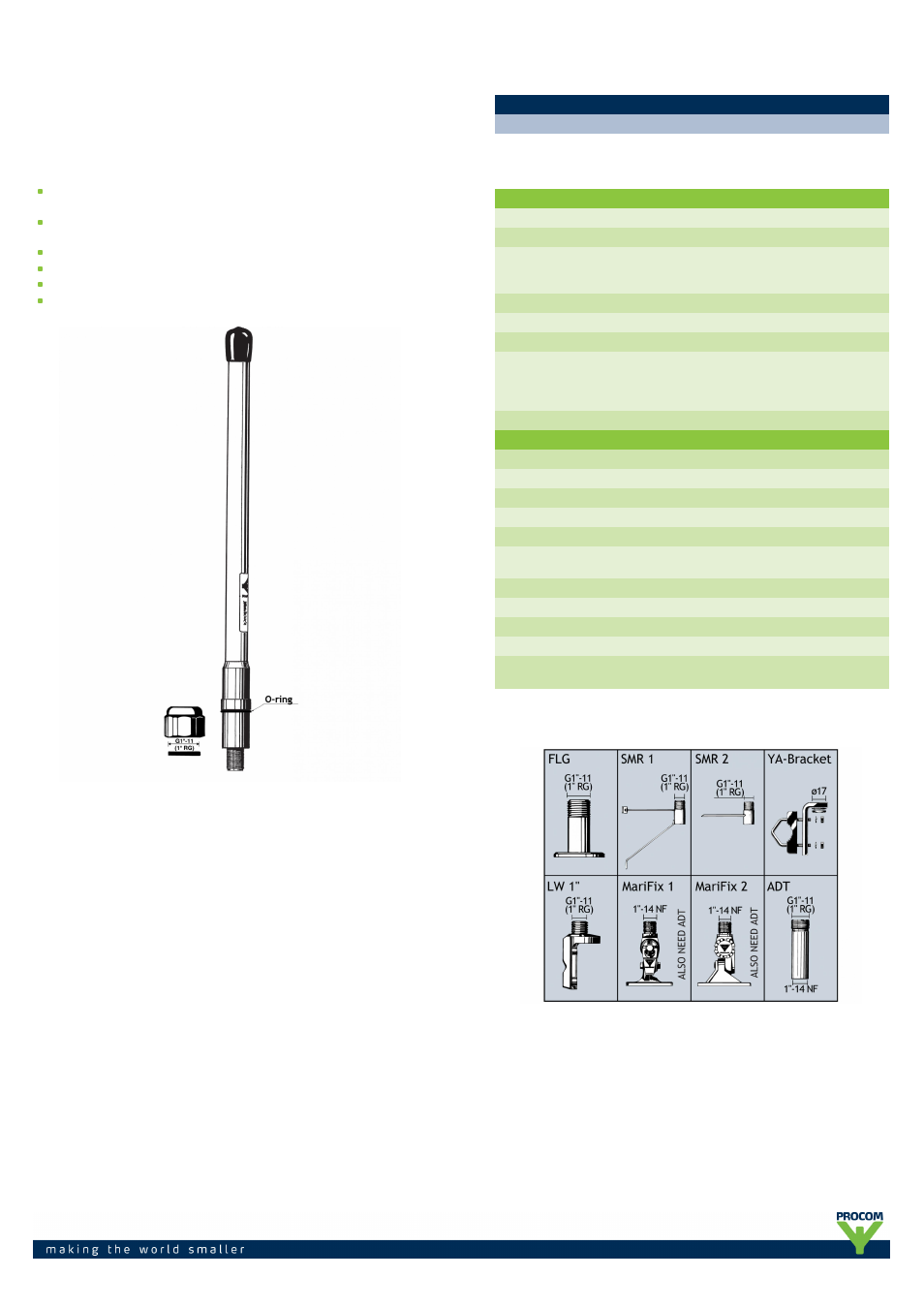

Procom CXL 900-1800-1900-UMTS - Manual

CXL 900/1800/1900/UMTS
Quadruple-Band Base Station and Marine Antenna for the
900 MHz, 1800 MHz, 1900 MHz and the 2000 MHz
Bands
DESCRIPTION
Quadruple-Band base station and marine antenna – four bands with only
one antenna.
Covering both GSM/NMT-900, DCS-1800/PCN (GSM 900/1800) PCS-
1900 and UMTS.
Particularly suitable for use with triple-band mobile phones.
Unity gain on all bands.
Simple mounting using the 1” revolving nut system.
Wide variety of accessory mounting brackets available.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
CXL 900/1800/1900/UMTS 110000230
SPECIFICATIONS
ELECTRICAL
MODEL CXL 900/1800/1900/UMTS
ANTENNA TYPE Quadruple-Band base station and marine antenna
FREQUENCY 800-960 MHz/1710-1880 MHz/1850-1990 MHz/
1900-2200 MHz
(GSM 900/DCS-1800/PCS-1900/UMTS)
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN Approx. 0 dBd (all bands)
SWR GSM @ ≤ 2.0
DCS-1800 @ ≤ 2.0
PCS-1900 @ ≤ 3.0
UMTS @ ≤ 3.0
MAX. POWER 100 W
MECHANICAL
TEMP. RANGE -30°C → +70°C
CONNECTOR N-female
WIND SURFACE Approx. 0.013 m²
WIND LOAD Approx. 17 N @ 160 km/h
COLOUR Marine white
MATERIALS Shroud: Polyurethane-coated glass fibre
Mounting bracket: Chromed brass
TOTAL HEIGHT Approx. 450 mm
DIA. IN TOP END 21 mm
DIA. IN BOTTOM END 23 mm
WEIGHT Approx. 300 g
MOUNTING On 1” RG (G1” - 11) threaded water pipe or
on optional mounting brackets (see below)
ACCESSORIES (to be ordered separately)
