Procom MLH 6-2-bz - Manual (Page 2)

INSTALLATION
This antenna is provided with type BZ-mount. The whip is fastened to the
mount by means of our standard ball-joint and wing screw system. The
adjustable ball-joint ensures that the whip can always be mounted in a
vertical position independent of the angle of the installation spot.
The BZ-mount is particularly well suited for mounting on car-roofs because
of its ability to be installed exclusively with access from the outside. The BZ-
Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the
inside. However, the antenna can be installed anywhere on the car, as the
BZ-mount is equally well suited for mounting on e.g. trunk or wing.

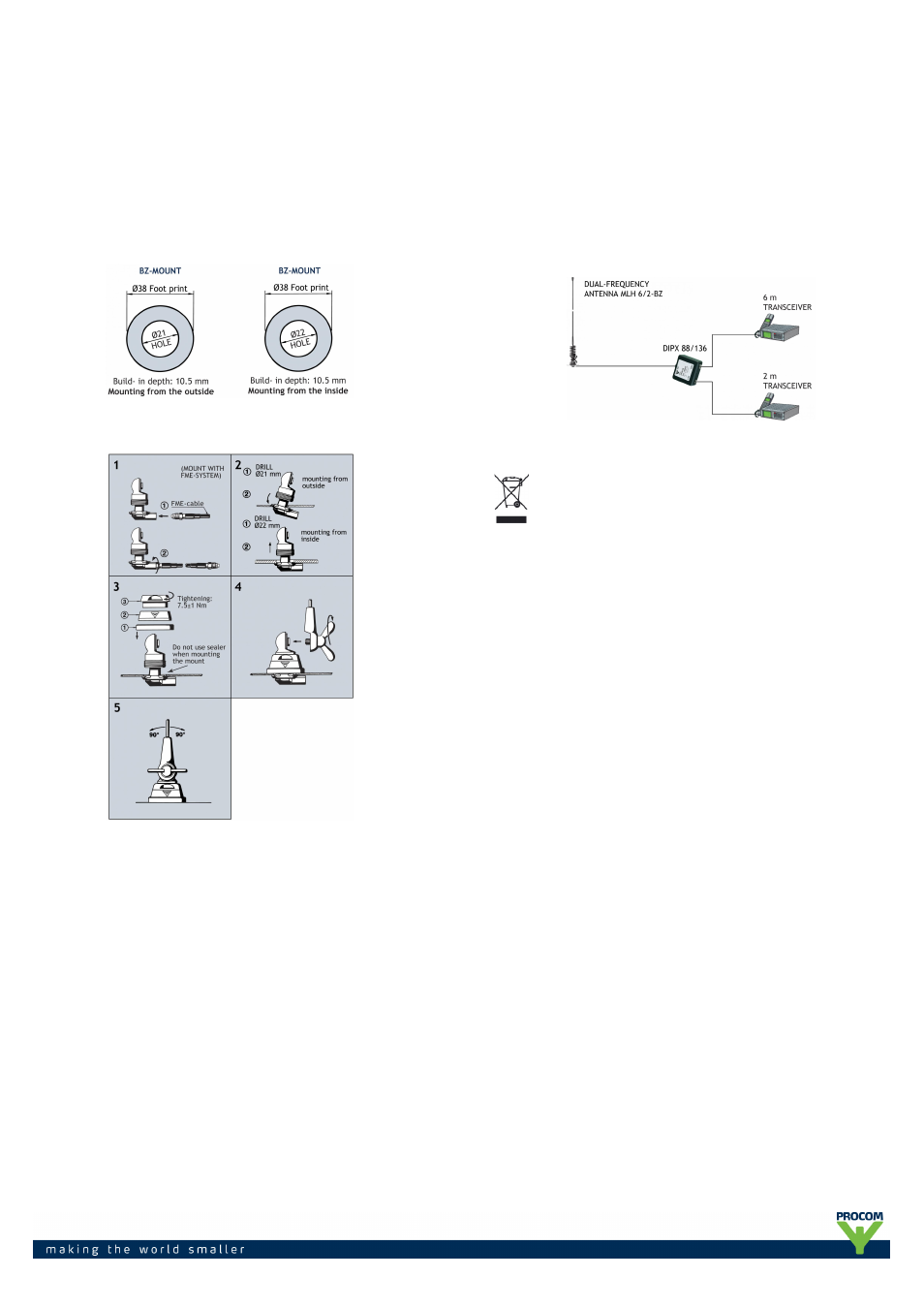

1. INSTALLATION DIMENSIONS
2. INSTALLATION STEPS
Do not use sealer on rubber gasket or other places.
3. TUNING
The antenna is delivered factory-tuned and requires no further tuning.
4. OPERATING USING A DIPLEXER
This antenna makes it possible to operate two transceivers at the same
time. In this case, a diplexer type DIPX 88/136 is neccessary to complete
the system ( see the coupling diagram below). The tasks of the diplexer are
to protect the two receiver inputs from being destroyed by the transmitter in
the contrary band, and to ensure a low-loss path between the transceiver
and the antenna, which is not loaded by the other branch. For further details
please see the separate data sheet on the DIPX 88/136. The diplexer fully
covers both bands and, consequently, tuning to specific frequencies is not
required.
PROCOM A/S reserve the right to amend specifications
without prior notice.
06/04/11
