Procom PRO-phy450-5di3-... User Manual
Procom Accessories communication

PRO-PHY450-5SI3-...
PRO-PHY450-5DI3-...
5-Channel Compact Hybrid Combiners with single or duel
isolators
DESCRIPTION
The compact 5-channel hybrid combiner has been designed to help
where a physical small size is of great importance. Also the insertion loss
is equal and low for all five channels.
The hybrid is used where 5 TX-channels, with very little (or no)
frequency spacing, are combined into one antenna.
The hybrid combiner is for 19” rack mounting.
Dual isolators are fitted as standard.
Options: Maximum input of 50 or 100 W.
Please specify the frequencies for each TX when ordering.

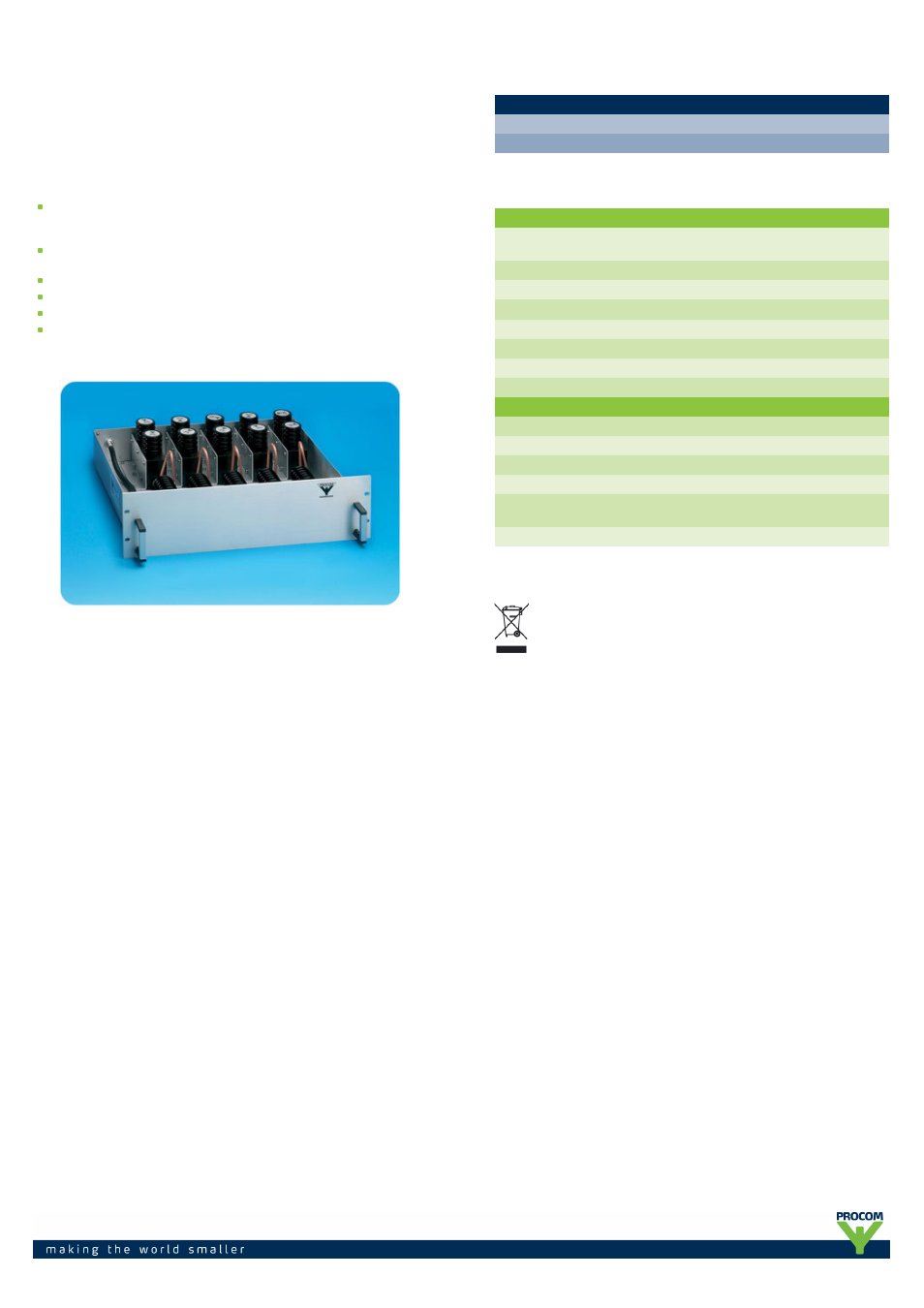

PRO-PHY450-5DI3-35
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
PRO-PHY450-5DI3-35
210000716
PRO-PHY450-5SI3-35
210000710
SPECIFICATIONS
ELECTRICAL
MODEL
PRO-PHY450-5DI3-
35
PRO-PHY450-5SI3-
35
TX FREQUENCY
380 - 470 MHz
380 - 470 MHz
MAX. INPUT POWER
35 W / 100 W
35 W / 100 W
TX-TX SPACING, Δ
TX
0 < TX < 20 MHz
0 < TX < 20 MHz
TYP. INSERTION LOSS
9 dB
8.6 dB
TX-TX ISOLATION
≥ 90 dB
≥ 70 dB
IMPEDANCE
Nom. 50 Ω
Nom. 50 Ω
SWR
≤ 1.5
≤ 1.5
MECHANICAL
TEMP. RANGE
–30° C → +60° C
–30° C → +60° C
CONNECTORS
N-female
N-female
DIMENSIONS (L x W x H) 35 W
483 x 133 x 400 mm
483 x 133 x 400 mm
WEIGHT 35 W
Approx. 11 kg
Approx. 10.5 kg
DIMENSIONS (L x W x H) 100
W
483 x 133 x 500 mm
483 x 133 x 500 mm
WEIGHT 100 W
Approx. 15 kg
Approx. 14 kg
PROCOM A/S reserve the right to amend specifications
without prior notice.
12/09/13
