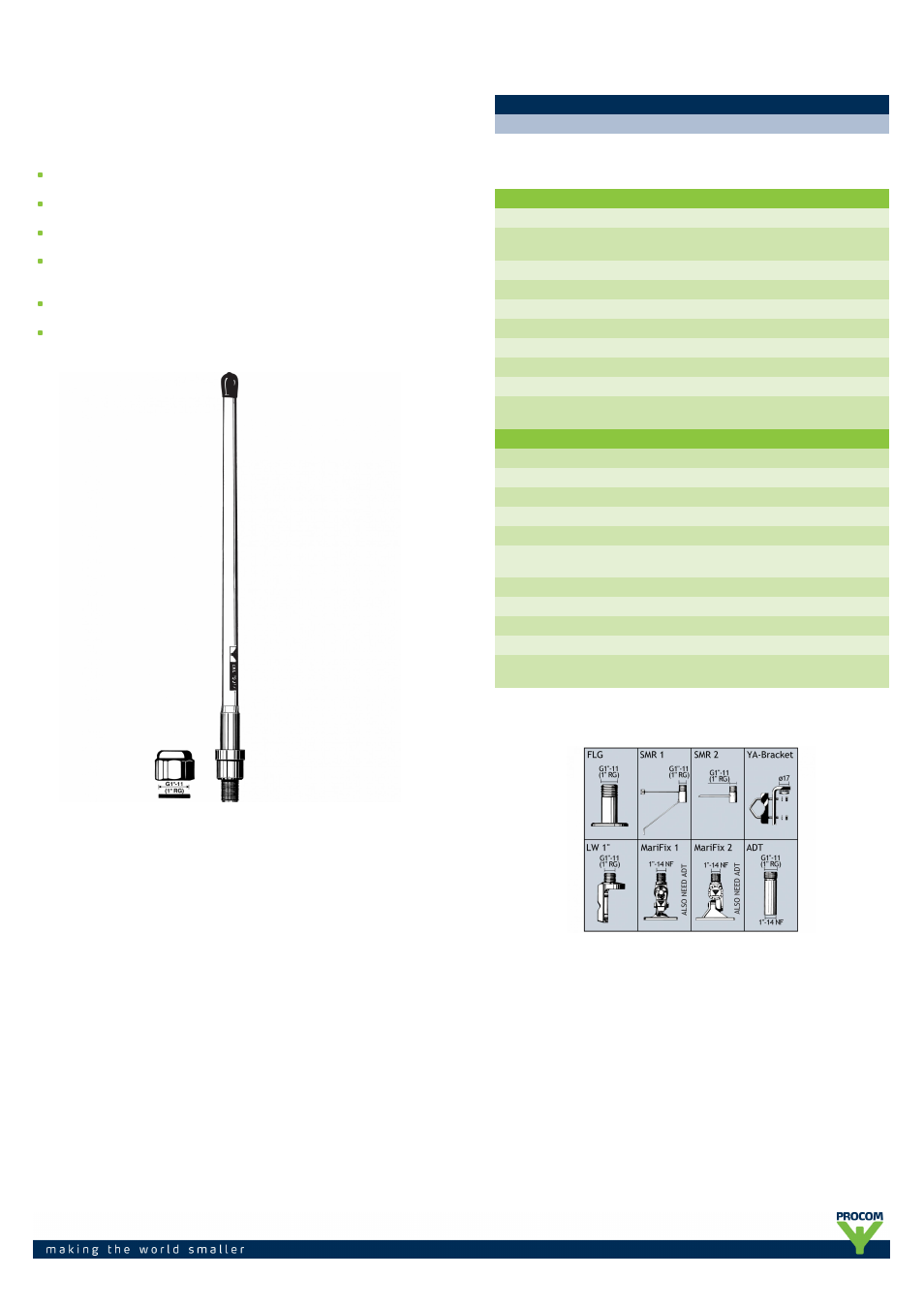

CXL 5700-6
6 dBd Omnidirectional Base Station and Marine Antenna for
the 5700 MHz Band
DESCRIPTION
Vertically polarized, omnidirectional base station and marine antenna.
Approximately 6 dBd gain.
Wide variety of accessory mounting brackets available.
Highly suitable for duplex operation with large spacing between the TX
and the RX frequencies.
The antenna element is sealed in a high-quality, conical glass fibre tube.
The CXL 5700-6 is a vibration-proof, lightweight, slim-line, corrosion
resistant, modern style base station and marine antenna.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
CXL 5700-6
100000291
SPECIFICATIONS
ELECTRICAL
MODEL
CXL 5700-6
ANTENNA TYPE
Coaxial, collinear antenna, broad-banded
with 3 - 5° electrical downtilt
FREQUENCY
5450 - 5750 MHz
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Vertical
GAIN
8 dBi 6 dBd
BANDWIDTH
≥ 300 MHz @ SWR ≤ 2.0
SWR
≤ 2.0
MAX. POWER
100 W
ANTISTATIC PROTECTION
All metal parts DC-grounded
(Connector shows a DC-short)
MECHANICAL
TEMP. RANGE
-30°C → +70°C
CONNECTOR
N-female
WIND SURFACE
Approx. 0.007 m²
WIND LOAD
Approx. 10 N @ 160 km/h
COLOUR
Marine white
MATERIALS
Shroud: Polyurethane-coated glass fibre
Mounting bracket: Chromed brass
TOTAL HEIGHT
Approx. 378 mm
DIA. AT TOP END
13 mm
DIA. AT BOTTOM END
16 mm
WEIGHT
Approx. 200 g
MOUNTING
On 1” RG (G1”-11) threaded water pipe or
on optional mounting brackets
ACCESSORIES (to be ordered separately)
