Procom G-CXL 2-1LW-... - Manual

G-CXL 2-1LW/...
Universal, Unity-Gain Base Station and Marine Antenna for
the 160 MHz Band. Designed for defense units.
DESCRIPTION
This multi-purpose, omnidirectional, 0 dBd, rod-type base station and
marine antenna covers the 160 MHz band in two models with 10 MHz
overlap and can be used in a wide variety of applications.
The broad-banded ½ λ dipole antenna element is sealed in a high-
quality conical glass fibre tube with low wind-load, which will ensure
undisturbed performance by corrosive environments.
Provided with the sturdy “LW” mast mount - a lightweight,
multipurpose, epoxy-coated mounting bracket made of non-corrosive
aluminium.
The cable can be led either on the outside or along the inside of the
mast tube.
Large bandwidth with respect to both SWR and gain.
G-CXL 2-1LW/… is DC-grounded to substantially reduce noise caused by
atmospherical discharges and consequently shows a DC-short across the
coaxial cable.
ORDERING DESIGNATIONS
TYPE PRODUCT NO. FREQUENCY
G-CXL 2-1LW/l 110000185 144 - 165 MHz
G-CXL 2-1LW/h 110000186 155 - 175 MHz
SPECIFICATIONS
ELECTRICAL
MODEL G-CXL 2-1LW/...
ANTENNA TYPE ½ λ coaxial dipol, broad-banded
FREQUENCY G-CXL 2-1LW/l: 144 - 165 MHz
G-CXL 2-1LW/h: 155 - 175 MHz
IMPEDANCE Nom. 50 Ω
RADIATION Omnidirectional
POLARISATION Vertical
GAIN 2 dBi 0 dBd
BAND WIDTH 20 MHz
SWR ≤ 1.5
MAX. POWER 150 W
ANTISTATIC
PROTECTION
All metal parts DC-grounded
(Connector shows a DC-short)
MECHANICAL
TEMP. RANGE -30°C → +70°C
CONNECTOR N-female
WIND SURFACE 0.0172 m²
WIND LOAD 22 N @ 160 km/h
COLOUR Green
MATERIALS Shroud: Polyurethane-coated glass fibre
Mounting bracket: Seawater resistant aluminium,
epoxy-coated
Clamps: Stainless steel
TOTAL HEIGHT Approx. 1.26 m (Dep. on frequency)
DIA. IN TOP END 8 mm
DIA. IN BOTTOM END 16 mm
WEIGHT Approx. 760 g
MOUNTING On 16 to 54 mm dia. mast tube

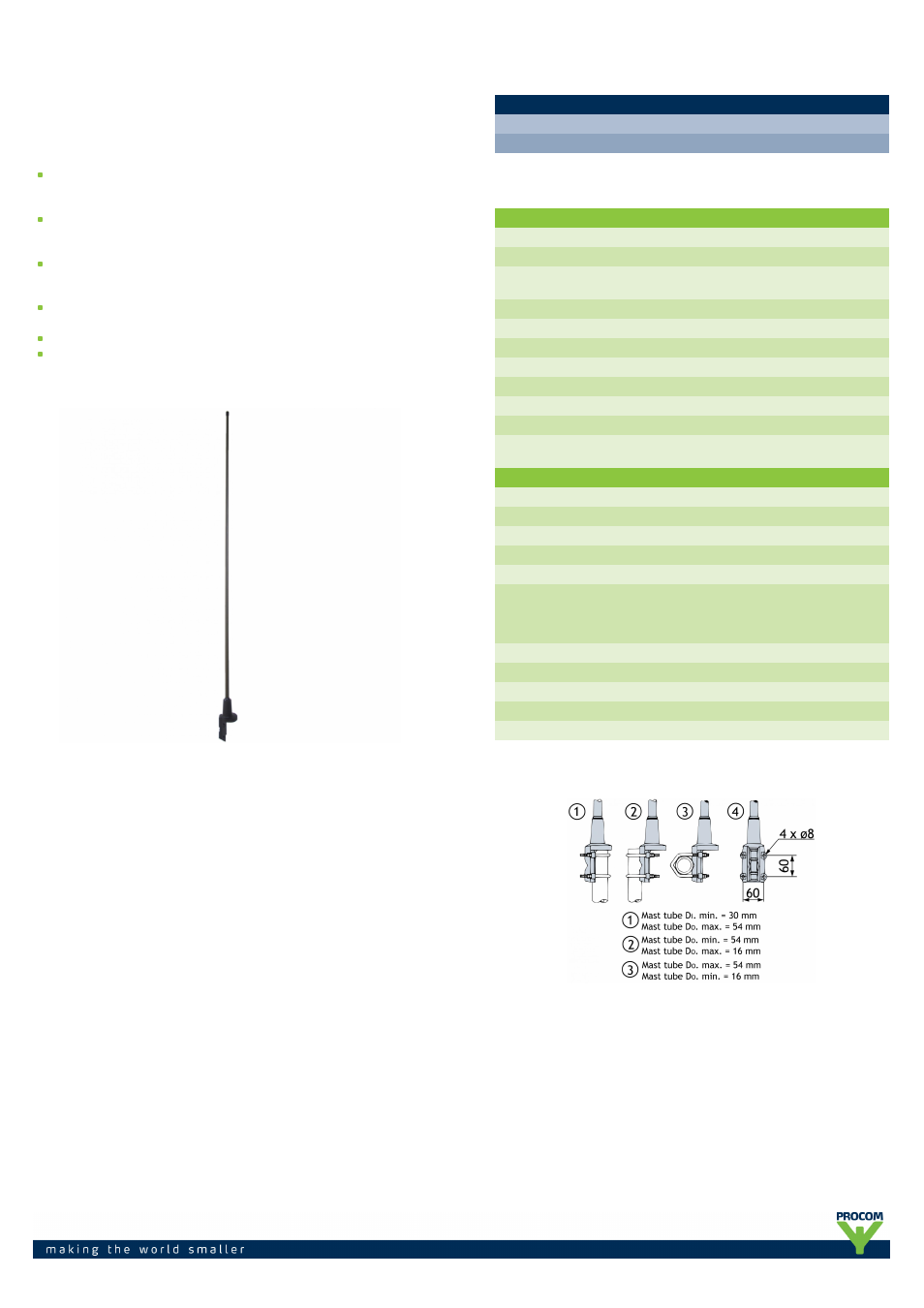

MULTI-PURPOSE MOUNTING BRACKET
