YA 1800
Low-Cost Holiday and Weekend Cottage Directional Antenna
for Cellular Networks in the 1800 MHz Band
DESCRIPTION
Low-cost and low-weight directional antenna.
Ideal for use on caravans, mobile homes and at weekend cottages.
Significant improvement of the quality of the mobile communitation in
areas with unsatisfactory coverage (YA 1800 to be directed towards the
nearest base station).
Approx. 10 dBi gain.
For use with 1800 MHz cellular networks (DCS 1800, PCN 1800, DECT
and similar networks).
For mobile telephones being used in “semi-stationary” installations.
“Built-in” mounting bracket.
Supplied with fittings and bolts for mounting on 30 - 50 mm diameter
mast tube.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
YA 1800 130001277
SPECIFICATIONS
ELECTRICAL
MODEL YA 1800
ANTENNA TYPE 7-element Yagi-antenna
FREQUENCY 1700 – 1900 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Linear (vertical or horizontal dep. on orientation)
GAIN 10 dBi
FRONT-TO-BACK-RATIO ≥ 15 dB
HALF-POWER BEAMWIDTH Approx. 50° (H-plane)
BANDWIDTH 200 MHz
SWR ≤ 1.5
MAX. POWER 25 W
MECHANICAL
MATERIALS Antenna: Gold aludine, Aluminium
Fittings: Stainless steel
COLOUR Aludine “gold”
TOTAL LENGTH 426 mm
MAX. ELEMENT HEIGHT 108 mm
WEIGHT 250 g (incl. bolts)
CONNECTORS FME-connector
(cable to be ordered separately)
MOUNTING On 30–50 mm dia. mast tube

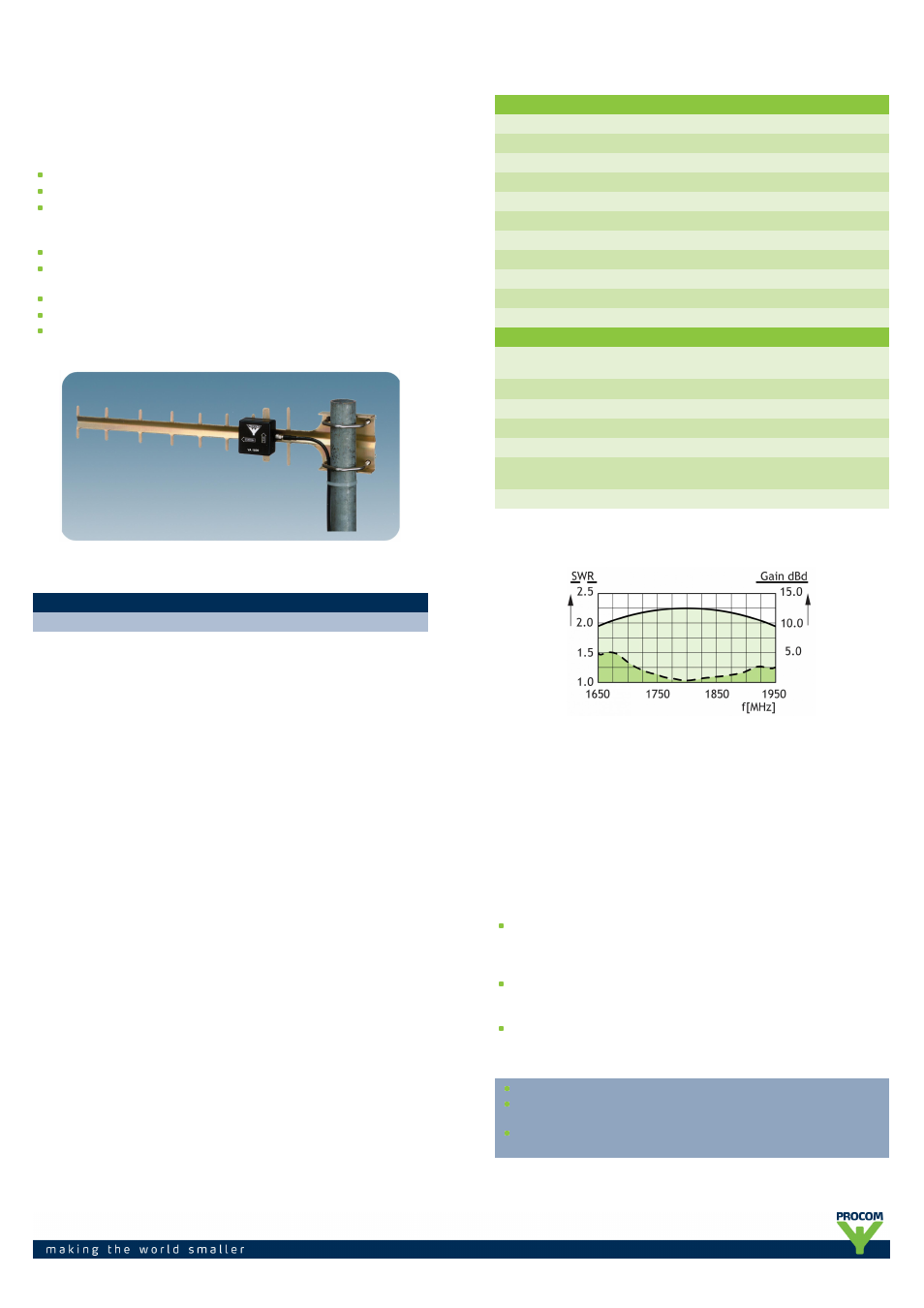

TYPICAL GAIN AND SWR CURVES
HOW TO USE THE ANTENNA
With the YA 1800 you will experience a significant improvement of the
quality of your communication on the 1800 MHz cellular networks (DCS
1800, PCN 1800, DECT and similar networks).
The antenna makes it possible to use your mobile telephone in areas with a
poor coverage and where it is sometimes very difficult to obtain and
maintain a satisfactory connection. The YA 1800 is ideal for use on caravans,
mobile homes, at weekend cottages and other places where the mobile
telephone is used in “semi-stationary” installations.
INSTALLATION STEPS
Mount the antenna on a 30-50 mm diameter mast tube using the
accompanying fittings and bolts (see illustration on the other page). The
antenna is to be oriented as indicated on the connection box of the
antenna.
Connect the antenna to the mobile telephone using an FME-cable of
appropriate length and an adapter for connection of an exterior antenna
to the handportable.
Direct the antenna towards the nearest base station for the 1800 MHz
cellular network in question. The correct direction may be determined
using the field strength indicator on the mobile telephone:
Turn on the telephone and note the field strength level on the indicator.
Rotate the antenna (in the horizontal plane) while observing the field
strength indicator.
Choose the direction in which the highest field strength level isobserved
and fasten the antenna.
