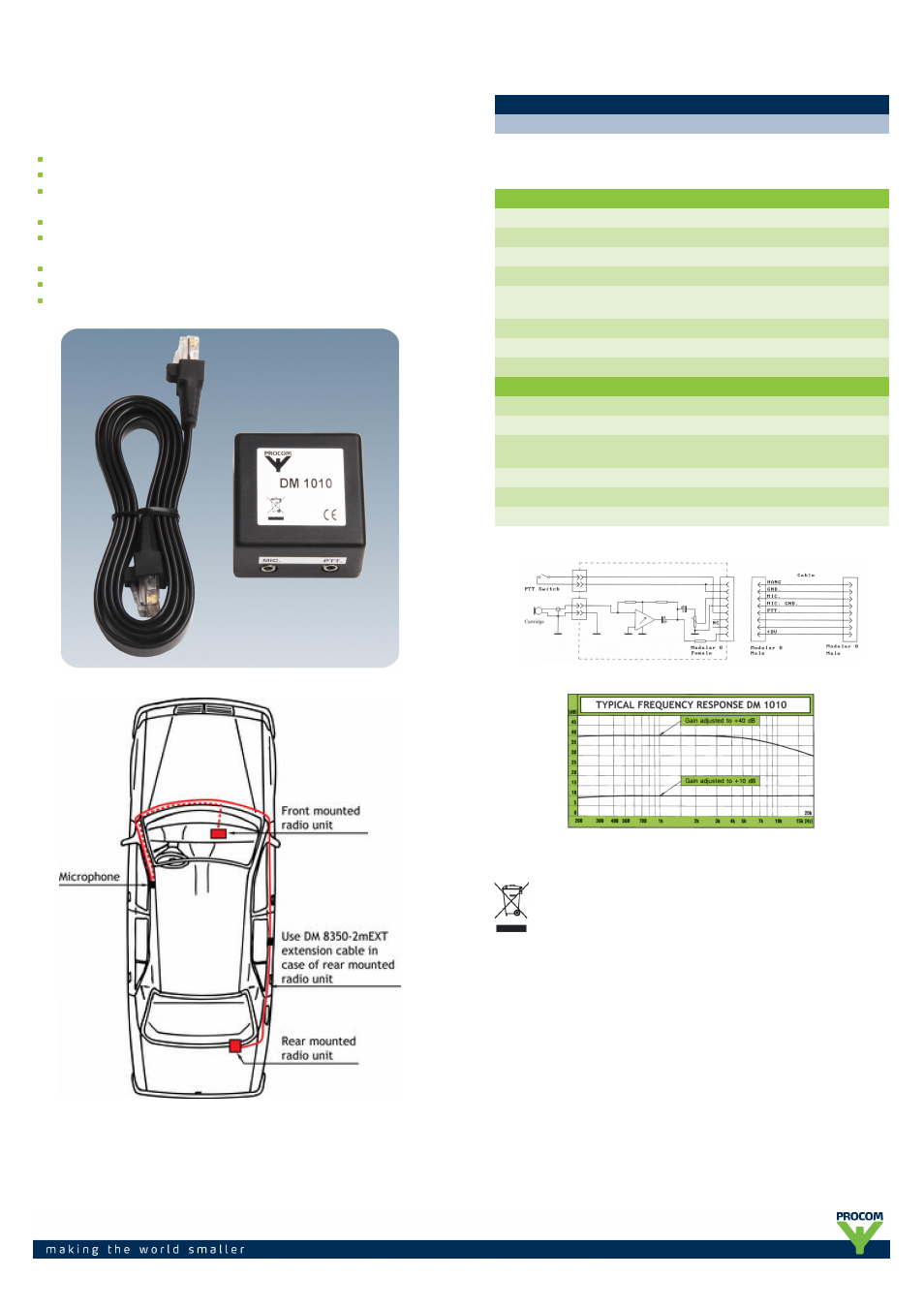

Hands-Free for ICOM Mobile Radios
DESCRIPTION
Amplifier for Hands-free microphone specially designed for ICOM.
Fits all ICOM mobile radios with Modular-8 microphone connector.
Complete with Modular-8 cable for direct connection to the microphone
connector.
2 pcs. 3.5 mm jacks for microphone and external PTT switch.
Fits electret condenser hands-free microphones like DM 6600 F or DM
8300 F.
Field-adjustable gain.
EMC-protected.
Powered from the microphone phantom voltage.
ORDERING DESIGNATIONS
TYPE NO.
PRODUCT NO.
DM 1010
270000072
SPECIFICATIONS
ELECTRICAL
MODEL
DM 1010
TYPE
Hands-free microphone with amplifier
IMPEDANCE
600 Ω
FREQ. RESPONSE
0.2–17 kHz (Shown in diagram below)
GAIN
30 dB, adjustable 10 → 40 dB (± 3 dB)
at 1 kHz
CARTRIDGE
Electret
SUPPLY VOLTAGE
8 VDC (from the radio)
CURRENT CONSUMPTION
Approx. 2 mA
MECHANICAL
CABLE
1-wire with 2 Modular 8 plugs
CONNECTORS
Modular 8 plug and 3.5 mm jacks
TEMP. RANGE
Operating: -30° C → +70° C
Storage: -40° C → +80° C
MATERIALS
ABS
DIMENSIONS
30(H) x 50(W) x 50(L) mm
WEIGHT
Approx. 40 g
PROCOM A/S reserve the right to amend specifications
without prior notice.
12/11/12
