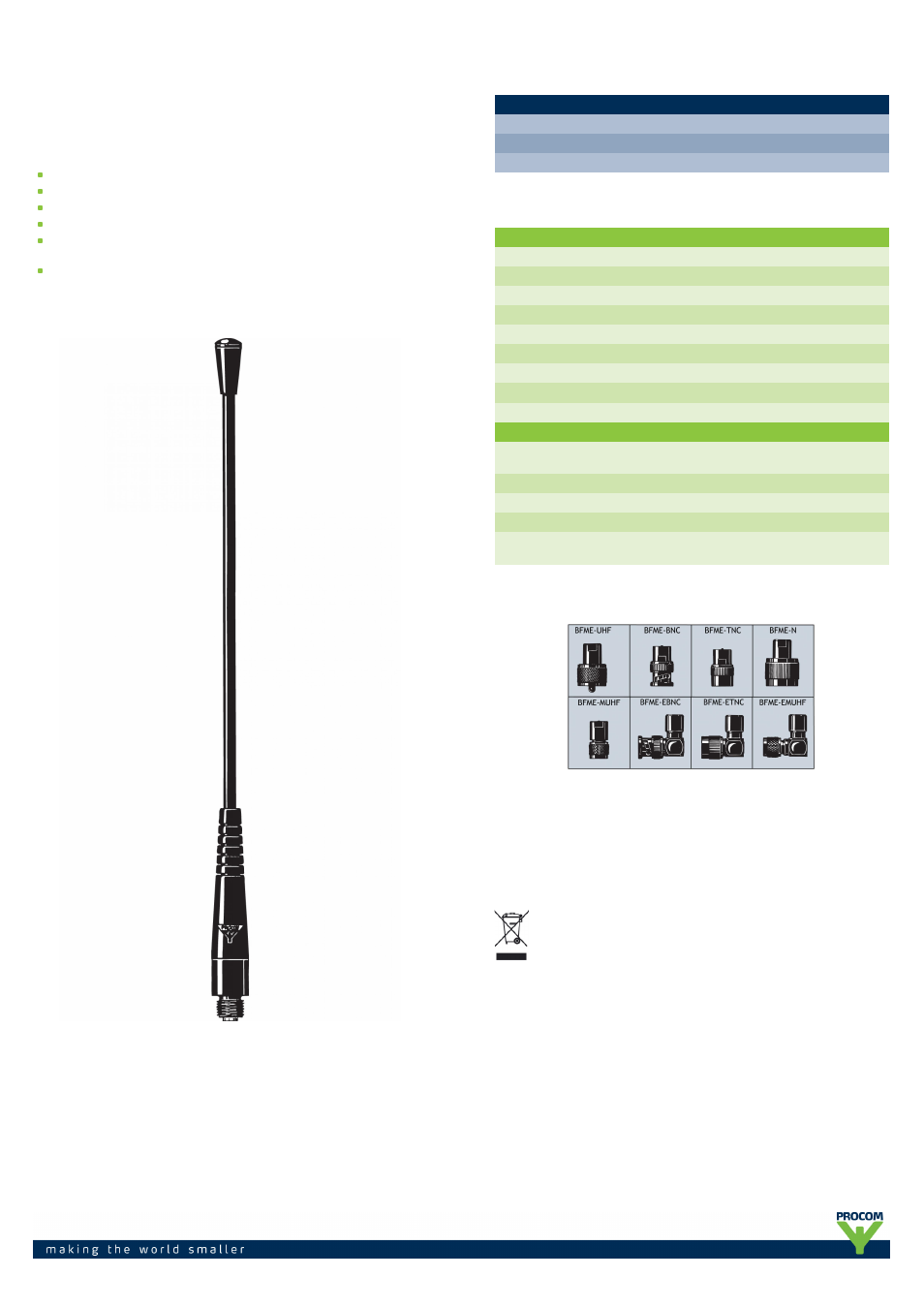

FSP 70 1/4/...-FME
“StraightFlex” Antenna with Universal FME-Connection
System for Portable Equipment in the 70 cm Band
DESCRIPTION
Highly flexible, polyethylene covered StraightFlex steel wire.
Full-size ¼ λ whip.
Highest quality materials in an elegant design.
Delivered factory tuned and tested to ensure minimum SWR.
Provided with universal FME-connection system for optimum flexibility
and easily exchangeable connectors.
Designed for use with the following of Procoms line of black FME-
connectors (to be ordered separately): BFME-UHF, BFME-BNC, BFME-
TNC, BFME-N, BFME-MUHF, BFME-EBNC, BFME-ETNC and BFME-
EMUHF.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
FREQUENCY
FSP 70 1/4/s-FME
140000181
380 – 430 MHz
FSP 70 1/4/l-FME
140000184
400 – 450 MHz
FSP 70 1/4/h-FME
140000183
420 – 470 MHz
SPECIFICATIONS
ELECTRICAL
MODEL
FSP 70 1/4/...-FME
ANTENNA TYPE
¼ λ antenna for portable equipment
FREQUENCY
70 cm band covered by three models
IMPEDANCE
Nom. 50 Ω
POLARISATION
Vertical
GAIN
0 dB (equal to a ¼ λ portable antenna)
BANDWIDTH
≥ 50 MHz @ SWR ≤ 2.0
SWR
< 2 when mounted directly on portable equipment
MAX. POWER
100 W
MECHANICAL
MATERIALS
Polyethylene covered flexible steel wire
Black-chromed brass
COLOUR
Black
TOTAL HEIGHT
Approx. 200 mm (dep. on type)
WEIGHT
Approx. 15 g
CONNECTOR
FME (female) (Exchangeable BFME-connectors
to be ordered separately)
RECOMMENDED BFME-CONNECTORS
(To be ordered separately)
PLEASE NOTE
The FSP 70 1/4 is also available with SMA male connector and different
thread studs, but in this case with fixed, non-exchangeable connector (not
FME-connection system). Information on these special versions on request.
PROCOM A/S reserve the right to amend specifications
without prior notice.
