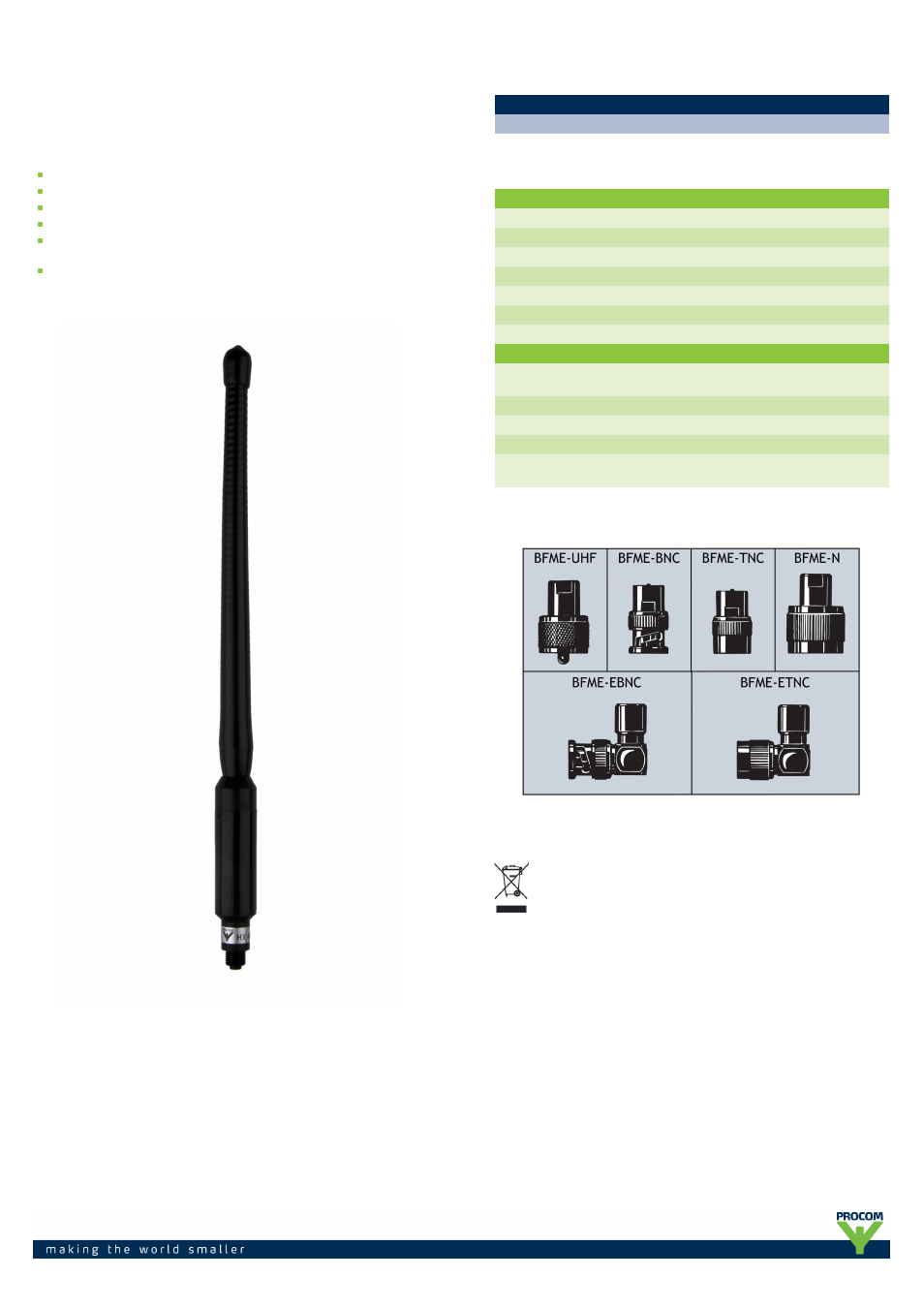

HX 41-SHT-FME
Helical Antenna with Universal FME-Connection System for
Portable Equipment in the 41 MHz Band
DESCRIPTION
Flexible, conical steel helix moulded in thermoplastic rubber.
Significant reduction of length due to the helical principle.
Optimum performance compared to physical dimensions.
Delivered factory-tuned and -tested to ensure minimum SWR.
Provided with universal FME-connection system for optimum flexibility
and easily exchangeable connectors.
Designed for use with the following of Procom's line of black FME-
connectors (to be ordered separately): BFME-UHF, BFME-BNC, BFME-
TNC, BFME-N, BFME-EBNC and BFME-ETNC.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
HX 41-SHT-FME
130001890
SPECIFICATIONS
ELECTRICAL
MODEL
HX 41-SHT-FME
ANTENNA TYPE
Shortened ¼ λ antenna for portable equipment
FREQUENCY
41 MHz
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Vertical
SWR
< 3 when mounted directly on portable equipment
MAX. POWER
10 W
MECHANICAL
MATERIALS
Steel helix moulded in thermoplastic rubber
Black-chromed brass
COLOUR
Black
TOTAL HEIGHT
Approx. 240 mm
WEIGHT
Approx. 72 g
CONNECTOR
FME-female
(Exchangeable BFME-connectors to be ordered separately)
RECOMMENDED BFME-CONNECTORS
(To be ordered separately)
PROCOM A/S reserve the right to amend specifications
without prior notice.
15/02/13
