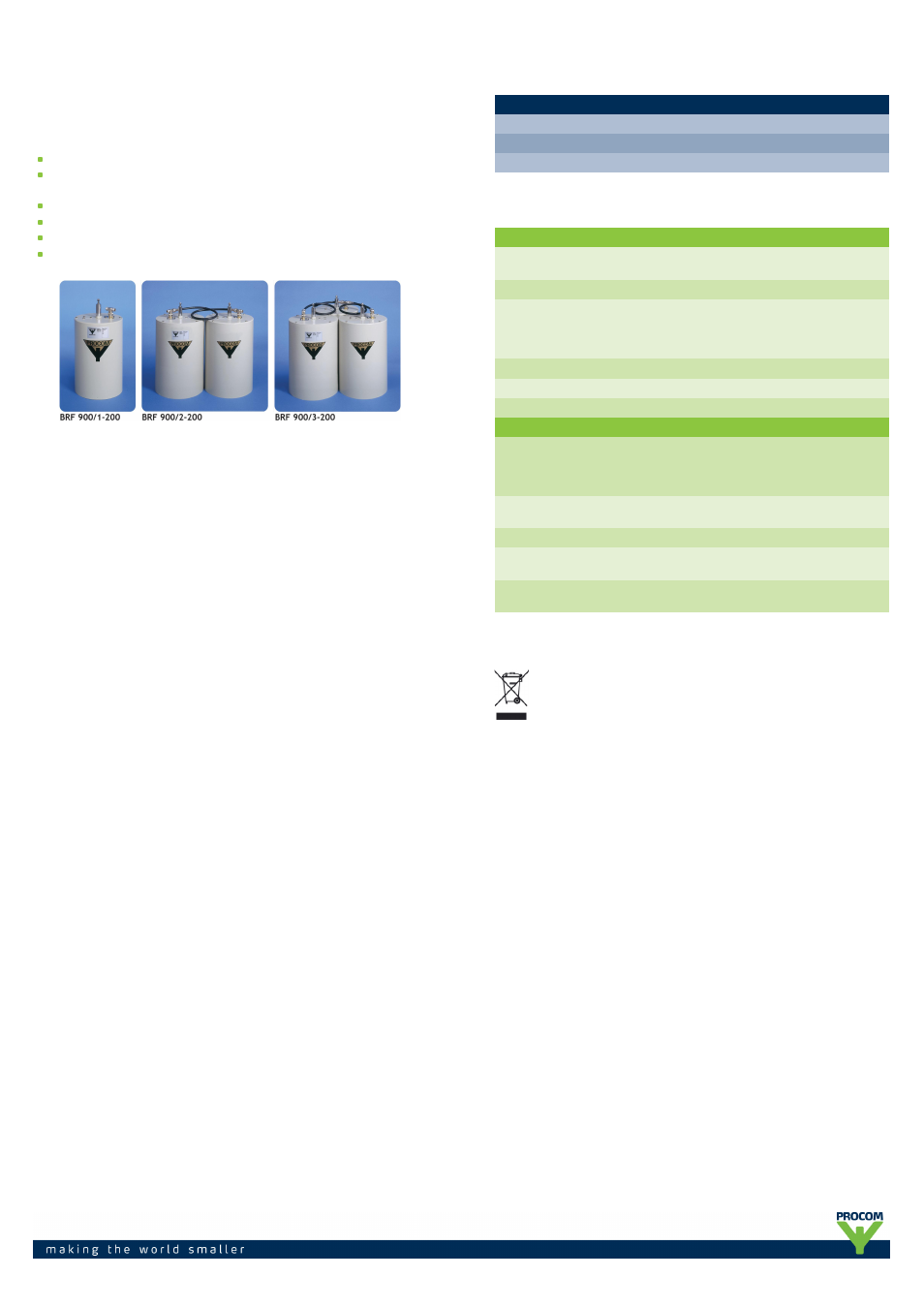

Procom BRF 900-...-200 User Manual
Brf 900

BRF 900/...-200
Band-Reject Filters for the 900 MHz Band
DESCRIPTION
High power base station band-reject filters for the 890 – 960 MHz range.
The use of large ø200 mm cavities means a high Q,
resulting in a very narrow notch bandwidth.
The large dimensions also mean a high power rating.
Unloaded Q of a single cavity is approx. 7000.
High frequency stability on temperature and power.
19” mounting brackets are available as an option.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
BRF 900/1-200
200001948
BRF 900/2-200
200001949
BRF 900/3-200
200001950
SPECIFICATIONS
ELECTRICAL
MODEL
BRF
900/1-200
BRF
900/2-200
BRF
900/3-200
FREQ. RANGE
890 - 960 MHz 890 - 960 MHz
890 - 960 MHz
MAX. INPUT
POWER
350 W @
0.5 dB IL
200 W @
1.0 dB IL
350 W @
1.0 dB IL
200 W @
2.0 dB IL
350 W @
1.5 dB IL
200 W @
3.0 dB IL
1 dB NOTCH BANDWIDTH 1 ‰ of f
c
1 ‰ of f
c
1 ‰ of f
c
IMPEDANCE
Nom. 50 Ω
Nom. 50 Ω
Nom. 50 Ω
SWR
< 1.5
< 1.5
< 1.5
MECHANICAL
TEMP.
RANGE
RH 0-90%
non-condensing
–30° C →
+60° C
–30° C →
+60° C
–30° C →
+60° C
FREQ.
STABILITY
Approx. 1.5
ppm/° C
Approx. 1.5
ppm/° C
Approx. 1.5
ppm/° C
CONNECTORS
N-female
N-female
N-female
DIMENSIONS
ø200 x
200 mm
L:200 x W:400
x H:200 mm
L:200 x W:600
x H:200 mm
WEIGHT
Approx.
0.9 kg
Approx.
2 kg
Approx.
3.3 kg
PROCOM A/S reserve the right to amend specifications
without prior notice.
08/04/11
