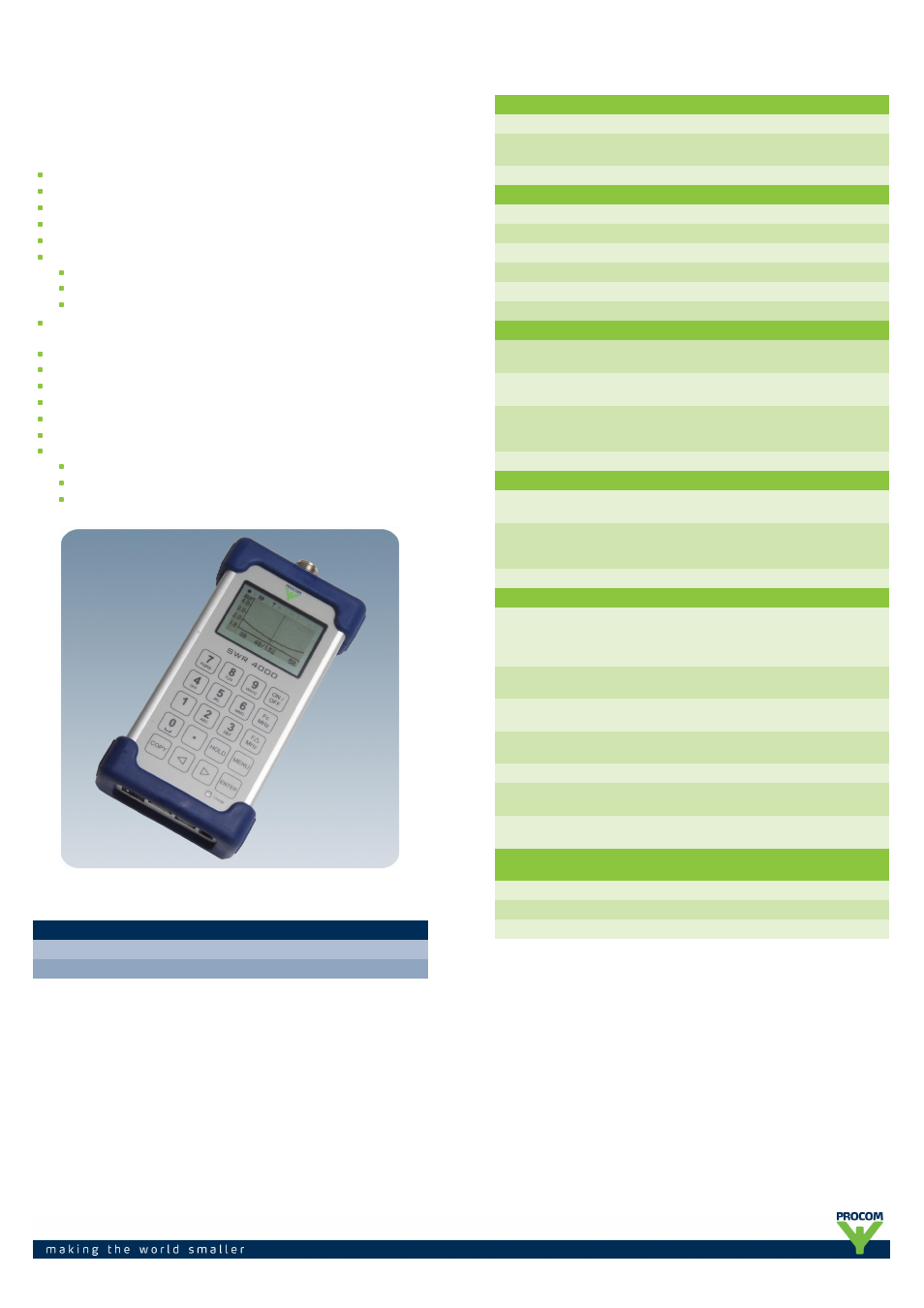

SWR 4000
Compact Wide-Band SWR Analyzer with built-in Signal
Generator, Graphical Display and Data Storage System.
DESCRIPTION
Compact, hand-held all-in-one SWR analyzer.
Light Weight and Rugged Design.
Covers 30 - 2700 MHz.
Instrument Setup by Multilayer Menu System.
Swept SWR or Return Loss measurement.
Easy to use:
Enter centre frequency and span.
Adjust cursor line to analyze measurement.
Press HOLD and COPY to store measured results.
USB interface (A-type) for storage of display contents onto memory
stick.
Date and Time Stamp on data by built-in Real Time Clock.
Bright LCD display ensures use in direct sunlight.
Back Light for use in dark areas.
Built-in rechargeable battery.
Auto Power Off saves battery power.
230V AC adapter included for charging of the battery.
Accessory Kit available containing:
Soft carrying bag.
Standard coaxial adapter kit.
Car charger for cigarette lighter connector.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
SWR 4000 240000043
Accessory Kit 240000044
SPECIFICATIONS
ELECTRICAL
MODEL SWR 4000
APPLICATION Measurement of SWR or Return Loss in 50 Ω coaxial
transmission lines
IMPEDANCE Nom. 50 Ω
FREQUENCY
RANGE 30 – 2700 MHz
CENTRE Set by user
SPAN 0 to 2670 MHz, set by user
SWEEP 101 points
RESOLUTION Down to 20 kHz
ACCURACY 50 ppm
MEASUREMENT
RANGE SWR: 1.0 to 9.9
Return Loss: 0 to -30 dB
CURSOR
RESOLUTION
3 digits
ACCURACY
(SWR 1.0-2.0)
30 - 1000 MHz: ±5 %
1000 - 1600 MHz: ±10 %
1600 - 2700 MHz: ±15 %
CALIBRATION Factory made, stored in EEPROM
TEST PORT
GENERATOR
OUTPUT
Approx. –4 dBm
MAX.
ACCIDENTAL
INPUT
+20 dBm (100 mW)
RF CONNECTOR N-female
OPERATING
ON/OFF
BUTTON
Switches ON the instrument. The instrument starts in
sweep mode and runs for the auto power-off period when
no other buttons are pushed. Switches OFF the instrument
when re-pushed
FC MHz BUTTON Activates centre frequency input by the numeric keys.
ENTER key activates the entry
FΔ MHz BUTTON Activates frequency span input by the numeric keys.
ENTER key activates the entry
ARROW
BUTTONS
Controls cursor line position. Display indicates cursor
frequency and measured value (when selected)
HOLD BUTTON Holds/starts the sweep
COPY BUTTON Writes the screen contents in HOLD mode to the USB
device in .bmp format or .xml format (menu selectable)
MENU BUTTON Activates the setup menu. ENTER key activates the entry
and return to operate mode
INTERFACE
PORTS
USB (A type) For USB Memory Stick
USB (B type) For serial PC communication (future use)
RS232 (mini DIN) For factory use only
