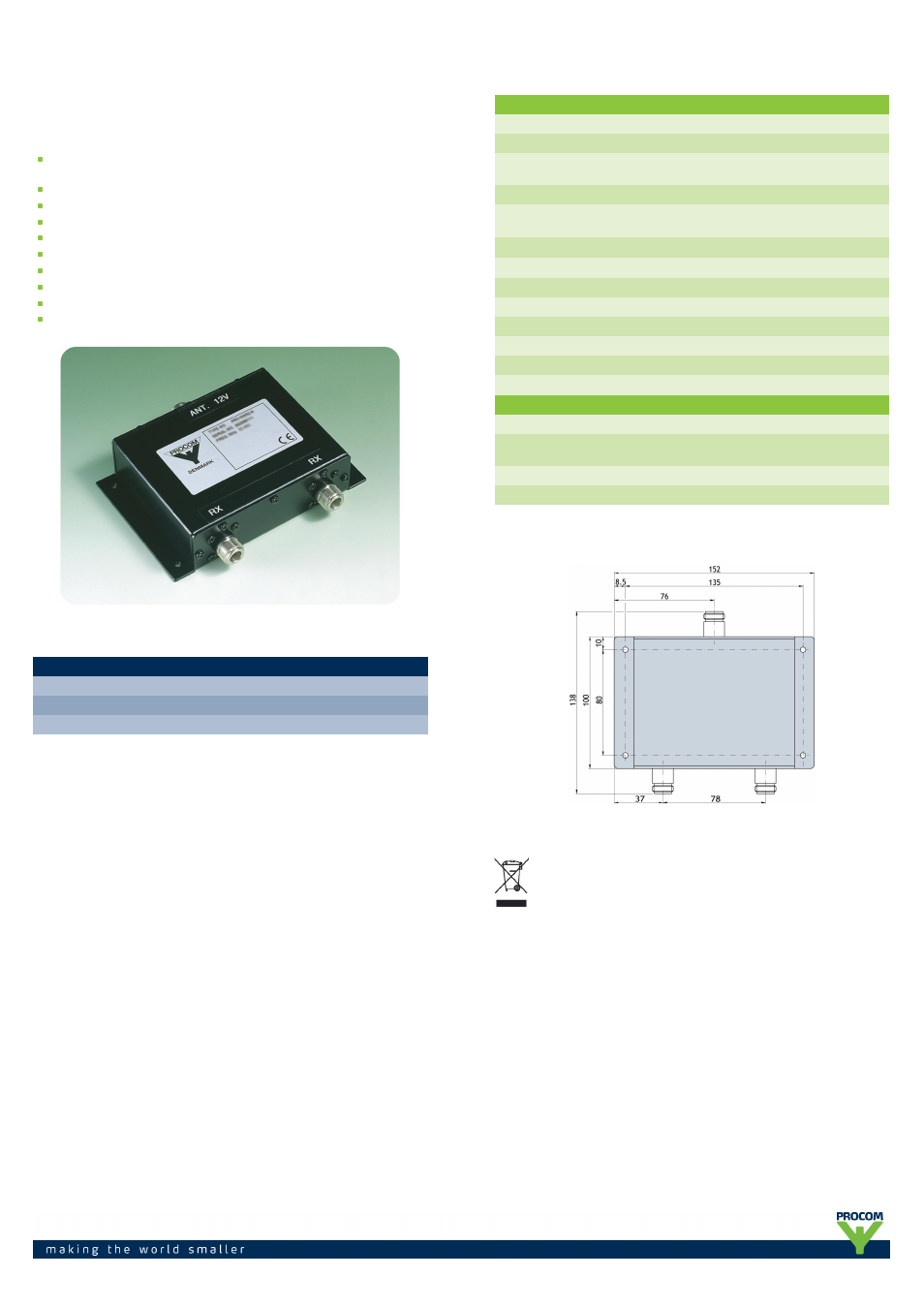

Procom PRO-mar2-n User Manual
Pro-mar2-n

PRO-MAR2-N
Miniature 2-Channel Shortwave Receiver Multicoupler
DESCRIPTION
Active wideband receiver multicoupler for the LF, MF, HF and
low VHF bands.
For use where two receivers have to share the same antenna.
Wide frequency range: Covers 10 kHz – 108 MHz.
High isolation between the two receiver outputs.
Amplifier built in to compensate for loss in multicoupler network.
Adjustable gain.
High IP2 and IP3.
Low amplifier noise figure.
Wide supply voltage range.
N-, BNC- or TNC-female connectors on all ports.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
PRO-MAR2-N
210001583
PRO-MAR2-BNC
210001584
PRO-MAR2-TNC
210001585
SPECIFICATIONS
ELECTRICAL
MODEL
PRO-MAR2-N
FREQUENCY RANGE
10 kHz - 108 MHz
GAIN INPUT TO ALL
OUTPUTS
Adjustable from < -8 dB to > +2 dB
GAIN FLATNESS
Better than ±1 dB
NF (AMPLIFIER)
< 5.5 dB @ 10 MHz,
< 4.5 dB @ 108 MHz
P
1dB
> +6 dBm (@ gain = max.)
OIP
2
> +29 dBm (@ gain = max.)
OIP
3
> +17 dBm (@ gain = max.)
ISOLATION BETWEEN OUTPUTS
Min. 17 dB, typ. > 20 dB
ISOLATION, OUTPUT TO INPUT
> 25 dB
INPUT SWR
< 2.0
OUTPUT SWR
< 1.5
SUPPLY VOLTAGE/CURRENT
11 to 25 V 90 mA
MECHANICAL
CONNECTORS
N-, BNC- or TNC-female
DIMENSIONS
(L x W x H)
138 (incl. connectors) x
152 (incl. flanges) x 35 mm
WEIGHT
Approx. 400 g
MOUNTING
ø4 mm (four holes)
MOUNTING DETAILS
PROCOM A/S reserve the right to amend specifications
without prior notice.
23/10/12
