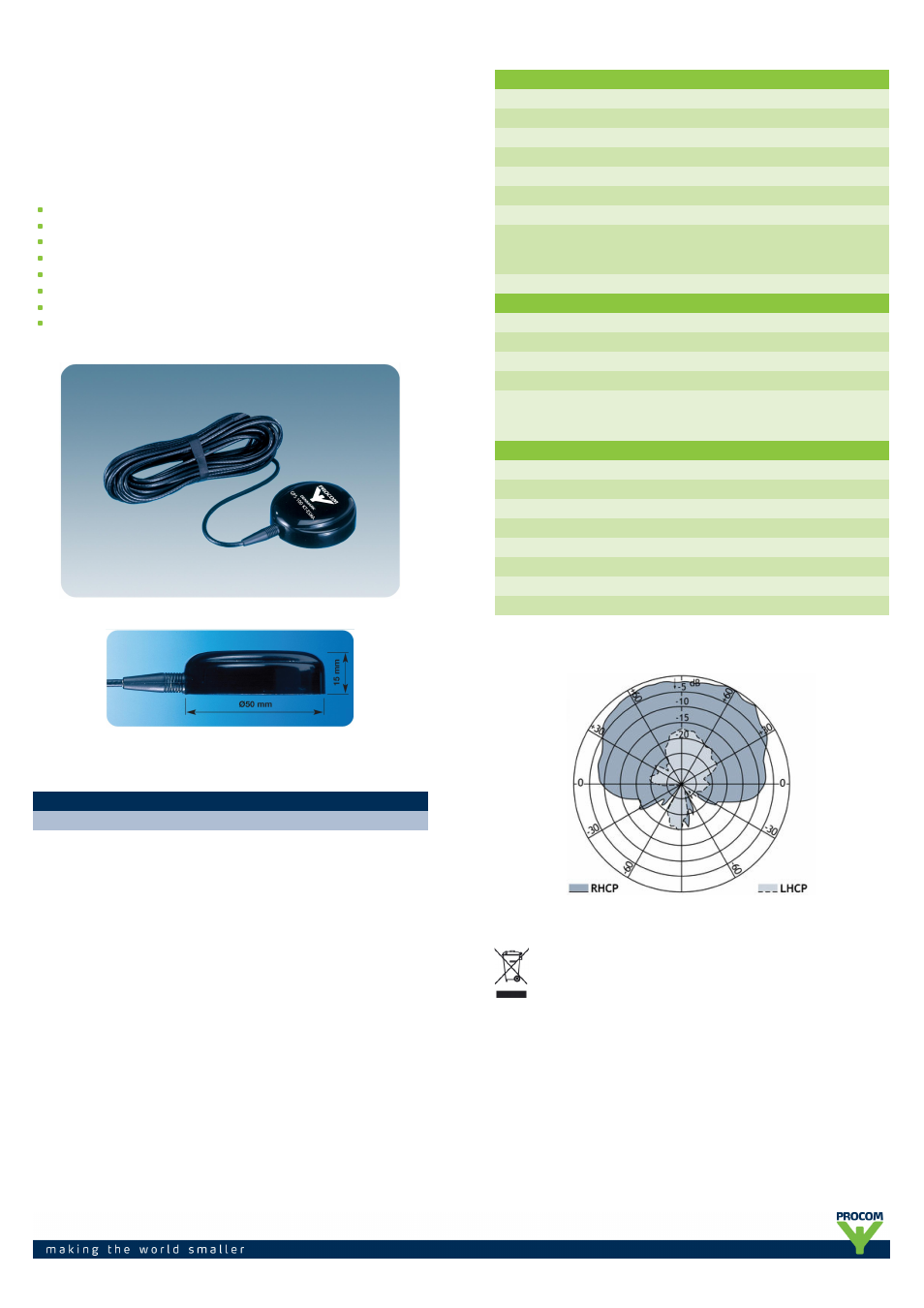

Procom GPS-100-kt-sma User Manual
Gps 100 kt-sma

GPS 100 KT-SMA
Active Receiving Antenna for the 1575 MHz NAVSTAR
GPS Satellite Navigational System for Landmobile and
Maritime Use
Custom designed
DESCRIPTION
Flat-pack GPS-antenna for temporary or fixed installations.
Full hemispherical coverage.
Built-in high gain, low noise amplifier.
Right-hand circular polarization (RHCP).
Magnet mount – ideal for mounting on e.g. roof of car or vessel.
5 V supply voltage (3 V respectively 12 V available on request).
DC supply via RF-connector.
Permanently attached 3.5 m RG 174 coaxial cable terminated with SMA
(male) connector.
Do not use sealer on rubber gasket or other places.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
GPS 100 KT-SMA
112000047
SPECIFICATIONS
ELECTRICAL GENERAL SPECIFICATIONS
MODEL
GPS 100 KT-SMA
ANTENNA TYPE
Active patch antenna
FREQUENCY
1575 MHz
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Circular right-hand
COVERAGE
Hemispherical
GAIN (in axial direction)
27 dBi (typ.)
CROSS-POLARIZATION
ATT.
> 10 dB (typ.)
SELECTIVITY
> 45 dB down at ± 45 MHz
BUILT-IN AMPLIFIER
GAIN
> 26 dB (typ.)
NOISE FIGURE
≤ 3 dB (typ.)
SWR (output)
≤ 2.0
SUPPLY VOLTAGE
5 ± 0.5 VDC
CURRENT
CONSUMPTION
Approx. 25 mA
MECHANICAL
MATERIALS
Aluminium and ABS
ANTENNA COLOUR
Black
TEMP. RANGE
-35° C →+75° C
CONNECTOR
SMA-male
CABLE
3.5 m RG 174
HEIGHT
15 mm
WIDTH/LENGTH
ø50 mm
WEIGHT
Approx. 130 g
VERTICAL RADIATION PATTERN
PROCOM A/S reserve the right to amend specifications
without prior notice.
06/02/12
